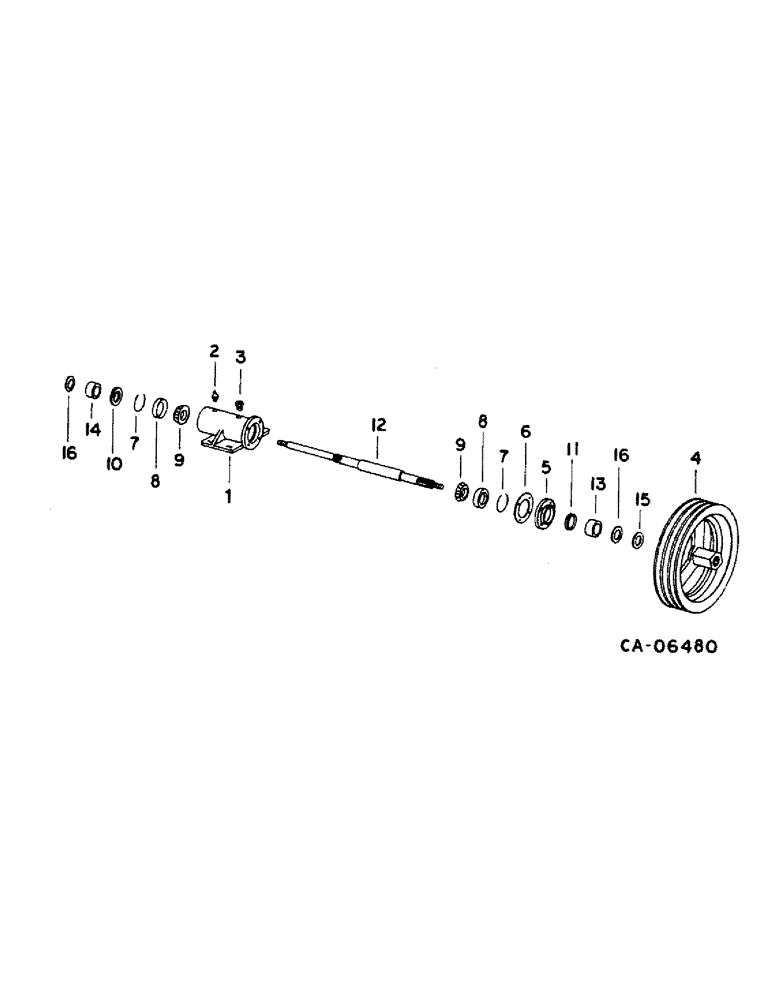

Запчасти Case IH 1460 (07-20) - DRIVE TRAIN, JACKSHAFT BEARING BLOCK, FOR USE WITH DISCHARGE BEATER Drive Train

1

189418C1

BLOCK

jackshaft bearing, Serial Range: -23400

1шт.

1

181369C1

BEARING HOUSING

BLOCK, jackshaft bearing, Start Serial: 23401

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

VALVE ASSY, bearing block breather

1шт.

4

191452C2

PULLEY

jackshaft driven, 14.75 in. OD

1шт.

5

189419C1

FLANGE,2.4788" ID x 4.5" OD x 1.3"

HUB, rear bearing

1шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 type 8

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

156229C1

SHIM,76.45mm ID x 111.25mm OD x 0.13mm Thk

Bearing Hub 0.005" Thk

5шт.

6

188183C1

SHIM,0.007" Thk

Bearing Hub 0.007" Thk

2шт.

6

188184C1

SHIM,0.010" Thk

Bearing Hub 0.010" Thk

2шт.

7

378691R1

RING

jackshaft brg snap

2шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

BEARING, jackshaft cone

2шт.

9

61801C1

BEARING CUP,63mm OD x 13.5mm W

BEARING, jackshaft cup

2шт.

10

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

Jackshaft Bearing Hub Front, With Shoulder, Also requires bushing, 188930C1 1.875" ID x 2.503" OD x .62, Serial Range: -22048

1шт.

10

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

Jackshaft Bearing Hub Front, With Shoulder 1.875" ID x 2.503" OD x .62, Start Serial: 22049

1шт.

11

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Jackshaft Bearing Hub Rear 1.752" ID x 2.503" OD x .689

1шт.

12

1308505C1

SHAFT

separator drive, replaces shaft, 191565C2 by also ordering two nuts, 9413986 and two washers, 25847R1

1шт.

9413986

LOCK NUT,1"-8, GC

NUT, 1 phc p/t lock type 8

1шт.

25847R1

WASHER

1.062 x 2.000 x .209 hdn

1шт.

13

191518C2

SPACER

BUSHING, jackshaft rear

1шт.

14

188930C1

RING,38.05mm ID x 57.15mm OD x 27mm L

BUSHING, jackshaft front, also required seal 188931C1, Serial Range: -22048

1шт.

14

188930C1

RING,38.05mm ID x 57.15mm OD x 27mm L

BUSHING, jackshaft front, Start Serial: 22049

1шт.

15

162678C1

WASHER,1 1/2" ID x 2" OD x .060" Thk

Jackshaft, Hard (or as required) 1 1/2" ID x 2" OD x .060" Thk

5шт.

16

160191C2

WASHER

jackshaft 1.5 x 2.0 x .187 hard, not used with bushing 188930C1 at this location only, Serial Range: -22048

1шт.
