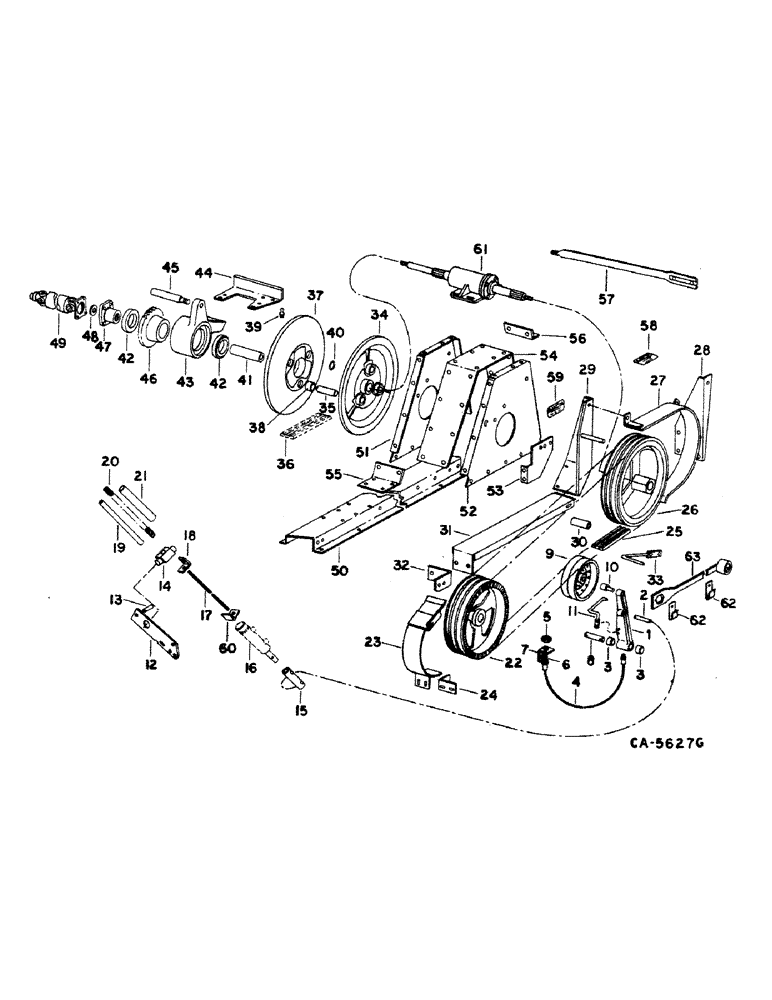

Запчасти Case IH 1460 (07-17) - DRIVE TRAIN, SEPARATOR DRIVE Drive Train

1

195457C92

LEVER

ASSY, drive belt clutch, includes Ref. nos. 2 and 3

1шт.

2

195459C1

PIN

drive belt clutch lever

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

3

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

drive belt clutch lever, Serial Range: -23636

2шт.

3

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

drive belt clutch lever, Start Serial: 23637

2шт.

4

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, ,Clutch Lever Lube 0.14" ID x 22.00", Serial Range: -23636

1шт.

5

581873R1

TUBE NUT,4.8 mm Length

clutch lever lub hose, Serial Range: -23636

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str-lub, Serial Range: -23636

1шт.

7

196518C1

SUPPORT TUBE

SUPPORT, clutch lever hose, Serial Range: -23636

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

8

1315229C2

PIN,25.4mm OD x 135mm L

separator clutch arm, replaces 191591C1

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

9

174757C1

PULLEY

separator belt idler, 8 in. OD

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

drive belt idler pulley

1шт.

11

193284C1

ROD

clutch pulley belt guide

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

194220C1

BAR

cylinder anchor

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

13

196676C1

SPACER

cylinder anchor bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

195436C1

PIVOT ASSY.

PIVOT, separator drive arm, Serial Range: -1500

1шт.

14

186747C1

PIVOT

separator drive arm, Start Serial: 1501

1шт.

15

195432C1

TUBE,25.4 mm ID, 34.92 mm OD

BUSHING, cylinder extension

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.781 pln clevis

1шт.

16

CYLINDER ASSY, separator clutch, refer to group 10 under feeder and separator clutch cylinder diagram

1шт.

17

195433C1

ROD

ASSY, separator drive tightner, Serial Range: -1500

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

17

1303058C1

ROD

separator drive tightner replaces 186743C1, Start Serial: 1501

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

21759R1

WASHER

.656 x 2.000 x .105

1шт.

18

186748C1

BRACKET

ANGLE, drive tightner rod

1шт.

19

191593C1

TUBE

drive tightner inner, Serial Range: -1500

1шт.

19

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

drive tightner inner, Start Serial: 1501

1шт.

20

PO121

SPRING

belt tightner rod, Serial Range: -1500

1шт.

20

186745C1

SPRING

belt tightner rod, Start Serial: 1501

1шт.

21

194219C1

TUBE

drive tightner outer, Serial Range: -1500

1шт.

21

186746C1

TUBE

drive tightner outer, Start Serial: 1501

1шт.

22

191461C1

PULLEY,110mm OD

separator drive, 11 in. OD

1шт.

23

191968C1

SHIELD

ASSY, drive pulley, Serial Range: -22966

1шт.

23

1308774C1

GUARD ASSY.

SHIELD ASSY, drive pulley, Start Serial: 22967

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

24

191974C1

ANGLE

separator drive belt shield, Serial Range: -22966

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

25

191241C1

BELT

- Separator drive, 130 in. OC

1шт.

26

PULLEY, separator jackshaft driven, refer to this group under jackshaft bearing block or straw chopper gear case

1шт.

27

185395C91

SHIELD

ASSY, driven pulley, includes Ref. no. 58

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

28

194735C1

SUPPORT

belt guide outer, Serial Range: -23400

1шт.

28

181168C1

SUPPORT

belt guide outer, for combines, Start Serial: 23401

1шт.

28

181168C1

SUPPORT

belt guide outer,w/straw chopper, Serial Range: -23400

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

29

194731C1

SUPPORT

ASSY, drive belt guide, Serial Range: -23400

1шт.

29

181169C1

SUPPORT ASSY.

SUPPORT ASSY, drive belt guide, for combines, Start Serial: 23401

1шт.

29

181169C1

SUPPORT ASSY.

SUPPORT ASSY, drive belt guide, w/straw chopper, Serial Range: -23400

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

30

HOSE, separator channel, use 4.5 in. of 1/2 in. hose from bulk stock marked 526602R1

1шт.

31

191961C1

SUPPORT

drive belt guide

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

32

193686C1

ANGLE

belt guide channel support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

33

194901C1

ROD

separator clutch belt support

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

34

193622C92

PULLEY ASSY.

PULLEY ASSY, rotor drive stationary, 17.5 in. OD, includes Ref. no. 35

1шт.

35

191544C2

PIN,28.48mm OD x 127mm L

stationary drive pulley

3шт.

36

BELT, rotor variable drive, refer to group 21 under rotor drive

1шт.

37

193620C92

PULLEY ASSY.

PULLEY ASSY, rotor drive variable, 17.5 in. OD, includes Ref. no. 38

1шт.

38

194665C1

BUSHING

variable drive pulley

3шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 str self tap

2шт.

40

382432R1

O-RING,1.984" ID x 0.139" Width

RING, rotor drive pulley

2шт.

41

191549C2

SLEEVE

rotor jackshaft

1шт.

42

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

BEARING, jackshaft thrust

2шт.

43

194394C1

HUB

FITTING, variable pulley female

1шт.

44

188309C2

SUPPORT

variable pulley limit switch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

45

194496C2

LARGE PIN

STUD, variable stop

1шт.

280954

NUT,3/4"-10, G5

1шт.

46

194464C2

SPROCKET

variable pulley male, 25T

1шт.

47

191542C2

SPLINED COUPLING,12T

COUPLING, universal joint

1шт.

48

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

separator jackshaft

1шт.

49

191595C91

JOINT ASSY.

JOINT ASSY, universal drive

1шт.

1300502C1

KIT

JOURNAL AND BEARING KIT ASSY

1шт.

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

2шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

50

194168C1

SUPPORT

ASSY, jackshaft, Serial Range: -23400

1шт.

50

181333C1

SUPPORT ASSY.

SUPPORT ASSY, jackshaft, for combines, Start Serial: 23401

1шт.

50

181333C1

SUPPORT ASSY.

SUPPORT ASSY, jackshaft w/straw chopper, Serial Range: -23400

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

51

1303282C92

SUPPORT ASSY.

SUPPORT, separator jackshaft LH, Serial Range: -23400

1шт.

51

181165C1

SUPPORT ASSY.

SUPPORT, separator jackshaft LH, for combine, Start Serial: 23401

1шт.

51

181165C1

SUPPORT ASSY.

SUPPORT, separator jackshaft LH w/straw chopper, Serial Range: -23400

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

52

193956C5

SUPPORT ASSY.

SUPPORT, separator jackshaft RH, Serial Range: -23400

1шт.

52

181166C1

SUPPORT

separator jackshaft RH, for combine, Start Serial: 23401

1шт.

52

181166C1

SUPPORT

separator jackshaft RH, w/straw chopper, Serial Range: -23400

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

53

183153C91

SUPPORT

jackshaft bottom, includes Ref. no. 59

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

54

193957C2

SUPPORT

jackshaft top, Serial Range: -23400

1шт.

54

181167C1

SUPPORT

jackshaft top, for combines, Start Serial: 23401

1шт.

54

181167C1

SUPPORT

jackshaft top w/ straw chopper, Serial Range: -23400

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

55

194353C1

SUPPORT

separator jackshaft, Serial Range: -23400

1шт.

55

181164C1

SUPPORT

separator jackshaft, for combines, Start Serial: 23401

1шт.

55

181164C1

SUPPORT

separator jackshaft w/straw chopper, Serial Range: -23400

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

56

194517C2

ANGLE

jackshaft support rear, Serial Range: -23400

1шт.

56

181172C1

SUPPORT

ANGLE, jackshaft support rear, for combines, Start Serial: 23401

1шт.

56

181172C1

SUPPORT

ANGLE, jackshaft support rear w/straw chopper, Serial Range: -23400

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

57

191949C1

ROD

separator jackshaft support, Serial Range: -23400

1шт.

57

181171C1

ROD

separator jackshaft support, for combines, Start Serial: 23401

1шт.

57

181171C1

ROD

separator jackshaft support w/straw chopper (Replaces 181171R1), Serial Range: -23400

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

121358

YOKE

5/8-NF type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25742R1

WASHER

.531 x .750 x .105

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

58

188200C1

PRODUCT GRAPHIC

caution, engine compartment

1шт.

59

188186C1

PRODUCT GRAPHIC

caution, two speed gear case

1шт.

60

186749C1

BRACKET

ANGLE, separator drive tightner rod, Start Serial: 1501

1шт.

18556R1

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

61

REFER TO THIS GROUP UNDER, jackshaft bearing block or straw chopper gear case

1шт.

62

193332C1

CLIP

rocking wrench

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

63

1307617C1

SPECIAL WRENCH

WRENCH, rocking, replaces 184730C1

1шт.

180075C91

STRIPPER PACKAGE

PACKAGE, separator drive idler, consists of, Serial Range: -1500

1шт.

1303058C1

ROD

1шт.

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

1шт.

186745C1

SPRING

1шт.

186746C1

TUBE

1шт.

186747C1

PIVOT

1шт.

186748C1

BRACKET

ANGLE

1шт.

186749C1

BRACKET

ANGLE

1шт.

HARDWARE AND INSTRUCTIONS

1шт.
