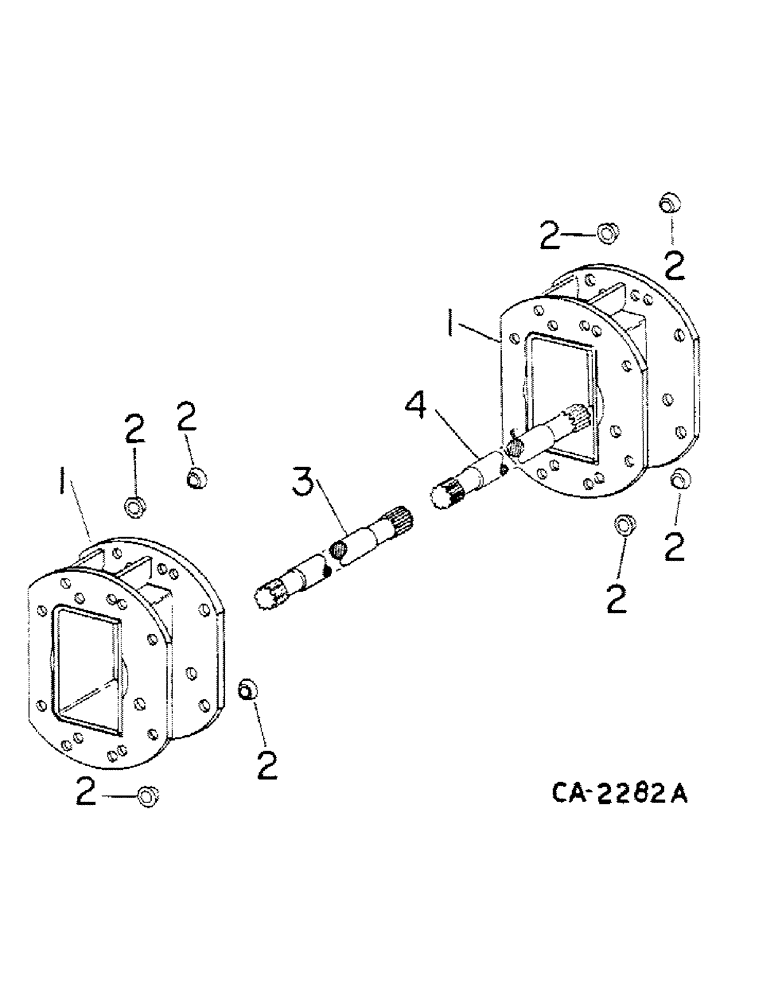

Запчасти Case IH 1460 (07-10) - DRIVE TRAIN, MAIN AXLE EXTENSION Drive Train

1

177345C2

EXTENSION

ASSY, drive axle

2шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

1шт.

131167

WASHER, LOCK,3/4"

3/4"

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

DOWEL, extension end plate

8шт.

3

193993C1

SHAFT

LH axle drive, Serial Range: -32000

1шт.

P/N 193993C1 is 35.77"

1шт.

3

184223C1

SHAFT

LH axle drive, Start Serial: 32001

1шт.

184223C1 is 33.3" (846 mm)

1шт.

4

193994C1

SHAFT

RH axle drive, Serial Range: -32000

1шт.

P/N 193994C1 is 22.6".

1шт.

4

184224C1

SHAFT

RH axle drive, Start Serial: 32001

1шт.

184224C1 is 20.18"

1шт.
