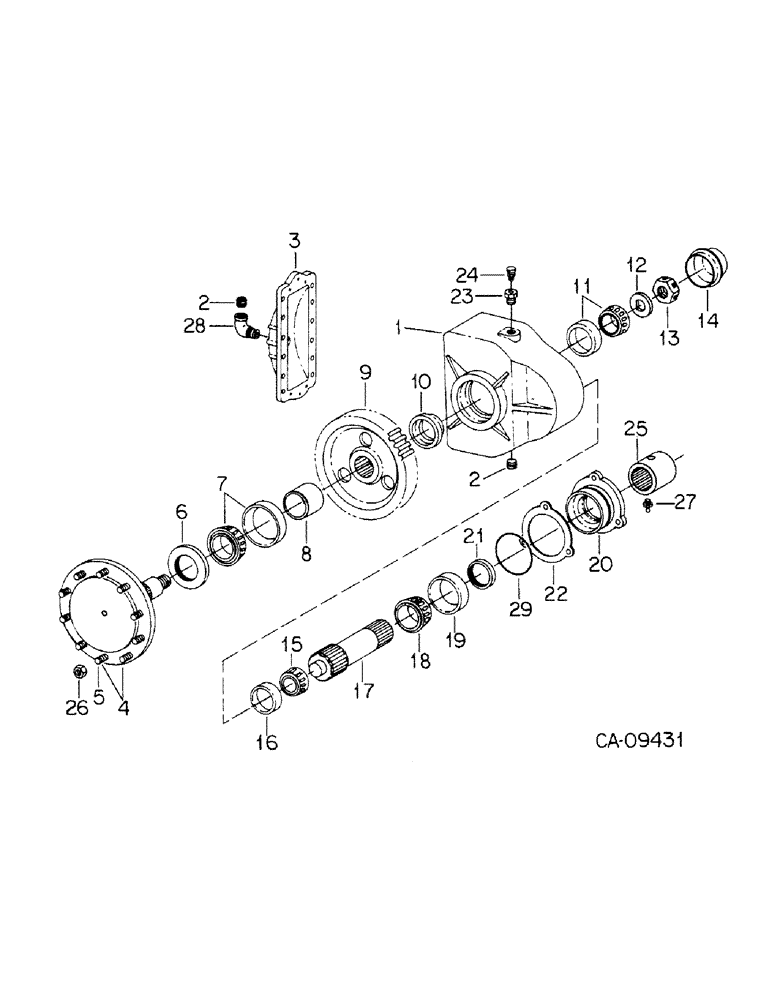

Запчасти Case IH 1460 (07-07) - DRIVE TRAIN, FINAL DRIVE, ONE PIECE TYPE DRIVE SHAFT Drive Train

92769C93

DRIVE ASSY.

DRIVE ASSY, final, includes Ref. nos 1 thru 23

2шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 type 8

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

1

86851C2

HOUSING

final drive

2шт.

2

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 pln sq/skt auto pipe

6шт.

3

86839C2

COVER

final drive housing

2шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 phc hdn

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

4

1315484C91

SHAFT

ASSY, one piece final drive, includes Ref. no. 5

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

20шт.

6

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

outer bearing cage

2шт.

7

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

ASSY, shaft outer

2шт.

8

401906R1

SPACER

gear outer

2шт.

9

401907R1

GEAR

drive, 66T

2шт.

10

401908R2

SPACER

final drive

2шт.

Ref.10, SB 5029 Matched Final Drive Bearing Assy..

1шт.

11

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

ASSY, shaft inner

2шт.

12

403896R1

WASHER

WASHER, final drive

2шт.

13

147030R1

SLOTTED NUT

shaft

2шт.

17233R1

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

2шт.

14

403895R1

COVER

main shaft

2шт.

15

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

BEARING ASSY, shaft outer cone

2шт.

16

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

BEARING, shaft outer cup

2шт.

17

401912R1

SHAFT

pinion

2шт.

18

M53320

BEARING ASSY

inner cone

2шт.

19

50320R1

BEARING CUP

inner cup

2шт.

20

86845C1

CAGE

pinion inner bearing

2шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8 x 1-1/4 phc type 8

1шт.

21

401914R91

OIL SEAL,54.28mm ID x 85.22mm OD x 11.13mm Thk

bearing cage oil

2шт.

22

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

pinion inner brg, 0.08mm

1шт.

22

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

pinion inner brg, 0.13mm

1шт.

22

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

pinion inner brg, 0.18mm

1шт.

22

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

pinion inner brg, 0.76mm

1шт.

23

21276R1

ADAPTER,3/4" NPT Male x 1/8" NPT Fem

3/4 to 1/8 pln out/h/hd pipe

2шт.

24

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY

2шт.

25

184341C1

SLEEVE

COUPLING ASSY, axle drive shaft

1шт.

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

3/8 x 3-1/2 dld type 8

1шт.

654049R1

LOCK NUT

3/8 flex lock

1шт.

21864R1

COTTER PIN

#100 roller chain "S"

1шт.

26

25632R1

NUT,3/4"-16, G8

3/4NF wheel bolt

20шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

20шт.

27

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

4шт.

28

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 pln 90 D pipe street, for rice only

2шт.

29

257642R1

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

4-1/4 x 4-1/2 class 5

2шт.
