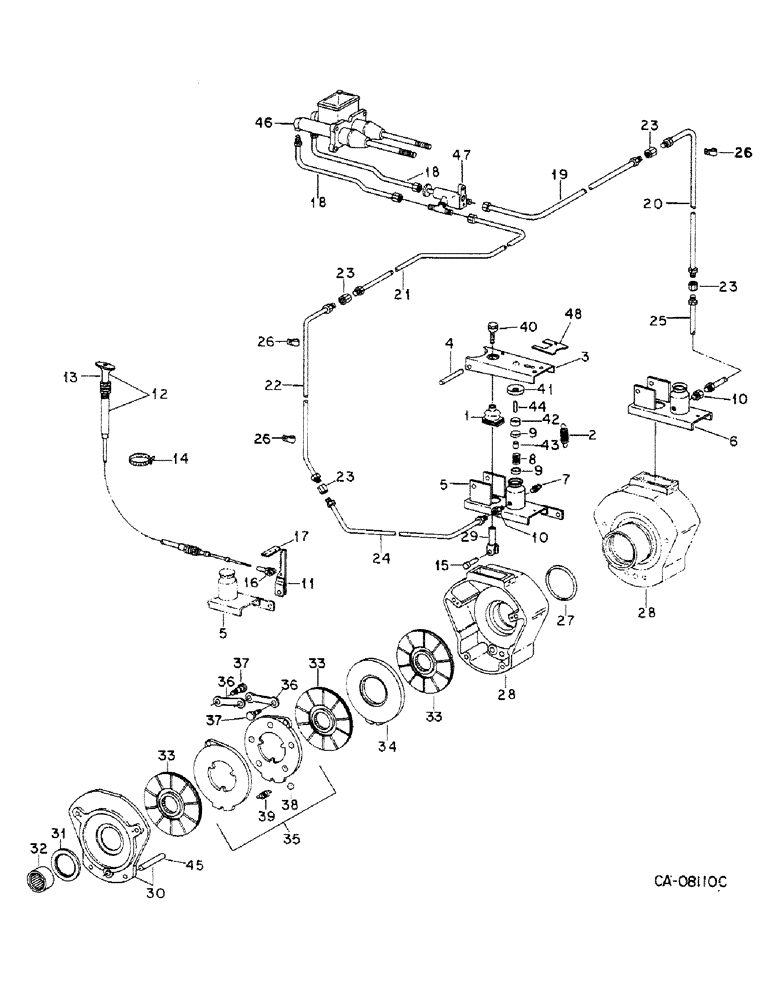

Запчасти Case IH 1460 (04-08) - BRAKE, MASTER AND PARKING BRAKE, S/N 32001 AND ABOVE (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
184321C1
COVER
BOOT, brake housing
2шт.
2
312824R1
SPRING
brake lever return
2шт.
3
196495C2
SUPPORT ASSY.
LEVER ASSY, brake
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1шт.
4
1308992C1
PIN,9.53mm OD x 102mm L
brake lever pivot
2шт.
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), 1/8" x 3/4"
1шт.
5
196487C3
SUPPORT
ACTUATOR ASSY, brake LH
1шт.
142619H
WASHER
.406 x .750 x .105
1шт.
6
196488C2
SUPPORT ASSY.
ACTUATOR ASSY, brake RH
1шт.
142619H
WASHER
.406 x .750 x .105
1шт.
7
660901R1
VALVE
brake cylinder bleeder
2шт.
8
662612R1
SPRING
brake cup
2шт.
9
51906H
CUP
brake cylinder piston
4шт.
10
442362
PIPE FITTING
CONNECTOR, 1/4 inv flared tube
1шт.
11
188797C1
SECTOR
ASSY, parking brake
1шт.
22445R1
PIN
3/8 x .812 clevis
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
12
166149C91
CABLE
ASSY, parking brake, 125 in.
1шт.
13
170273C1
HANDLE
brake control cable
1шт.
14
702093C1
CABLE TIE
TIE STRAP
5шт.
15
40545V
CLEVIS PIN,5/8" x 1 3/8"
PIN, CLEVIS, 5/8" x 1 3/8"
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
16
117824
YOKE
CLEVIS, no. 10-32 adj rod
1шт.
20286R1
SPLIT PIN/SAFETY PIN
PIN, 3/16 x 1.031 clevis
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
17
188763C1
BAR
parking brake ratchet
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
18
1301858C1
TUBE
ASSY, brake cylinder to equalizer valve
2шт.
19
1301859C1
TUBE,0.25" OD, 18.8, 3.8" Length
ASSY, RH brake upper to equalizer
1шт.
20
1301860C1
TUBE
ASSY, RH brake center
1шт.
21
1301861C1
TUBE
ASSY, LH brake, Serial Range: upper-equalizer
1шт.
22
1301587C1
TUBE
ASSY, LH brake center
1шт.
23
442336
SUPPORT TUBE
UNION, 1/4 pln inv fld tube
4шт.
24
1310853C2
HYD TUBE
TUBE ASSY, brake lower to wheel cylinder
1шт.
25
1310854C2
HYD TUBE
TUBE ASSY, RH brake lower to wheel cylinder
1шт.
26
515-2863
CLAMP,1/4", 3/8" Bolt
.25 dia znp bar closed
3шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1шт.
937875R1
SCREW,Serr, 1/4" - 20
Serr Truss Hd, 1/4"-20 x 3/4"
1шт.
27
22292R1
O-RING,4.725" ID x 5.275" OD x 0.275"
-427, 70 Duro, 4.725" ID x .275" Thk
2шт.
28
188882C92
HOUSING ASSY.
HOUSING, brake, replaces 184165C2
2шт.
14-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
Fine Thread Hex, 5/8"-18 x 1 1/2", G5
1шт.
20020R1
DOWEL,5/16" x 1"
PIN, 5/16" x 1"
1шт.
26145R1
12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"
SCREW, 12 Pt Flg, 5/8"-11 x 1 3/4"
1шт.
29
184283C2
YOKE
ASSY, brake pull
2шт.
40545V
CLEVIS PIN,5/8" x 1 3/8"
PIN, 5/8" x 1 3/8"
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
30
184330C91
CAP
COVER ASSY, brake housing, includes ref no. 45
2шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
31
401872R91
SEAL,73.03mm ID x 110.24mm OD x 11.1mm Thk
brake cover
2шт.
32
184214C1
SPLINED COUPLING
COUPLING, diff shaft dirt seal
2шт.
33
184204C2
DISC
ASSY, middle
6шт.
34
184203C1
DISC
intermediate
2шт.
35
184202C92
DISC
ASSY, actuating, includes Ref. nos. 40 thru 43
2шт.
36
1276923C1
LINK
actuating
4шт.
37
1276924C1
STUD
4шт.
25-158
JAM NUT,Jam, 1/2"-20, G5
1шт.
38
17028R1
BALL,7/8" Dia
10шт.
39
359859R1
SPRING
extension
6шт.
40
184324C1
ROD
brake pull
2шт.
NLS
NO LONGER SERVICED
7/16"-20, G5
1шт.
41
662620R1
COVER
BOOT, brake cylinder
2шт.
42
662616R1
PISTON
brake cylinder
2шт.
43
662617R1
SPACER
brake piston
2шт.
44
184325C1
PLUNGER
brake piston
2шт.
45
28333R1
DOWEL,7/8" x 6"
PIN, 7/8 x 6 hdn dowel
2шт.
46
CYLINDER ASSY, master brake, refer to this group under master brake control
1шт.
47
VALVE ASSY, equalizer, refer to this group under master brake control
1шт.
48
184282C2
BAR
brake adjust
1шт.
Выбрано товаров: 72
