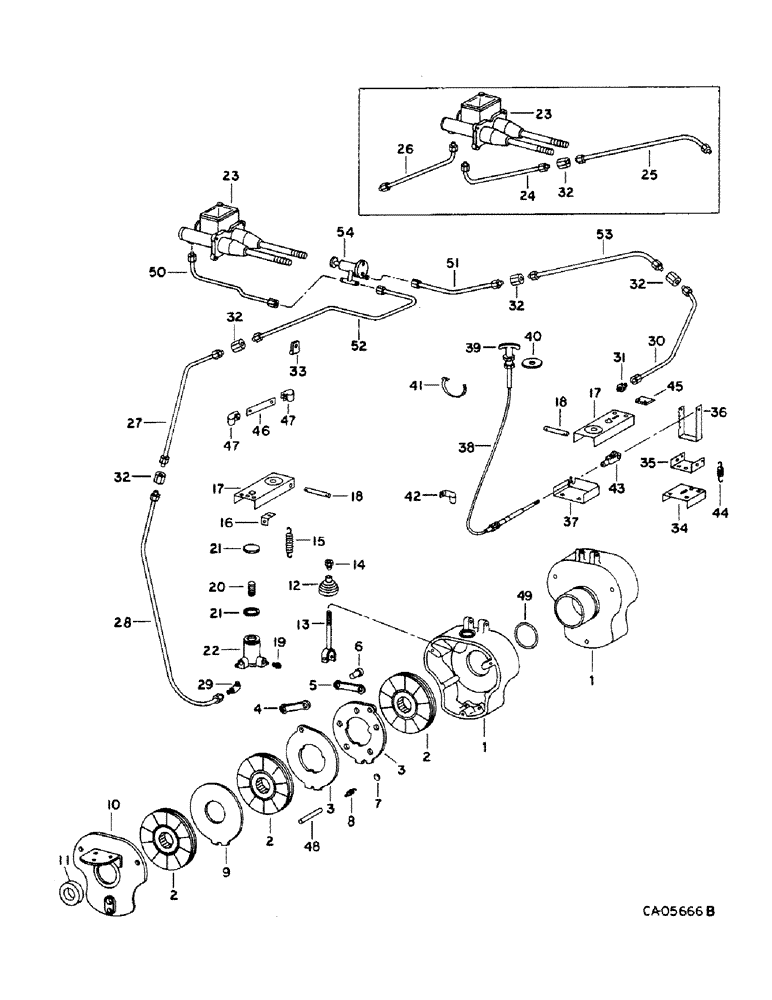

Запчасти Case IH 1460 (04-05) - BRAKE, MASTER AND PARKING BRAKES, S/N 32000 AND BELOW (5.1) - BRAKES

1

184149C1

HOUSING

brake, replaces 404088R2

2шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 pln type 5

1шт.

27434R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 phc p/t type 8

1шт.

20027R1

PIN,5/16" x 1 1/4"

5/16 x 1.250 pln hdn dowel

1шт.

2

121963C91

BRAKE DISC

DISC ASSY, middle

6шт.

3

401868R91

BRAKE DISC

DISC ASSY, actuating, includes Ref. nos. 4 thru 8

2шт.

4

369237R1

LINK

actuating, Serial Range: -2200

2шт.

4

1276923C1

LINK

actuating, Serial Range: 22001-32000

1шт.

5

369237R1

LINK

actuating, Serial Range: -22000

2шт.

5

1276923C1

LINK

actuating, Serial Range: 22001-32000

1шт.

6

369238R1

BOLT,3/8" - 24 x 1 3/8", HT

STUD, actuating, Serial Range: -22000

4шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

6

1276924C1

STUD

actuating, Serial Range: 22001-32000

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-NF jam type 5

1шт.

7

17028R1

BALL,7/8" Dia

10шт.

8

619731C1

SPRING

extension, Serial Range: -22000

6шт.

8

359859R1

SPRING

extension, Serial Range: 22001-32000

1шт.

9

401870R1

DISC

intermediate

2шт.

10

401871R11

COVER

ASSY, brake housing adapter

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

11

401872R91

SEAL,73.03mm ID x 110.24mm OD x 11.1mm Thk

brake housing adapter cover

2шт.

12

381699R1

BOOT

brake housing

2шт.

13

162323C91

ROD

ASSY, brake pull

2шт.

271506

DISC

7/16-NF type 5

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

354630R1

NUT

brake pull rod

2шт.

15

168567C1

SPRING

brake lever return

2шт.

16

179218C1

ANGLE

brake lever return spring, Serial Range: -23248

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

17

188888C1

LEVER

ASSY, brake

2шт.

18

162329C1

PIN

wheel brake lever

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

19

660901R1

VALVE

wheel brake cyl bleeder

2шт.

20

662612R1

SPRING

wheel brake cup

2шт.

21

51906H

CUP

wheel brake cyl piston rubber

4шт.

22

CYLINDER, wheel brake

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

167691C92

KIT

ASSY, wheel brake cylinder, consists of (1) boot, (2) cup 51906H, (1) cylinder, (1) piston, (1) plunger, (1) spacer, (1) spring

1шт.

23

CYLINDER ASSY, master brake, refer to this group under master brake control

1шт.

24

187728C1

TUBE

ASSY, brake RH upper to master brake cylinder, Serial Range: -23248

1шт.

25

187729C1

TUBE

ASSY, brake center RH, Serial Range: -23248

1шт.

26

187726C1

TUBE

ASSY, brake LH upper to master brake cylinder, Serial Range: -23248

1шт.

P/N 187727C1 Tube assy; SN 232488 & below.

1шт.

27

1301587C1

TUBE

ASSY, brake center LH

1шт.

28

196806C1

TUBE

ASSY, LH brake lower to wheel brake cylinder

1шт.

29

225810

ELBOW UNION

ELBOW, 1/8-27 znd inverted flared tube 90 deg.

1шт.

30

196807C1

TUBE

ASSY, RH brake lower to wheel brake cylinder

1шт.

31

442362

PIPE FITTING

CONNECTOR, 1/8-27 inverted flared

1шт.

32

442336

SUPPORT TUBE

UNION, 7/16-24 brass hyd tube

4шт.

33

573674R1

CLIP

hyd tube, for 1/4 OD tube

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 znd flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

34

193294C1

CHANNEL

parking brake ratchet

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

35

193295C1

CHANNEL

parking brake ratchet pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss hd

1шт.

36

193296C1

QUADRANT

SECTOR, parking brake ratchet

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

37

193297C1

BRACKET

SUPPORT, parking brake cable

1шт.

38

166149C91

CABLE

ASSY, parking brake, 125 in.

1шт.

39

170273C1

HANDLE

brake control cable

1шт.

40

166817C1

WASHER

parking brake warning light switch

1шт.

41

702093C1

CABLE TIE

CLAMP, brake cable

5шт.

42

370383R1

CLIP

brake cable

1шт.

43

117824

YOKE

CLEVIS, #10-32 x 1-9/16 pln lt adj

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1-1/32 C-Z clevis

1шт.

44

271199R1

SPRING

parking brake ratchet

1шт.

45

165222C1

BAR

parking brake ratchet

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

46

188169C1

BAR

SUPPORT, brake tube

1шт.

47

589980R2

CLIP

brake tube

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

48

22274R1

DOWEL,7/8" x 5"

PIN, 7/8 x 5 dowel

2шт.

49

22292R1

O-RING,4.725" ID x 5.275" OD x 0.275"

4-3/4 x 5-1/4 x 1/4

2шт.

50

1301858C1

TUBE

ASSY, master brake cyl to equalizer valve, Serial Range: 23249-32000

2шт.

51

1301859C1

TUBE,0.25" OD, 18.8, 3.8" Length

ASSY, RH brake upper to equalizer valve, Serial Range: 23249-32000

1шт.

52

1301860C1

TUBE

ASSY, RH brake center, Serial Range: 23249-32000

1шт.

53

1301861C1

TUBE

ASSY, LH brake upper to equalizer valve, Serial Range: 23249-32000

1шт.

P/N 1301861C1 Tube /A upper SN 23249 to 32000.

1шт.

54

VALVE ASSY, equalizer, refer to this group user master brake control

1шт.
