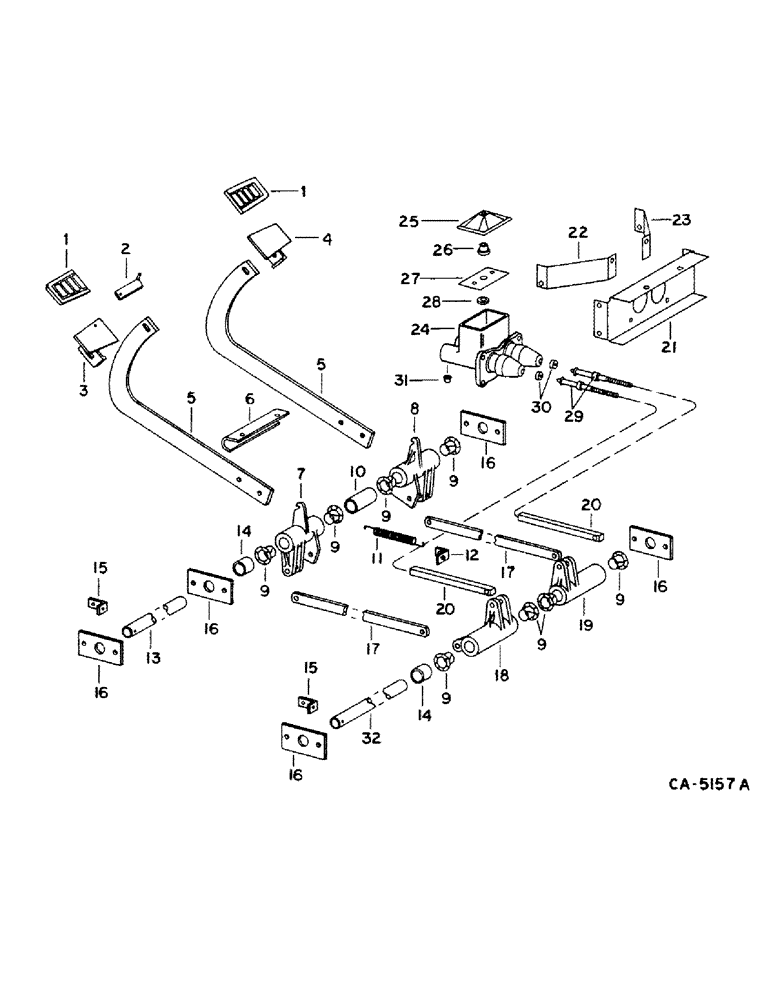

Запчасти Case IH 1460 (04-01) - BRAKE, MASTER BRAKE CONTROLS, S/N 23193 AND BELOW (5.1) - BRAKES

1

863426R1

PAD

brake pedal

2шт.

2

614251R1

BAR

brake locking

1шт.

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

3

163426C1

PEDAL

brake LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

4

163427C1

PEDAL

brake RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

5

184166C2

SUPPORT ASSY.

SUPPORT BRAKE, replaces 192970C1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

6

195509C1

SUPPORT

brake lever

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

192953C1

HUB

brake pedal LH

1шт.

8

192954C1

HUB

brake pedal RH

1шт.

9

277523R1

BUSHING

brake pedal pivot

8шт.

10

151478C1

SPACER,1 1/4" Tube x 1 5/8"

brake pivot shaft inner

1шт.

11

398763R2

SPRING

brake pedal return

2шт.

12

192969C1

ANGLE

brake pedal return spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss hd

1шт.

13

195567C1

ROD

brake and clutch pedal

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga znd

1шт.

14

654385R1

SPACER,26.21mm ID x 31.75mm OD x 19.05mm L

brake pivot shaft LH

1шт.

15

187628C1

ANGLE

CLIP, brake pivot shaft retainer

2шт.

16

165901C1

BAR

brake pivot shaft support

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

192973C2

ROD

brake pedal

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.781 pln clevis

1шт.

18

192951C1

HUB

brake link LH

1шт.

19

192952C1

HUB

brake link RH

1шт.

20

192972C1

BAR

brake cylinder

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1.781 pln clevis

1шт.

21

195515C2

SUPPORT ASSY.

SUPPORT, brake master cyl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

22

195510C1

SUPPORT

brake master cylinder LH

1шт.

23

195511C1

SUPPORT

brake master cylinder RH

1шт.

24

222834C91

MASTER CYLINDER,124.46mm Stroke

CYLINDER ASSY, brake master, includes ref. nos. 25 thru 31

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 znd hex-hd flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25

868351R1

CAP

master cylinder filler

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

SCREW, 1/4 x 2-3/4 znd hex-hd cap

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 hdn

1шт.

26

673857R1

SLEEVE

automatic adjuster

1шт.

27

222844C1

GASKET

filler cap

1шт.

28

222845C1

WASHER

RING, external retainer

1шт.

29

222841C1

ROD

master cylinder push

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

30

222842C1

WASHER

RETAINER, push rod

2шт.

31

INSERT, fitting body (NSS)

2шт.

32

187580C1

SHAFT

ROD, brake rear pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

201594C1

PACKAGE

KIT, cylinder repair, consists of, (2) piston (NSS), (2) cup (NSS), (2) spring (NSS), (2) ring (NSS), (2) boot (NSS)

1шт.
