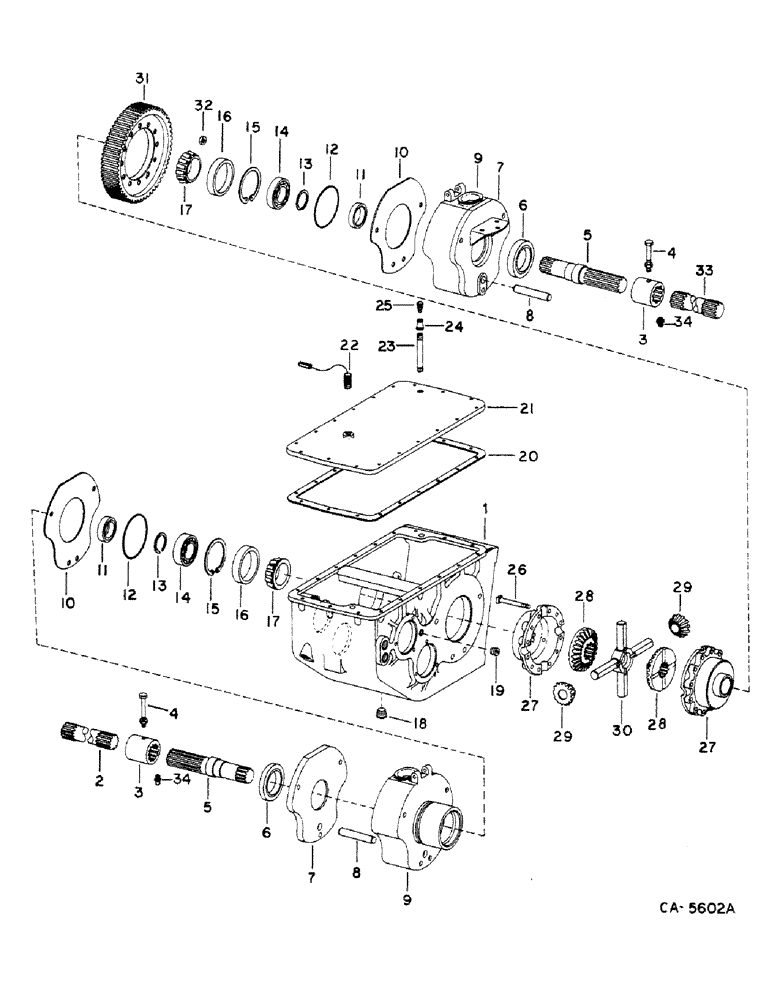

Запчасти Case IH 1460 (07-01) - DRIVE TRAIN, TRANSMISSION, DIFFERENTIAL SHAFT AND GEARS Drive Train

1

401873R2

HOUSING

CASE, transmission

1шт.

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

121794C1

SHAFT

final drive LH, 29.77 in., Serial Range: -32000

1шт.

2

1309012C1

SHAFT

final drive LH, 27.4 in., Start Serial: 32001

1шт.

2

186008C1

SHAFT

final drive LH, 35.09 in., for rice track, Serial Range: -32000

1шт.

2

1309011C1

SHAFT

final drive LH, 32.6 in., for rice track, Start Serial: 32001

1шт.

3

401875R5

SLEEVE

axle drive shaft includes Ref. no. 34, Serial Range: -32000

2шт.

3

184341C1

SLEEVE

axle drive shaft, includes Ref. no. 34, Start Serial: 32001

2шт.

4

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

3/8 x 3-1/2 dld type 8

2шт.

654049R1

LOCK NUT

3/8-16 pln slt-hex

1шт.

21864R1

COTTER PIN

.114 dia. S type cot

1шт.

5

130879C1

SHAFT

differential, Serial Range: -32000

2шт.

5

184178C1

SHAFT

differential, Start Serial: 32001

2шт.

6

SEAL, brake adapter housing cover, refer to group 4 under master and parking brakes

2шт.

7

COVER ASSY, brake adapter housing, refer to group 4 under master and parking brakes

2шт.

8

PIN, 7/8 x 6 dowel, refer to group 4 under master and parking brakes

2шт.

9

HOUSING, brake, refer to group 4 under master and parking brakes

2шт.

10

401898R1

SHIM

brake housing, .003

1шт.

10

401899R1

SHIM

brake housing, .005

1шт.

10

401900R1

SHIM

brake housing, .007

1шт.

11

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

brake housing oil

2шт.

12

O-RING, refer to group 4 under the master and parking brakes

2шт.

13

358059R1

SNAP RING

RING, differential shaft snap

4шт.

14

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

BEARING, differential shaft

2шт.

15

289134R1

SNAP RING,3.938", Int, #393

RING, 4.358 int ret

2шт.

16

ST981

BEARING CONE,112.71mm OD x 19.05mm W

CUP, differential bearing

2шт.

17

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

CONE, differential bearing

2шт.

18

320185C1

PLUG

3/4-14 sq-soc mag pipe

1шт.

19

273469

PLUG

3/4-14 znp sq/skt auto pipe

1шт.

20

401860R1

GASKET

transmission case cover

1шт.

21

184167C1

COVER ASSY

transmission case

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

22

196979C1

GAUGE

GAGE, reluctance pickup, Serial Range: -1500

1шт.

22

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: 1501-22000

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF cad stamped

1шт.

22

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Start Serial: 22001

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

23

121210

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

24

144098

REDUCER

COUPLING, 1/4 x 1/8 reducing pipe

1шт.

25

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

case oil 1/8 ptf

1шт.

26

404171R1

BOLT,1/4" - 20 x 4"

differntial case

12шт.

27

404081R1

CASE ASSY.

CASE ASSY, differential

1шт.

28

404084R1

PINION

GEAR, differential bevel, 28T

2шт.

29

361061R3

PINION

differential bevel, 15T

4шт.

30

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

31

404085R1

GEAR

differential drive, 66T

1шт.

32

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2-20 hex.

12шт.

33

121795C1

SHAFT

final drive RH, 16.65 in., Serial Range: -32000

1шт.

These shafts change if axle extensionsare present on combine. See Fig. 7-10 for shafts.

1шт.

33

402725R2

SHAFT

final drive RH, 14.08 in., Start Serial: 32001

1шт.

33

402726R2

SHAFT

final drive RH, 22.04 in., for rice track, Serial Range: -32000

1шт.

33

184222C1

SHAFT

final drive RH, 19.57 in., for rice track, Start Serial: 32001

1шт.

34

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 lube, Start Serial: 32001

2шт.

34

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub, Serial Range: -32000

2шт.

FOOTNOTE

1шт.
