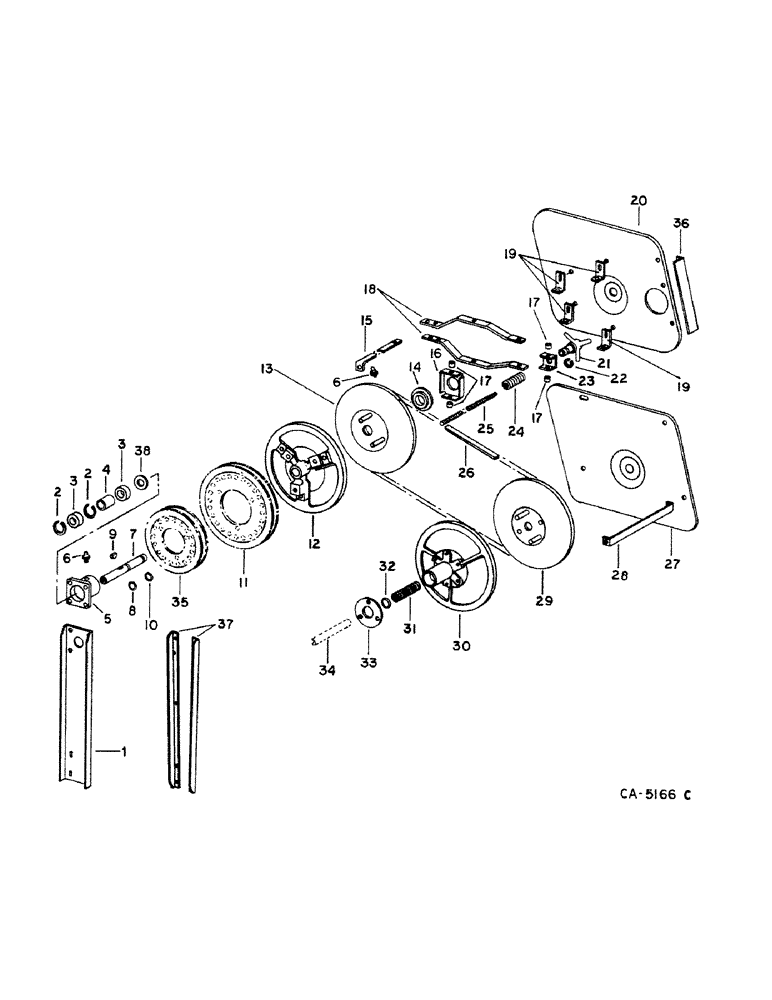

Запчасти Case IH 1460 (24-04) - CLEANING FAN AND DRIVE, FAN DRIVE, S/N 12000 AND BELOW (15) - CLEANING

1

188128C1

CHANNEL

fan hub

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

360936R1

RING

fan drive shaft snap

2шт.

3

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING, elevator and fan drive

2шт.

4

152926C1

SPACER

SPACER, 1-5/16 ID x 1-5/8 OD x 1.88

1шт.

5

192418C1

HUB

elevator and fan drive

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.

7

194853C3

SHAFT

elevator and fan drive

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, .53 x 1.5 x .18

1шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

9

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

10

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 ID x 1-1/2 OD x 1/8

1шт.

11

PULLEY ASSY, cleaning unit drive, refer to group 20 under R.H. drive

1шт.

12

194660C2

PULLEY

fan driver fixed, 11.00 in. OD

1шт.

13

194854C92

PULLEY

ASSY, fan driver adj, 11.00 in. OD

1шт.

23092R1

DOWEL,1/2" x 2 1/2"

PIN, 1/2 x 2.500 pln hdn dowel

1шт.

14

168215C91

BALL BEARING

BEARING, fan jackshaft

1шт.

15

186283C1

SUPPORT

fan drive control

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

177923

COTTER PIN

1/8" x 3/4"

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1-1/2 znd dld std-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

16

194852C2

SUPPORT

fan driver

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

17

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

18

194850C2

SUPPORT

fan control

2шт.

120376

NUT,5/16"-18, G5

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16 x 1-7/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

19

194756C2

ANGLE

fan drive pulley shield

4шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

194758C2

SUPPORT

fan jackshaft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

169705C1

HANDLE

fan speed control

1шт.

591715R1

WASHER

1.03 x 1.50 x .06 znd

1шт.

22

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext

1шт.

23

194848C1

YOKE

fan handle

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

24

12209D

SPRING

fan speed control handle

1шт.

25

194849C1

ROD

fan speed control

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

27

194759C3

GUARD

SUPPORT, fan drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

28

194760C1

SUPPORT

lower shield

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

29

192989C93

PULLEY

ASSY, fan driven fixed, 11.24 in. OD

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 PHC type 8

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 PHC type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 PHC hdn

1шт.

30

192294C2

PULLEY

HALF, fan driven adjustable, 11.24 in. OD

1шт.

31

2833

SPRING

fan drive pulley

1шт.

32

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 OD x 1/8

1шт.

33

192299C1

RETAINER

fan drive pulley

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

34

SHAFT, cleaning fan, refer to this group under cleaning fan & shields

1шт.

35

PULLEY ASSY, elevator jackshaft drive, refer to group 20 under belt drive RH

1шт.

36

186089C1

SHIELD

elevator drive idler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

37

(Not used in this application)

1шт.

38

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, fan bearing retainer

1шт.
