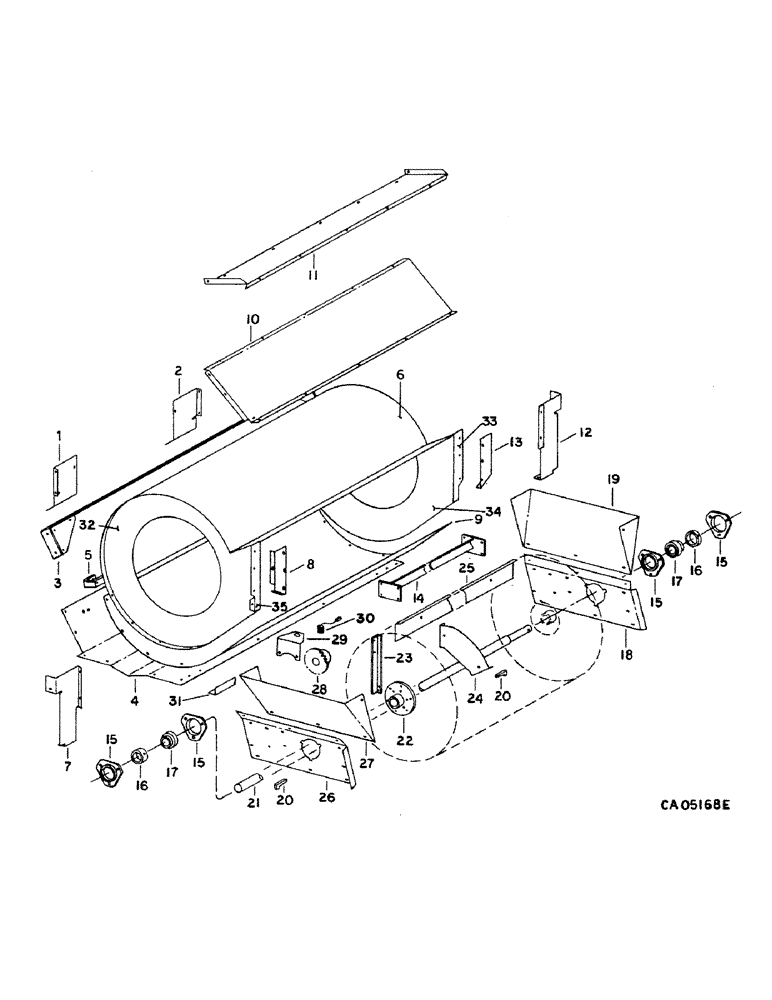

Запчасти Case IH 1460 (24-01) - CLEANING FAN AND DRIVE, CLEANING FAN AND SHIELDS (15) - CLEANING

1

188112C2

SUPPORT

fan intake front LH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188113C2

SUPPORT

fan intake front RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

194712C1

SUPPORT

ASSY, fan bottom shield

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

4

194717C1

SUPPORT

fan bottom

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2 x 1 znd hex-hd flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

191706C1

SUPPORT

fan front support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

6

(NSS) SHEET, fan housing top, note, replaces 185432C2

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

7

188114C2

SUPPORT

fan intake rear LH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

191709C1

SUPPORT, fan side sheet LH, Serial Range: -2568

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT, fan joining 1/4 high torque

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

8

186715C1

SUPPORT

fan side sheet LH, Start Serial: 2569

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

9

191702C1

SUPPORT

fan housing bottom

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

192066C1

SUPPORT ASSY.

SUPPORT, pan to auger bed, Serial Range: -2568

1шт.

10

185043C1

SUPPORT

pan to auger bed, Start Serial: 2569

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

192064C1

SUPPORT ASSY.

SUPPORT, chaffer front seal, Serial Range: -2568

1шт.

11

185042C1

SUPPORT

chaffer front seal, Start Serial: 2569

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

188115C2

SUPPORT

fan intake rear RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

191710C1

SUPPORT ASSY.

SUPPORT, fan side sheet RH, Serial Range: -2568

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT, fan joining, 1/4 high torque

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

13

186716C1

SUPPORT

fan side sheet RH, Start Serial: 2569

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

14

191703C3

SUPPORT ASSY.

SUPPORT ASSY, fan rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE, fan shaft bearing

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 1-1/2 h/hd flange

1шт.

16

455104R11

COLLAR

ASSY, fan bearing locking

2шт.

17

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, fan, Serial Range: -5500

2шт.

17

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY, fan, Start Serial: 5501

2шт.

18

194396C1

SUPPORT

fan shaft bearing RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

19

194398C2

SUPPORT

SUPORT, fan intake RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib, Serial Range: -12000

2шт.

20

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, Start Serial: 12001

2шт.

21

192234C1

SHAFT

cleaning fan, Serial Range: -1500

1шт.

21

183445C2

SHAFT

cleaning fan, Serial Range: 1501-12000

1шт.

21

185139C2

SHAFT

cleaning fan, Serial Range: 12001-24479

1шт.

21

1309016C1

SHAFT

cleaning fan, Start Serial: 22480

1шт.

22

188268C1

HUB

SPIDER ASSY, fan, Serial Range: -12000

2шт.

22

185480C1

HUB ASSY.

HUB ASSY, fan, Start Serial: 12001

2шт.

23

188270C1

ANGLE

fan, Serial Range: -12000

12шт.

23

185483C1

BAR

fan, Start Serial: 12001

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

24

169706C1

BRACE

cleaning fan blade, Serial Range: -12000

12шт.

24

185484C1

SUPPORT

cleaning fan blade, Start Serial: 12001

12шт.

25

169707C1

BLADE

cleaning fan, Serial Range: -12000

6шт.

25

182928C1

BLADE

cleaning fan, Start Serial: 12001

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

26

194395C1

SUPPORT

fan shaft bearing LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

27

194397C2

BRACKET

SUPPORT, fan intake LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

28

198526C1

SPROCKET ASSY.

SPROCKET, fan speed tach

1шт.

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znd cup-pt hd-less

1шт.

29

193222C2

SUPPORT

fan speed tach, Serial Range: -22000

1шт.

29

1301240C2

SUPPORT

fan speed tach, note, spacer 1308813C1 not required, Start Serial: 22001

1шт.

30

196979C1

GAUGE

GAGE, reluctance pickup, Serial Range: -1500

1шт.

30

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: 1501-22000

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF CAD stamped

1шт.

30

1301241C1

SENSOR

CONVERTER, reluctance pickup, Start Serial: 22001

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

31

186024C1

ANGLE

main sill center cross, for rice

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC p/t flange type 8

1шт.

32

NSS

NOT SOLD SEPARAT

SECTION, fan housing side, LH, note

1шт.

33

186714C2

EXTENSION

fan sheet filler, RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

34

NSS

NOT SOLD SEPARAT

SECTION, fan housing side, RH, note

1шт.

35

186713C2

KIT

EXTENSION, fan sheet filler, LH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

1324001C91

KIT

PACKAGE, fan housing, consists of, section, fan housing, LH (NSS), section, fan housing, RH (NSS), sheet, top (NSS)

1шт.

Furnish fan housing package 1324001C91

1шт.

186713C2

KIT

EXTENSION, filler, LH

1шт.

186714C2

EXTENSION

filler, RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock, instructions (NSS)

1шт.
