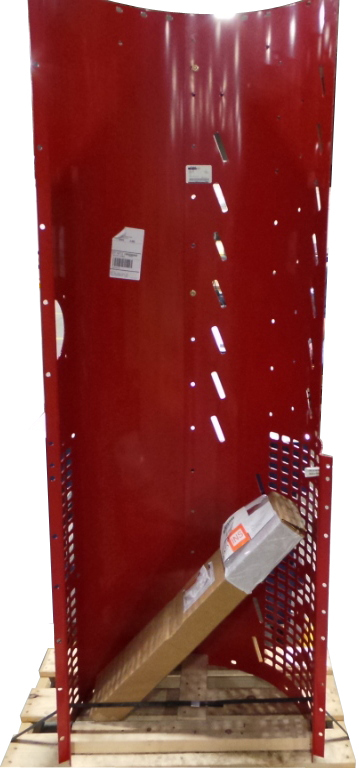

Запчасти Case IH 1460 (21-31[01]) - KIT CAGE W/STD VANES -60 1994874C3 (14) - THRESHING

1

B96151

KIT

Incl 2 - 13

1шт.

2

1318419C3

CAGE

Rotor RH 24in

1шт.

3

1318829C2

CAGE

Rotor LH

1шт.

4

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

45шт.

5

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

23шт.

6

193175C2

GUIDE

Vane Transport

13шт.

7

193179C2

VANE

Extension Transition

3шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

34шт.

9

86521609

FLANGE NUT,Flg, 3/8"-16

45шт.

10

86624124

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

11

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

3шт.

12

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

10шт.

13

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

2шт.
