Запчасти Case IH 1460 (21-17) - THRESHING ROTOR AND CONCAVES, CONE, S/N 1501 AND ABOVE (14) - THRESHING

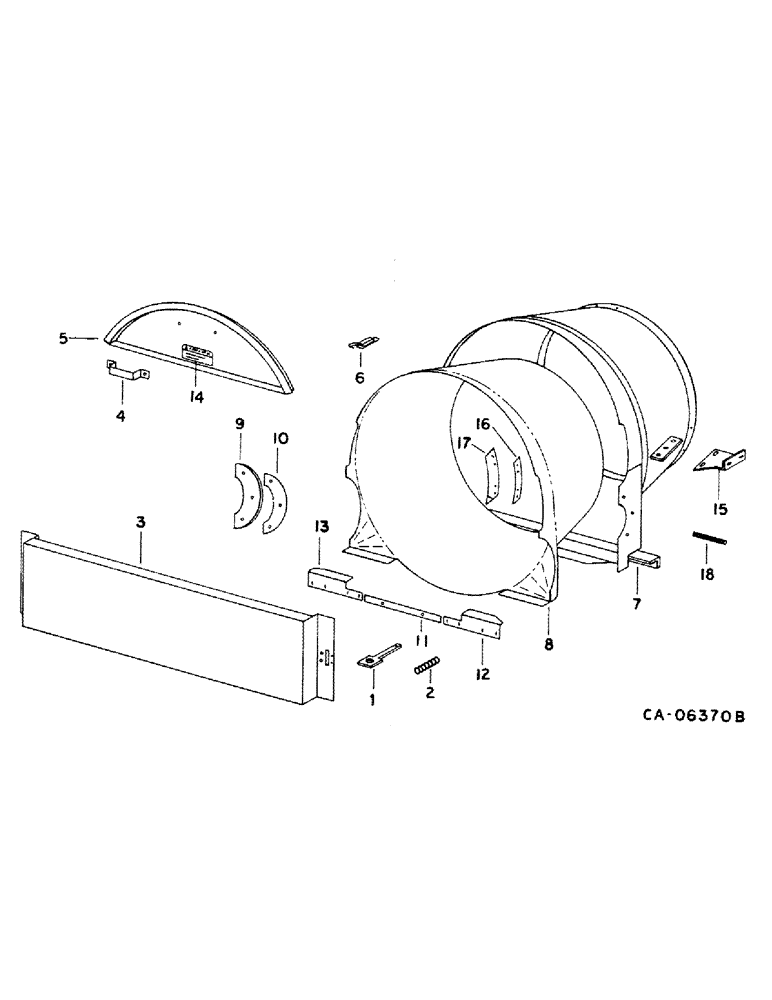

Схема запчастей Case IH 1460 - (21-17) - THRESHING ROTOR AND CONCAVES, CONE, S/N 1501 AND ABOVE (14) - THRESHING
4
14
11
17
10
12
2
13
15
8
7
16
6
3
9
18
5
1

Артикул

Название

Примечание

Количество

1

454502R1

LATCH

separator front door

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

2

M296

SPRING

front door latch

2шт.

3

193436C2

DOOR

separator front

1шт.

4

160638C1

HANDLE

rotor front doot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

182975C93

DOOR

rotor front, Serial Range: -12000

1шт.

P/N 182975C93, 32.88" wide.

1шт.

5

1300208C91

DOOR

rotor front, for grain & corn, Start Serial: 12001

1шт.

P/N 1300208C91 32.57" wide.

1шт.

5

1300300C91

DOOR

DOOR, rotor front, for rice, includes ref. no. 14, Serial Range: 12001-32000

1шт.

P/N 1300300C91, 32.5" wide.

1шт.

5

1300208C91

DOOR

rotor front, for rice, Start Serial: 32001

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

6

168481C1

LATCH ASSY.

LATCH, rotor front door, Serial Range: -12000

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 p/hds mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

7

1309419C2

CONE

ASSY, transition, for rice only

1шт.

P/N 1309419C2, .188" thick

1шт.

7

1317770C2

CONE

ASSY, transition, for grain and corn only, replaces 186798C5, also order 186985C3 vane cone short, Serial Range: 1501-12000

1шт.

P/N 1317770C2, .152" thick

1шт.

P/N 1317770c2, see the 3 hole support welded on the side..it is no longer used, per service bulletin s4706

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

LINER, adapter cone, for rice, furnish, one, each of cone, 1309419C2 and door, 1309420C91

1шт.

Ref. 8, No longer offered.

1шт.

9

195202C1

SEAL

feeder

2шт.

10

195409C1

PLATE

seal backup

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

1308519C1

BAR

feeder door, for rice

1шт.

12

1308520C2

SUPPORT ASSY.

SUPPORT, cone liner front LH, for rice

1шт.

13

1308521C2

SUPPORT ASSY.

SUPPORT, cone liner front RH, for rice

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

14

179749C2

PRODUCT GRAPHIC

danger

1шт.

15

1302141C2

SUPPORT

LH pocket, for use with cone, 1309419C2

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

1308776C1

FILLER

cone section, for rice

1шт.

17

1308777C1

COVER

cone section

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

120253C1

CONDUIT

LH pocket support, 8.25 in.

1шт.
