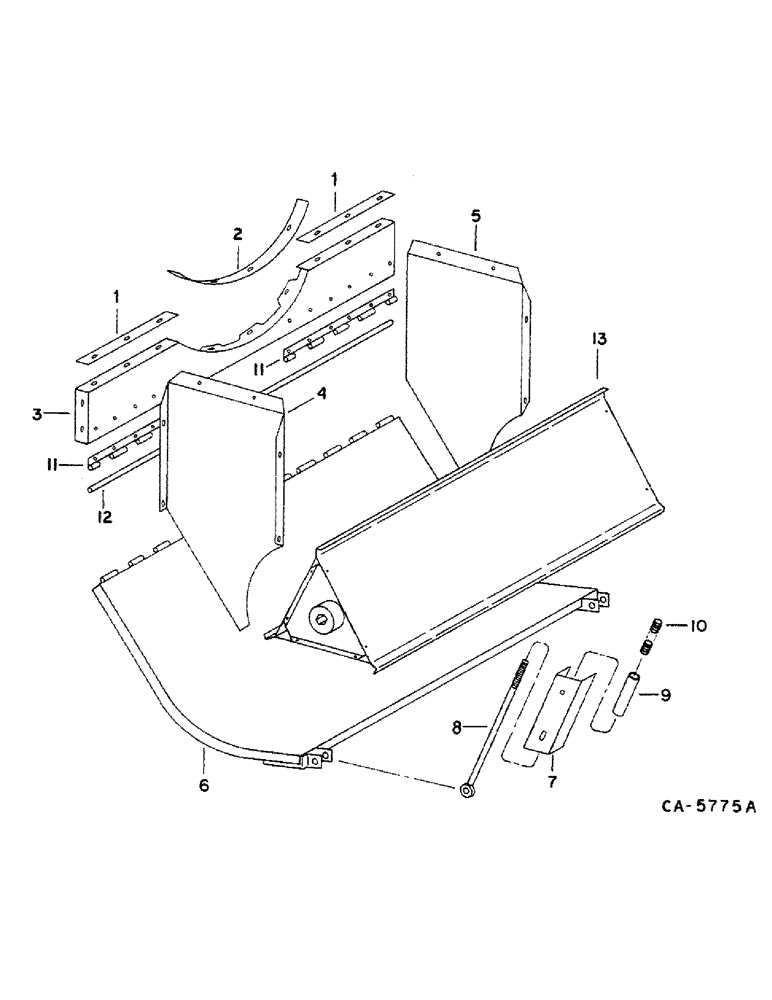

Запчасти Case IH 1460 (21-15) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER BOTTOM, SPRING LOADED (14) - THRESHING

1

182891C1

PLATE

FILLER, bulkhead rear

2шт.

2

182898C1

SUPPORT

STRIP, cage filler rear

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

182929C1

SUPPORT

rear lower case

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

182946C1

DEFLECTOR

discharge LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

182947C1

DEFLECTOR

discharge RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

182924C2

DOOR

BOTTOM ASSY, beater

1шт.

7

182896C1

SUPPORT

bottom spring

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

359783C1

LOCK NUT

3/8 CAD p/t lock type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn

1шт.

186917C1

SCREW

BOLT, 3/8 x 3/4 w/scotch grip

1шт.

8

182892C2

BOLT,1/2" - 13 x 330mm

beater bottom eye

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

9

182981C1

SPACER

beater bottom

2шт.

10

391745R1

SPRING

beater bottom

2шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1.750 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

11

182894C1

HINGE

beater bottom

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

182977C1

ROD

bottom hinge

1шт.

13

BEATER ASSY, discharge, refer to this group under discharge beater

1шт.
