Запчасти Case IH 1460 (21-14) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER BOTTOM, FIXED (14) - THRESHING

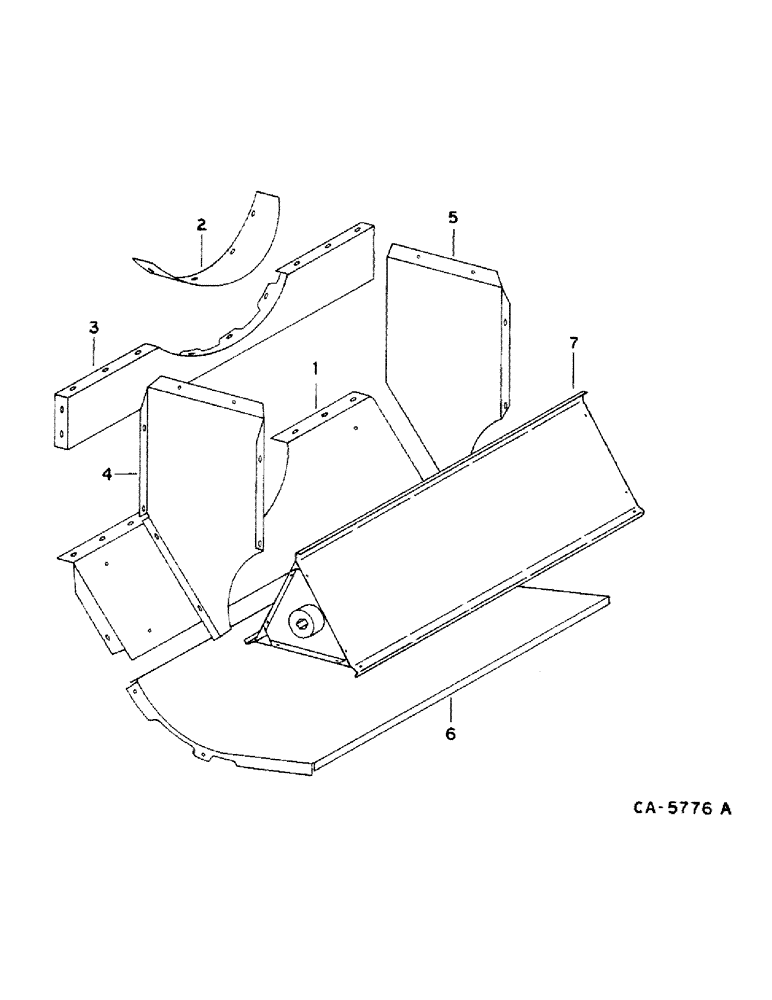

Схема запчастей Case IH 1460 - (21-14) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER BOTTOM, FIXED (14) - THRESHING
4
1
7
3
6
2
5

Артикул

Название

Примечание

Количество

1

192028C2

SUPPORT

beater discharge

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

2

193909C2

SUPPORT

beater bottom front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

3

182929C1

SUPPORT

rear lower cage, replaces 192297C2

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

193452C1

DEFLECTOR

discharge left

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

5

193453C1

DEFLECTOR

discharge right

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

195426C2

TROUGH

BOTTOM ASSY, rear beater

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

359783C1

LOCK NUT

3/8 CAD p/t lock type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 PHC hdn

1шт.

7

BEATER ASSY, discharge, refer to this group under discharge beater

1шт.

Выбрано товаров: 21
