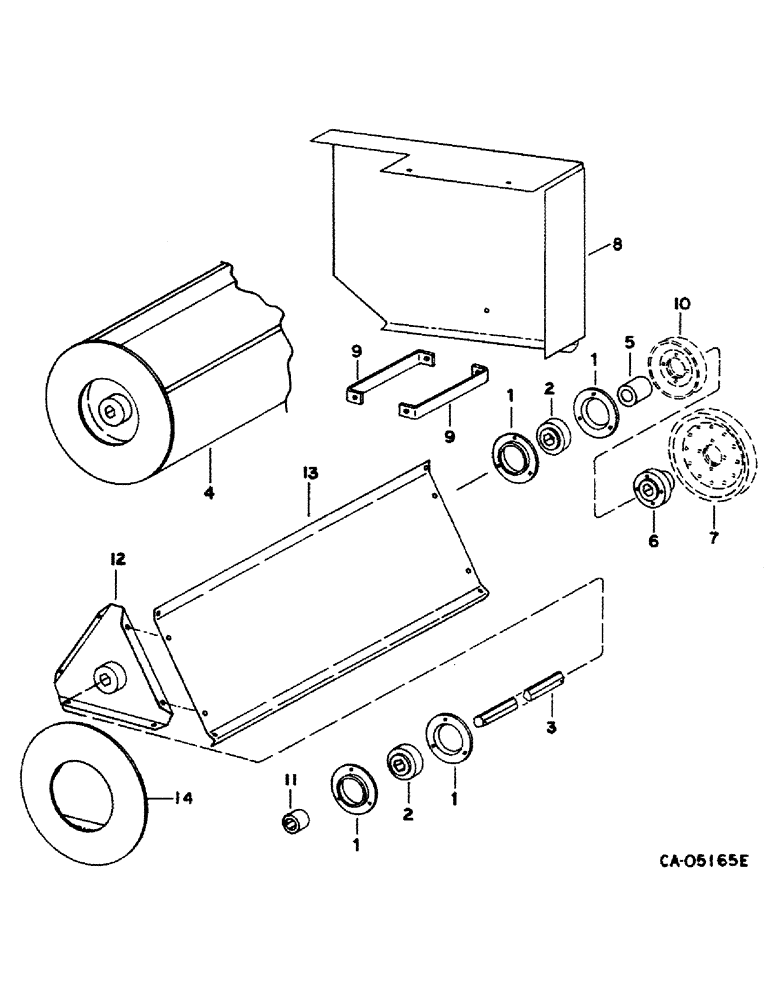

Запчасти Case IH 1460 (21-12) - THRESHING ROTOR AND CONCAVES, DISCHARGE BEATER (14) - THRESHING

1

180955C1

FLANGED BEARING,0.375"

FLANGE, beater bearing

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, discharge beater

2шт.

3

1302175C1

SHAFT

BAR, discharge beater

1шт.

21779R1

WASHER

1.344 x 2.0 x .105

1шт.

21290R1

WASHER

1.344 x 2.000 x .054

1шт.

4

1300745C91

PACKAGE

discharge beater, replaces 192726C1, consists of, Serial Range: -42029

1шт.

1319269C1

SUPPORT

BLADE, beater

3шт.

1319266C1

HUB

ASSY, beater

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

632147R1

SPACER

beater driven pulley

1шт.

21779R1

WASHER

1.344 x 2.0 x .105

1шт.

6

195216C2

HUB

beater drive pulley, Serial Range: -23400

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 type 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 PHC hdn

1шт.

6

1319402C1

HUB

beater drive pulley, Start Serial: 23401

1шт.

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

26273R1

WASHER

.531 x 1.062 x .134 PHC hdn

1шт.

7

PULLEY ASSY, beater drive, refer to group 20 under R.H. drives

1шт.

8

195113C1

SUPPORT

beater drive

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

194760C1

SUPPORT

CHANNEL, beater drive shield

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

10

PULLEY ASSY, straw spreader drive, refer to group 20 under straw spreader drive

1шт.

11

1302104C1

HUB

BUSHING, beater fixed, Start Serial: 12001

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

12

1319266C1

HUB

ASSY, beater, replaces 183129C3, furnish pack age 1300745C91, Serial Range: -42029

2шт.

12

1319266C1

HUB

ASSY, beater, replaces 183129C3, Start Serial: 42030

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

1319269C1

SUPPORT

BLADE, beater, replaces 183150C1, furnish package 1300745C91, Serial Range: -42029

3шт.

13

1319269C1

SUPPORT

BLADE, beater, replaces 183150C1, Start Serial: 42030

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

1319230C1

HUB

END ASSY, hub, Serial Range: -42029

2шт.

14

1319230C1

HUB

END ASSY, hub, package 1300745C91 may also be ordered, Serial Range: 22001-42029

2шт.
