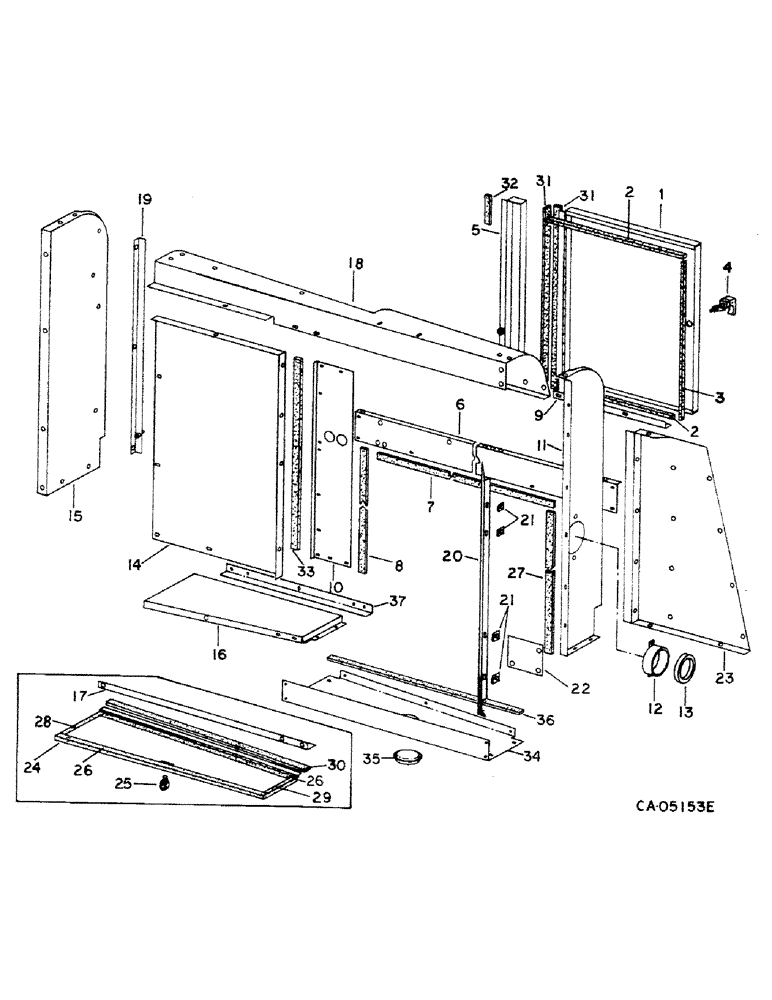

Запчасти Case IH 1460 (06-03) - COOLING, ROTARY AIR SCREEN CHUTE Cooling

1

1302529C1

DOOR

ASSY, radiator access

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

2

177910C1

SEAL

access door top and bottom seal, use 16.7 in.

2шт.

3

177910C1

SEAL

access door side seal, use 26.2 in.

1шт.

4

1302494C2

LATCH

radiator access door

1шт.

5

194295C1

SUPPORT

ASSY, adapter

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

85490H

SPACER

5/8 x 11/16 tube

1шт.

6

194296C2

SUPPORT

chute bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

7

177910C1

SEAL

adapter top, use 32.0 in.

1шт.

8

1319431C1

SEALING STRIP

adapter side

1шт.

9

194297C1

ANGLE

access door seal bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

10

194298C2

SUPPORT ASSY.

SUPPORT, radiator left

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

11

194300C3

SUPPORT

chute filler

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

188398C1

AIR INTAKE TUBE

TUBE ASSY, air cleaner inlet, not used w/aspirated pre-cleaner pre-screener

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

177869C1

SEAL,4.5" ID x 5.5" OD x 0.5"

SEAL, air cleaner tube, not used w/aspirated pre-cleaner pre- screener

1шт.

14

194301C1

SUPPORT

rotary air screen

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

15

194302C4

SUPPORT

chute front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

16

194303C2

SUPPORT

chute bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

17

188035C1

ANGLE

seal lower, Serial Range: -42909

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

194308C2

CHUTE (DOWNWARD)

CHUTE ASSY, rotary air screen top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

19

188033C1

ANGLE

front support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

89490H

SPACER, 5/8 x .688 tube

1шт.

20

188409C1

BAFFLE

air screen intake, not used w/aspriated pre- cleaner pre-screener

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

150100C1

SPRING NUT

air intake baffle, not used w/ aspirated pre-cleaner pre- screener

4шт.

22

188021C1

BAR

oil cooler filler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

23

193156C1

SHEET

SUPPORT, RH rear upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

24

188053C1

DOOR

ASSY, radiator cleanout, Serial Range: -42909

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 znd slt-truss-hd

1шт.

25

188029C1

LATCH

clean out door, Serial Range: -42909

1шт.

26

STRIP, clean out door, use 34 in. piece from bulk stock market 73220C1, Serial Range: -42909

1шт.

27

1319431C1

SEALING STRIP

adapter rear

1шт.

28

177910C1

SEAL

cleanout door front, use 8.5 in., Serial Range: -42909

1шт.

29

177910C1

SEAL

cleanout door rear, use 6.1 in., Serial Range: -42909

1шт.

30

1301236C1

SEALING STRIP

STRIP, clean out door hinge, 30.9 in., 787 mm, Serial Range: -42909

1шт.

31

1319431C1

SEALING STRIP

radiator access door hinge, 25.6 in., 650 mm

2шт.

32

1319431C1

SEALING STRIP

adapter top rear, 6.5 in. 165 mm

1шт.

33

1319431C1

SEALING STRIP

adapter bottom, 30 in., 762 mm

1шт.

31

1319684C1

SUPPORT

bottom rear inner, Start Serial: 42910

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

35

1302758C1

PLUG

clean out hole, Start Serial: 42910

1шт.

36

STRIP, bottom rear inner support, use 34 in. piece from bulk stock market 73220C1, Start Serial: 42910

1шт.

37

1319428C1

ANGLE

seal support, Start Serial: 42910

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.
