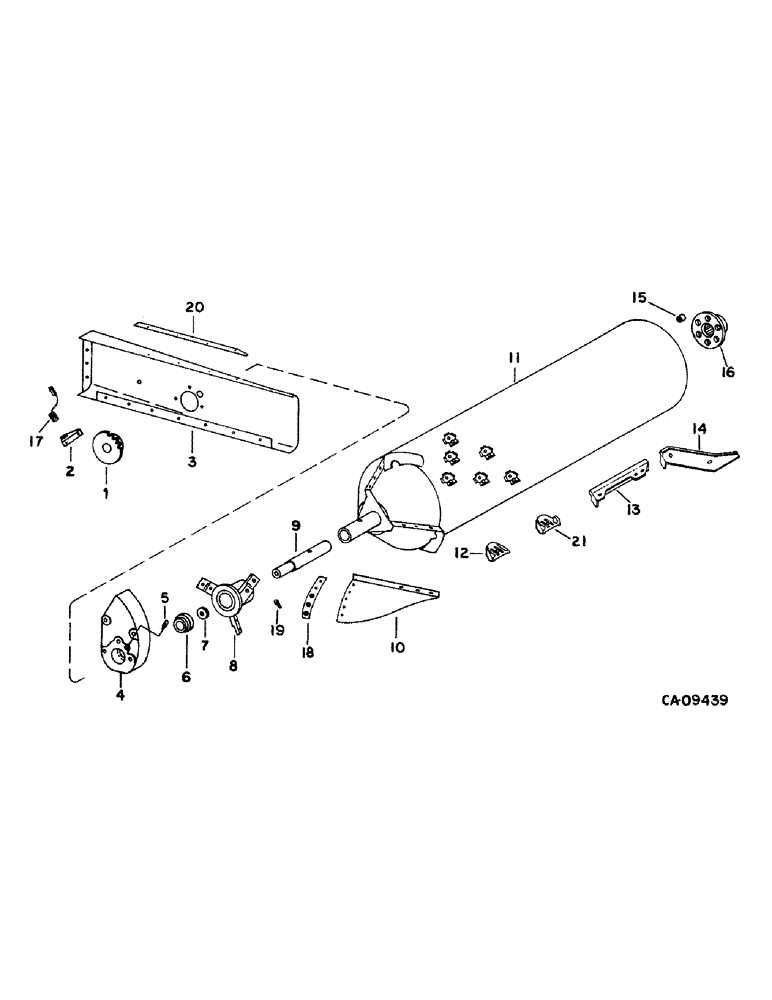

Запчасти Case IH 1460 (21-05) - THRESHING ROTOR AND CONCAVES, ROTOR, SPECIALTY CROP (14) - THRESHING

1

ROTOR, multi-position tachometer rotor speed magnetic pickup, refer to this group under rotor, grain & corn

1шт.

2

SUPPORT, rotor tachometer magnetic, refer to ghis group under rotor, grain & corn

1шт.

3

SUPPORT ASSY, front bearing, refer to this group under rotor, grain & corn

1шт.

4

1309076C1

BEARING HOUSING

rotor front bearing, replaces 192956C2

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 znd type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front brg housing

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

8

191546C2

IMPELLER

rotor front

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

9

191545C1

SHAFT

ROD, rotor front

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

1шт.

10

1309130C1

BLADE

PACKAGE, rotor blade

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC hdn

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

11

1327672C91

ROTOR

ASSY, threshing, bean, includes ref nos 8, 9, 10, 12, 13 thru 16, 18 and 19 or

1шт.

11

1317405C91

ROTOR

ASSY, threshing, rice includes ref nos 8, 9, 10 , 12, 14 thru 16, 18, 19 & 21, when furnishing rotor assy also order the following if not so equipped:, Serial Range: -10000

1шт.

181314C2

BLOCK

SUPPORT, front gear case

1шт.

181315C1

PLATE

front gear case support

1шт.

182545C1

HOUSING

RETAINER, rotor gear case

1шт.

12

1309336C1

BAR

rasp w/o spike, 54 bean, 33 rice

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC p/t flange type 5

1шт.

13

1318976C1

BAR

straight separator, bean only

3шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC x p/t flange type 5

1шт.

14

1317690C1

ANGLE

helical kicker rear

3шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC p/t flange type 5

1шт.

15

180703C1

PACKAGE,SERVICE

PACKAGE, rotor drive hub insulator, consists of, (6) (NSS) insulator

6шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.5 x .12 hdn

1шт.

16

185166C91

HUB

COUPLING ASSY, rotor drive, includes ref no. 15

1шт.

17

GAGE, reluctance pick-up, refer to this group under rotor, grain and corn

1шт.

18

1309185C1

SUPPORT

BAR, wear/reinforcing, chrome

3шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC hdn

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

SCREW, 1/2-13 x 1-1/2 flat hd type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC hdn

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

20

BAR, rotor front hold down, refer to this group under rotor, grain and corn

1шт.

21

1309175C1

BAR

spike rasp rear, 21 rice only

1шт.
