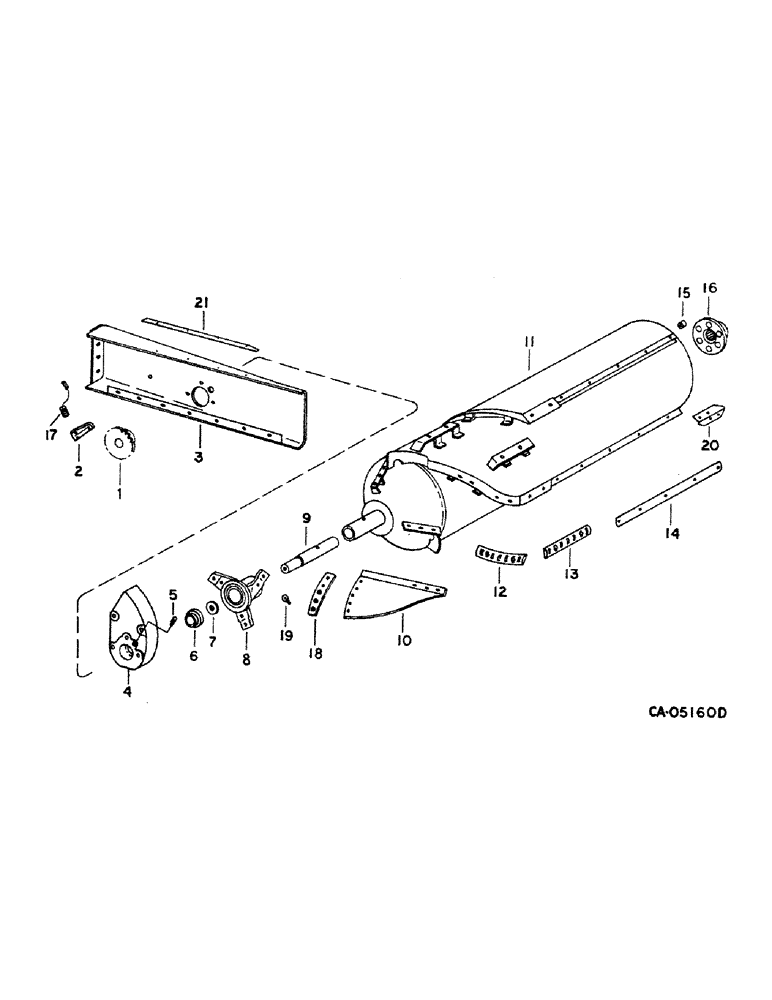

Запчасти Case IH 1460 (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR, GRAIN AND CORN (14) - THRESHING
№
Артикул
Название
Примечание
Количество
1
198527C1
ROTOR
multi-position tachometer rotor speed magnetic pickup
1шт.
2
193221C1
SUPPORT
rotor tachometer magnetic, Serial Range: -22000
1шт.
2
1301239C1
BRACKET
rotor tachometer magnetic pickup, Start Serial: 22001
1шт.
3
193163C5
SUPPORT
ASSY, front bearing
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 PHC flange lock type 8
1шт.
204060C1
BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"
SCREW, 1/2 x 1-1/4 hex-hd flange
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
4
1309076C1
BEARING HOUSING
rotor front bearing, replaces 192956C2
1шт.
179464C1
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"
3/8 x 1-1/4 slt-truss-hd
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
183449C1
WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk
WASHER, front bearing housing
1шт.
6
193282C91
BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm
rotor front
1шт.
7
70330C1
WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk
rotor front shaft
1шт.
8
191546C2
IMPELLER
rotor front
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
22109R1
HEADED PIN
PIN, 3/4 x 4-1/2 znd std-hd type 5
1шт.
9
191545C1
SHAFT
rotor front
1шт.
18837R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2
3/4 x 1-3/4 znd hex-hd mach
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
22811R1
WASHER
2.031 x 2.750 x .067
1шт.
10
1309130C1
BLADE
PACKAGE, rotor blade
1шт.
P/N 1309130C1, SB 08687
1шт.
20534R1
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8
1/2 x 1-3/4 type 8
1шт.
25281R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8
1/2 x 2-3/4 PHC type 8
1шт.
236486R1
BOLT,Hex, 1/2" - 13 x 3", Gr 8
1шт.
25555R1
WASHER,17/32" x 1 1/4" x .188", HDN
.531 x 1.250 x .188 PHC hdn
1шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
11
ROTOR ASSY, close tolerance threshing, for hard grain conditions, order rotor assy, 1302214C96
1шт.
Ref. 11, rotor bracket (weldment) on side between rasp bar weldments is P/N 188025c1.
1шт.
11
1302214C96
ROTOR
ASSY, threshing, for grain and corn, includes ref nos 8, 9, 10, 12 thru 16, 18 and 19, when furnishing rotor assy, also order the following:, Serial Range: -10000
1шт.
181314C2
BLOCK
SUPPORT, front gear case
1шт.
181315C1
PLATE
front gear case support
1шт.
182545C1
HOUSING
RETAINER, rotor gear case
1шт.
12
1308829C1
BAR
helical rasp 120 degree, replaces package, 1309122C1 or
12шт.
12
1324583C1
BAR
helical rasp 120 degree, chrome, replaces package, 1324632C1
12шт.
20537R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8 x 1-1/4 type 8
1шт.
25896R1
WASHER,13/32" x 13/16" x .09", HDN
.406 x .812 x .089 PHC hdn
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
13
1324582C1
BAR
straight rasp, chrome, replaces package, 1324669C1
1шт.
20537R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8 x 1-1/4 type 8
1шт.
20537R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8 x 1-1/4 type 8
1шт.
25896R1
WASHER,13/32" x 13/16" x .09", HDN
.406 x .812 x .089 PHC hdn
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
14
1324580C1
BAR
rotor rear straight, chrome, replaces package, 1324668C1
3шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
14
1302103C3
BAR
rotor rear straight, toothed, replaces package, 1300083C3
1шт.
20537R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8 x 1-1/4 type 8
1шт.
25896R1
WASHER,13/32" x 13/16" x .09", HDN
.406 x .812 x .089 PHC hdn
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
15
180703C1
PACKAGE,SERVICE
PACKAGE, rotor drive hub insulator, consists of (NSS) insulator
6шт.
25281R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8
1/2 x 2-3/4 PHC type 8
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
540468R1
WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk
.531 x 1.5 x .12 hdn
1шт.
16
185166C91
HUB
rotor drive, includes ref. no. 15
1шт.
17
196979C1
GAUGE
GAGE, reluctance puckup, Serial Range: -1500
1шт.
17
187855C1
ELECTRICAL GAUGE
GAGE, reluctance pickup, Serial Range: 1501-22000
1шт.
145507
NUT,Stamped, 7/8"-14
7/8-NF CAD stamped
1шт.
17
1301241C1
SENSOR
CONVERTOR, reluctance pickup, Start Serial: 22001
1шт.
107827
NUT,Stamped, 3/4"-16
3/14 zn stamped
1шт.
18
183253C2
BAR
wear/reinforcing, replaces package, 180786C1
3шт.
25281R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8
1/2 x 2-3/4 PHC type 8
1шт.
236486R1
BOLT,Hex, 1/2" - 13 x 3", Gr 8
1шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
25555R1
WASHER,17/32" x 1 1/4" x .188", HDN
.531 x 1.250 x .188 PHC hdn
1шт.
19
183254C1
HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"
SCREW, wear reinforcing bar
9шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
25555R1
WASHER,17/32" x 1 1/4" x .188", HDN
.531 x 1.250 x .188 PHC hdn
1шт.
20
183335C3
SUPPORT
BAR, rotor rear extension
3шт.
140483H
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd
1шт.
25896R1
WASHER,13/32" x 13/16" x .09", HDN
.406 x .812 x .089 PHC hdn
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
21
1308967C1
BAR
rotor front door hold down
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
1324208C1
SHIM KIT
PACKAGE, rotor rasp shim, consists of,(28) (NSS) shim .026, (28) (NSS) shim .053, (28) (NSS) shim .093, (NSS) instructions
1шт.
1324031C1
PACKAGE
grain rotor separator angle bar support, consists of (4) (NSS) support, rear bar, (NSS) instructions
1шт.
See SB 021 87 for info on shimmed rotor assy for hard to thresh grain.
1шт.
Выбрано товаров: 87
