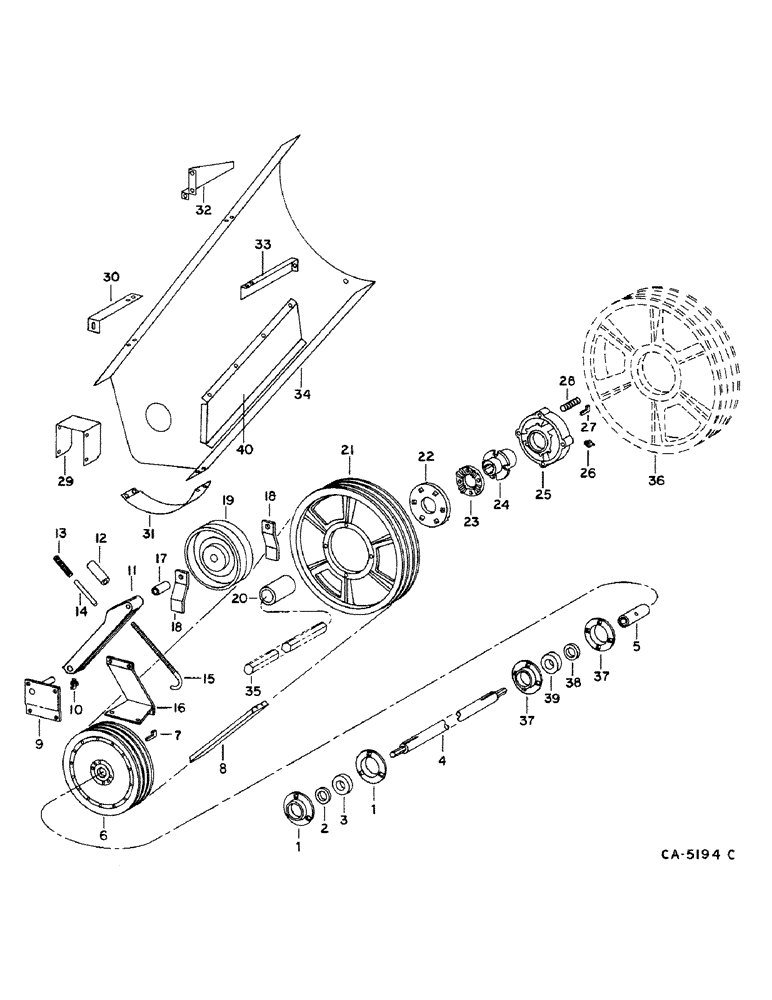

Запчасти Case IH 1460 (33-11) - FEEDER, FEEDER JAKSHAFT DRIVE, S/N 12000 AND BELOW (13) - FEEDER

1

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft bearing LH, replaces 617863R1

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

517645R11

COLLAR

W/SET SCREW, bearing locking LH

1шт.

3

611583R91

BALL BEARING

BEARING, feeder jackshaft LH

1шт.

4

195560C3

JACKSHAFT

SHAFT, feeder cross

1шт.

5

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft

1шт.

586591R1

COTTER PIN

PIN, 3/16 QA cotter

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 std-hd

1шт.

6

176573C4

PULLEY

feeder jackshaft driven, 13.5 in. OD

1шт.

7

Q1376

KEY

3/8 x 2-1/4 GIB

1шт.

Ref. 7 For a Gib key, use P/N 240.This key has a head and is tapered. Just below head it should be .382" high. Small end should be .317"

1шт.

8

1313095C2

V-BELT,131.69" L

Feeder Jackshaft Drive, for 47 Inch Feeder 131.69" L

1шт.

8

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Feeder Jackshaft, for 54.5 Feeder 22.33 mm W x 3706.69 mm L

1шт.

9

197403C1

SUPPORT ASSY.

SUPPORT ASSY, idler

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

23040R1

WASHER

PIN, 1/4 x 1-1/2 cotter

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

591715R1

WASHER

1.031 x 1-1/2 x 16 ga znd

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

151670C1

SHIM

SHIM, idler pivot

1шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/2-28 45 deg self tap lub

1шт.

11

1305142C1

ARM ASSY.

ARM ASSY, jackshaft tightener

1шт.

12

176581C1

SPACER

adjusting bolt spring

1шт.

13

PO3A

SPRING

adjusting bolt

1шт.

14

176544C2

SPACER

adjusting bolt inner

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

632076R1

WASHER

.531 x 1.75 x .09

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

15

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

idler draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

16

197407C1

SUPPORT

ASSY, draw bolt

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

189708C1

SPACER

drive idler

1шт.

18

197110C1

GUIDE

belt

2шт.

19

176579C1

IDLER

drive tightener, 8 in. OD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8 type 5

1шт.

20

581764R1

SPACER

slip clutch

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

21

176575C1

PULLEY

feeder jackshaft drive, 16.70 in. OD

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

179032C1

RATCHET

slip clutch inner

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

Q3500

WASHER

21/32 x 1-1/8 x 12 ga znd

1шт.

614452R1

WASHER

21/32 x 1-1/4 x 11 ga znd

1шт.

23

179030C1

RATCHET

slip clutch outer

1шт.

24

189020C1

HUB

feed conveyor slip clutch

1шт.

25

189019C1

HUB

feeder driven pulley

1шт.

26

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

27

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

28

584007R1

SPRING

slip clutch

6шт.

29

189729C1

CHANNEL

jackshaft RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

30

189450C2

SUPPORT ASSY.

SUPPORT, shield upper front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

31

189458C1

SUPPORT

shield drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

32

189452C1

SUPPORT

shield upper rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

33

189454C1

SUPPORT

shield lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

34

189445C3

GUARD

SHIELD ASSY, jackshaft drive, for 47 in. feeder

1шт.

34

189446C3

SHIELD

ASSY, jackshaft drive, for 54.5 in. feeder

1шт.

35

SHAFT, feeder conveyor, refer to this group under feed conveyor

1шт.

36

PULLEY, feeder driven, refer to this group under feeder drive

1шт.

37

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft bearing RH, Serial Range: -2829

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

37

663562R1

FLANGE

feeder jackshaft bearing RH, Start Serial: 2830

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

195312R1

NUT, 1/2 flange

1шт.

38

517645R11

COLLAR

W/SET SCREW BEARING LOCKING RH, Serial Range: -2829

1шт.

38

184648C1

COLLAR

W/SET SCREW BEARING LOCKING RH, Start Serial: 2830

1шт.

39

611583R91

BALL BEARING

BEARING, feeder jackshaft RH, Serial Range: -2829

1шт.

39

184647C91

BALL BEARING,34.92mm ID x 80mm OD x 21mm W

BEARING, feeder jackshaft RH, Start Serial: 2830

1шт.

40

185685C1

SHIELD

jackshaft belt, for 47 in. feeder

1шт.

40

185686C1

SHIELD

jackshaft belt, for 54.5 in. feeder

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300496C91

STRIPPER PACKAGE

PACKAGE, feeder jackshaft friction slip clutch, parts accessory, for details refer to this group under feeder fjackshaft drive, S/N 12001 and above

1шт.
