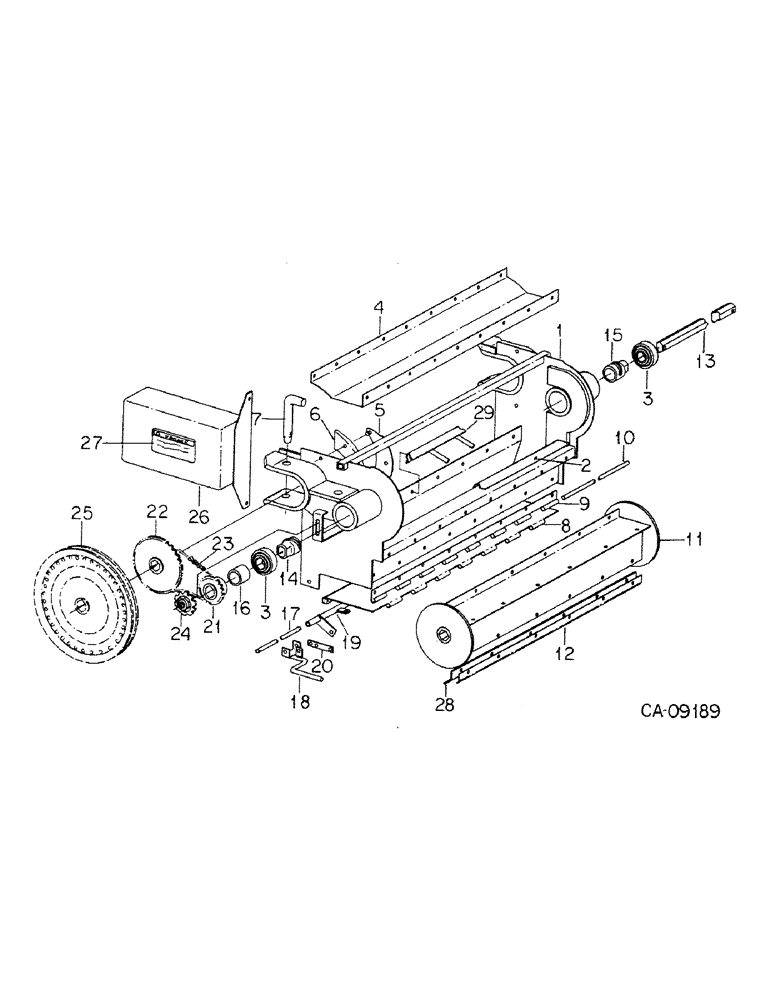

Запчасти Case IH 1460 (33-07) - FEEDER, ROCK TRAP (13) - FEEDER

1

1327628C2

HOUSING

ASSY, rock trap, replaces 1320138C2

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

1шт.

2

1320279C1

ANGLE

rock trap wear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, rock trap beater

2шт.

4

1327925C1

COVER

beater housing, replaces 1320178C1

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

1320254C1

PLATE

ASSY, seal back-up

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

195202C1

SEAL

feeder

2шт.

7

192533C2

ROD

PIN, feeder pivot

2шт.

486830R1

COTTER PIN

PIN, quick attachable cot., replaces 520175R1

1шт.

8

1320152C1

DOOR

ASSY, rock trap

1шт.

9

1320154C1

HINGE

rock trap door

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

1320149C1

ROD

trap door hinge

1шт.

11

1319834C1

BEATER

ASSY, rock trap feed, replaces 1320156C1 and 1324124C1

1шт.

12

1324438C1

SUPPORT

EXTENSION, rock trap blade, replaces 1320158C1

4шт.

12

1320921C2

BLADE

PACKAGE, extension rock trap blade serrated, replaces 1316043C91

4шт.

13

1327502C1

SHAFT

rock trap beater, replaces 1320161C1

1шт.

shaft, 1327502C1 required for use w/feeder reverser

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

14

1320268C1

SPACER

feeder sprocket, LH

1шт.

15

1320269C1

SPACER

feeder sprocket, RH

1шт.

16

162172C1

SPACER

1.81 x 2.25 x 1.94

1шт.

17

1320151C1

ROD

trap door latch

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

18

1320204C1

HANDLE

rock trap door, LH

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4 type 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 CAD p/t lock type 5

1шт.

19

1320148C1

TUBE,560, 180 mm Length

rock trap door

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

1320128C1

LINK

rock trap connecting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

21

1320095C3

DRIVE SPROCKET

SPROCKET ASSY, drive, 16T

1шт.

22

1320095C3

DRIVE SPROCKET

SPROCKET ASSY, driven, 16T

1шт.

22

1320110C3

SPROCKET

ASSY, driven, 33T

1шт.

Ref. 22A Sprocket has 32 teeth, not 33 teeth.

1шт.

23

CHAIN ASSY, used with, 1320095C1 sprockets, use 41 links from 10 ft roll, marked 1793D and 1 connecting link 1786D

1шт.

23

CHAIN ASSY, used with, (1) 1320095C1 sprocket and (1) 1320110C1 sprocket, use links from 10 ft roll, marked 1793D and 1 connecting link 1786D

1шт.

24

629972R91

DRIVE SPROCKET,15T

SPROCKET, beater drive chain 15T, replaces 582018R1

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

.656 x 1.500 x .090 sq/h

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

PULLEY ASSY, reel pump drive, refer to group 10 under hydraulic reel drive with rock trap

1шт.

26

SHIELD ASSY, rock trap drive, includes ref. no. 27, refer to group 10 under hydraulic reel drive with rock trap

1шт.

27

PRODUCR GRAPHIC, danger, refer to group 10 under hydraulic reel drive with rock trap

1шт.

28

1314151C1

ANGLE

beater reinforcing

4шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

29

1320846C1

SUPPORT ASSY.

ANGLE, rock trap

1шт.

1957363C1

LATCH

PACKAGE, rock trap door retro-fit, consists of

1шт.

1324880C1

ANGLE

SEAL, door angle

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

5шт.

1957362C1

SUPPORT

latch stop

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 type 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

1957278C1

LATCH

PACKAGE, latch support, consists of (NSS) support assy

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd type 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5, (NSS) instructions

2шт.

SB 032-1 87-ROCK TRAP DOOR LATCH

1шт.

SB 018 87 - Rock Trap Beater shaft bearing failures

1шт.
