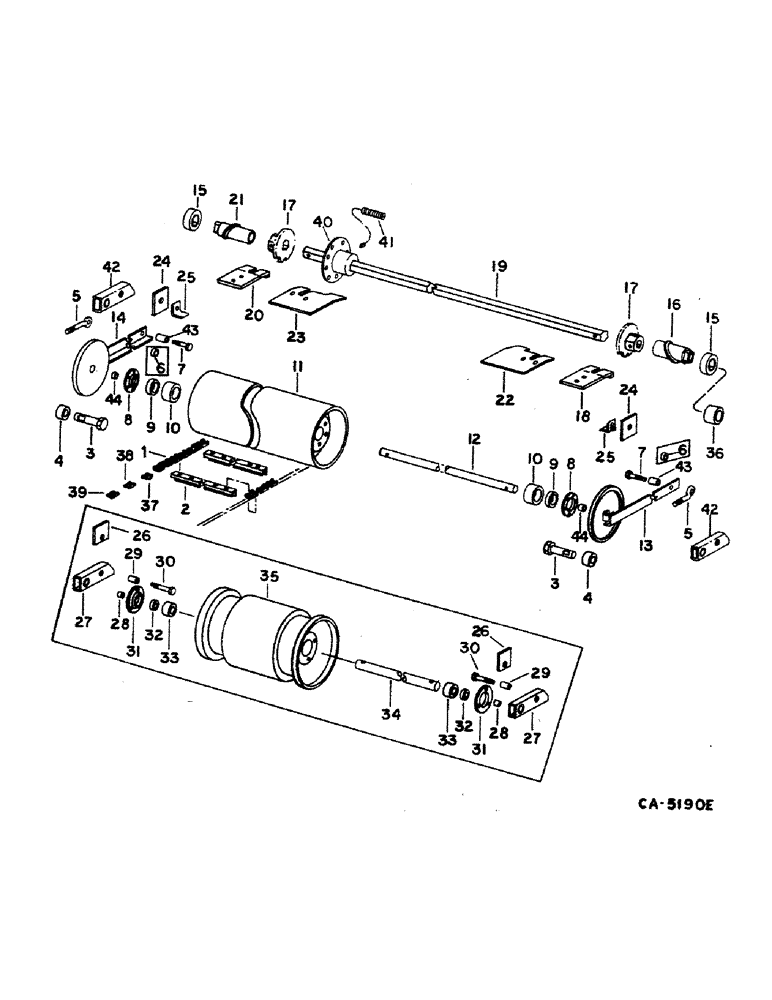

Запчасти Case IH 1460 (33-04) - FEEDER, FEEDER CONVEYOR (13) - FEEDER

1

1319206C91

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313417C91, and 1308271C91, includes ref. no. 2, for 47 in. feeder, for grain

1шт.

1

1319208C91

CONVEYOR

CHAIN ASSY, feed conveyor, replaces 1308272C91, includes ref. no. 2, for 54.5 in. feeder, for grain

1шт.

1

1319201C91

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313187C91 and 182095C91, includes ref. no. 2, for 47 in. feeder, for corn

1шт.

1

1319203C91

CHAIN (AG)

CHAIN ASSY, feed conveyor, replaces 1313188C91 and 182096C91, includes ref.no. 2, for 54.5 in. feeder, for corn

1шт.

1

1305987C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, includes ref no. 2, for 54.5 in. feeder, for rice

1шт.

104279

RIVET,FH, 3/8" x 3/4"

1шт.

2

1313419C1

SLAT

PACKAGE, feed conveyor, replaces 182100C1, includes rivets, for grain & corn, 15 ffor 47 in feeder, 17 for 54.5 in. feder

1шт.

P/N 1313419C1, SB21-88 Bolt on chain slats.

1шт.

2

1300287C1

CONNECTING STRIP

SLAT PACKAGE, feed conveyor, includes rivets, for rice, 9 for 54.5 in. feeder

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

chain tightening clamp

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

4

197211C1

SPACER

feeder drum stop

2шт.

5

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

6

558506R1

SPACER

support arm bolt, w/o stone retarder drum, Serial Range: -52483

2шт.

7

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

drum support arm, Serial Range: -52483

2шт.

7

187218C1

BOLT

drum support arm, w/o stone retarder drum, Start Serial: 52484

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

8

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, drum bearing, w/o stone retarder drum, Serial Range: -52483

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

drum bearing, w/o stone retarder drum, Start Serial: 52484

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

9

455102R21

COLLAR

W/SET SCREW, feed conv. drum brg, w/o stone retarder drum, Serial Range: -52483

2шт.

9

557995R11

COLLAR

W/SET SCREW FEED CONV. DRUM BRG., w/o stone retarder drum, Start Serial: 52484

2шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum, w/o stone retarder drum, Serial Range: -52483

2шт.

10

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feeder conveyor drum, w/o stone retarder drum, Start Serial: 52484

1шт.

11

175975C1

DRUM HUB

DRUM ASSY, feed conveyor, w/o stone retarder drum, Serial Range: -52483

1шт.

11

1319861C2

DRUM BRAKE ASSY

DRUM ASSY, feed conveyor, w/o stone retarder drum, Start Serial: 52484

1шт.

12

175982C2

SHAFT

feed conveyor drum, w/o stone retarder drum, Serial Range: -52483

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

12

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT, feed conveyor drum, without stone retarder drum, Start Serial: 52484

1шт.

13

1305156C1

ARM ASSY.

ARM ASSY, drum support LH, w/o stone retarder drum, Serial Range: -52483

1шт.

13

1319875C1

BRACKET

ARM ASSY, drum support LH, w/o stone retarder drum, rice only, Start Serial: 52484

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

14

1305157C1

ARM

ASSY, drum support RH, w/o stone retarder drum, Serial Range: -52483

1шт.

14

1319876C1

BRACKET

ARM ASSY, drum support RH, w/o stone retarder drum, rice only, Start Serial: 52484

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

15

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, feed conveyor shaft

2шт.

16

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

17

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor chain, 9T

2шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup-point

1шт.

18

185708C1

STRIPPER ASSY.

STRIPPER ASSY, LH, Serial Range: -12000

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD p/t lock type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

washer .015

1шт.

19

197277C2

SHAFT

feed conveyor, used w/o rock trap

1шт.

19

1320160C3

SHAFT

feed conveyor, used with rock trap

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

19

1327791C1

SHAFT

feeder conveyor, used w/feeder reverser with or without rock trap

1шт.

1305393C1

SPACER

2-35/64

1шт.

20

185709C1

STRIPPER ASSY.

STRIPPER ASSY, RH, Serial Range: -12000

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD p/t lock type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

washer .015

1шт.

21

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

22

185818C1

STRIPPER ASSY.

STRIPPER, LH, Start Serial: 12001

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23

185819C1

STRIPPER ASSY.

STRIPPER, RH, Start Serial: 12001

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

187347C1

PLATE

BAR, upper stop, w/o stone retarder drum

2шт.

25

187364C2

ANGLE

ASSY, drum arm upper stop, w/o stone retarder drum

2шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

.656 x 1.250 x .054 sq/h

1шт.

26

187225C1

BAR

upper stop adjusting, w/stone retarder drum

2шт.

27

1305103C1

ARM ASSY.

ARM ASSY, drum stop, replaces 187367C1, w/stone retarder drum

2шт.

28

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/stone retarder drum

2шт.

29

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/stone retarder drum

2шт.

30

187218C1

BOLT

drum support arm, w/stone retarder drum

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

31

202909C1

BEARING HOUSING

FLANGE, drum bearing, w/stone retarder drum, replaces 2, 565631R1

4шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

32

557995R11

COLLAR

W/SET SCREW, feed conveyor drum bearing, w/stone retarder drum

2шт.

33

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feed conveyor drum, w/stone retarder drum

2шт.

34

187207C2

SHAFT,31.75mm OD x 909.3mm L

feed drum, w/stone retarder drum

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

35

1957348C1

BRAKE ASSY.

DRUM ASSY, feed conveyor, w/stone retarder drum, replaces 187195C3 by also ordering 4, flanges 202909C1

1шт.

36

162172C1

SPACER

feeder pivot shaft LH

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

37

182090C1

LINK,Chain, 41.4mm Pitch

LINK, conveyor attaching

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

38

182094C1

LINK,Chain, Link, 41.4mm

conveyor connecting

1шт.

39

182127C1

LINK,41.4mm Pitch

conveyor offset, for use with feed conveyor chain assys, 1319201C91 and 1319208C91

1шт.

40

1305665C1

DISC

FLANGE ASSY, converter pickup

1шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup

1шт.

41

1301241C1

SENSOR

CONVERTOR, feeder pickup

1шт.

107827

NUT,Stamped, 3/4"-16

3/8 C-Z stamped

1шт.

42

1305103C1

ARM ASSY.

ARM ASSY, drum support, w/o stone retardere drum, grain and corn only, Start Serial: 52484

2шт.

43

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/o stone retarder drum, Start Serial: 52484

2шт.

44

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/o stone retarder drum, Start Serial: 52484

2шт.

1300464C91

PACKAGE

feeder pivot strippers, consists of, (NSS) support, pivot LH, (NSS) support, pivot RH, (NSS) instructions

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
