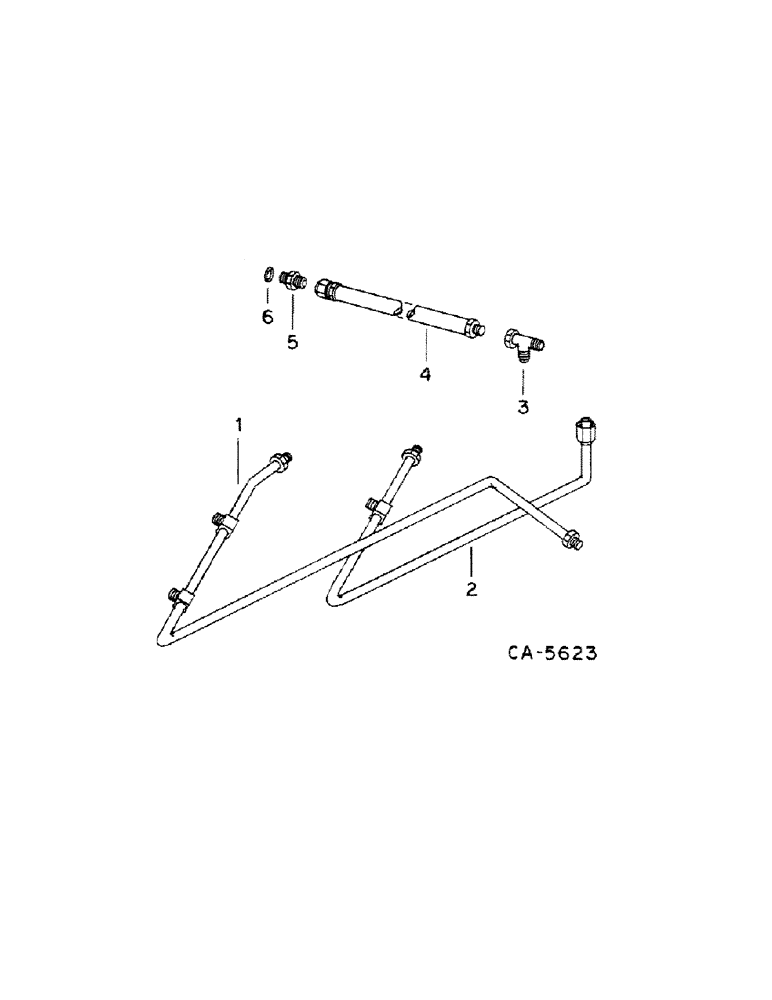

Запчасти Case IH 1460 (10-76) - HYDRAULICS, HEADER LIFT CYLINDER TUBING, USED W/ACCUMULATOR ATTACHMENT, S/N 1500 AND BELOW (07) - HYDRAULICS

1

196785C1

HYD TUBE

TUBE ASSY, header lift cylinder, for third lift cylinder

1шт.

2

196820C2

TUBE

ASSY, header lift cylinder, not for third lift cylinder

1шт.

3

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 37 deg

1шт.

4

468801R92

HOSE

ASSY, accumulator

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg flared

1шт.

5

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg flared

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 in. OD

1шт.
