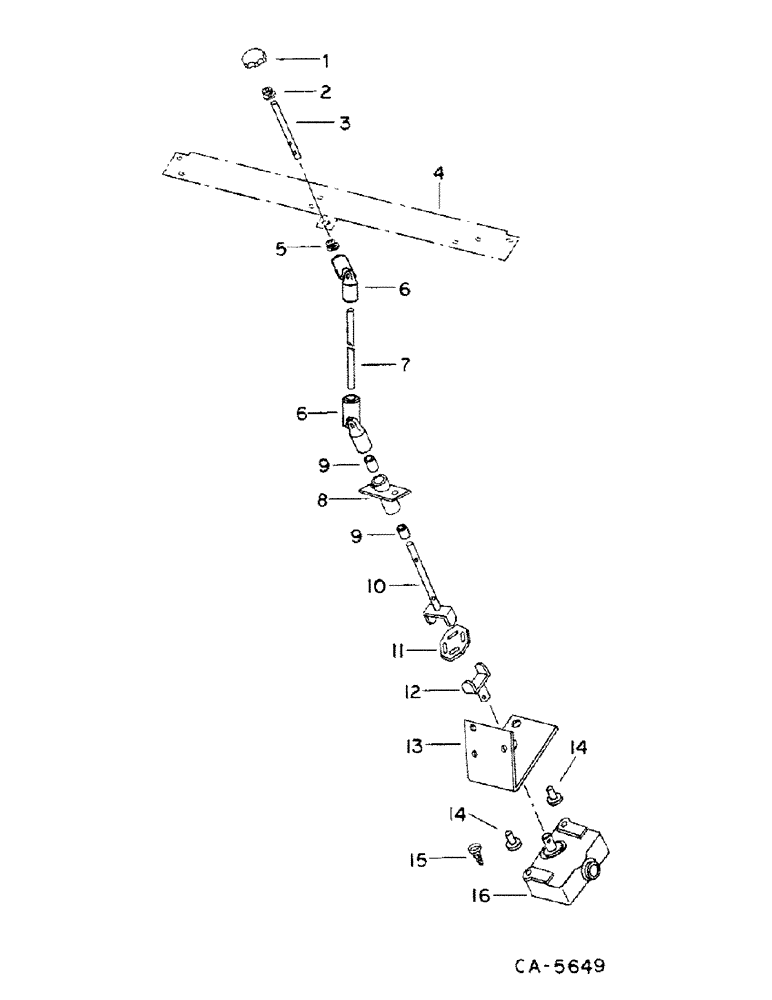

Запчасти Case IH 1460 (10-63) - HYDRAULICS, REEL DRIVE CONTROL, S/N 22000 AND BELOW (07) - HYDRAULICS

1

198941C1

KNOB

reel speed control rod

1шт.

2

196671C1

BUSHING

control upper shaft

1шт.

3

196670C1

PIN

reel speed control upper

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

4

SUPPORT ASSY, right console outer, refer to group 13 under RH console

1шт.

5

893424R1

BUSHING

control upper shaft

1шт.

6

196672C1

JOINT

control shaft universal

2шт.

7

193249C1

ROD

control center

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

8

196675C91

HUB

ASSY, control lower, includes Ref. no. 9

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

9

401838R1

BUSHING

control lower pivot

2шт.

10

196674C1

YOKE

ASSY, control isolation coupling upper

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

11

198858C1

PAD

isolation coupling

1шт.

12

196679C1

YOKE

ASSY, isolation coupling lower

1шт.

20238R1

CLEVIS,1/4" x 1/2"

PIN, .1875 x 1.5 znd cotter

1шт.

13

193251C1

SUPPORT

flow divider mounting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

14

195644C1

GROMMET

MOUNT, vibration isolation, this part is threaded

2шт.

15

174786C1

FILTER

flow divider

1шт.

16

174785C92

VALVE

ASSY, reel drive flow, includes Ref. no. 15

1шт.

18771R1

BOLT,Hex, 5/16"-18 x 3", G2

5/16 x 3 znd hex-hd mach, consists of

1шт.

O-RING, 3/32 x 13/16 ID (NSS)

2шт.

O-RING, 3/32 x 5/8 ID (NSS)

1шт.

O-RING, 1/16 x 7/16 ID (NSS)

1шт.

O-RING, 1/16 x 1/2 ID (NSS)

1шт.

WASHER, back-up 3/32 x 5/8 ID (NSS)

1шт.

WASHER, back-up 1/16 x 7/16 ID (NSS)

1шт.

174787C91

PACKAGE, REPAIR

KIT, seal repair

1шт.
