Артикул
Название
Примечание
Количество
1

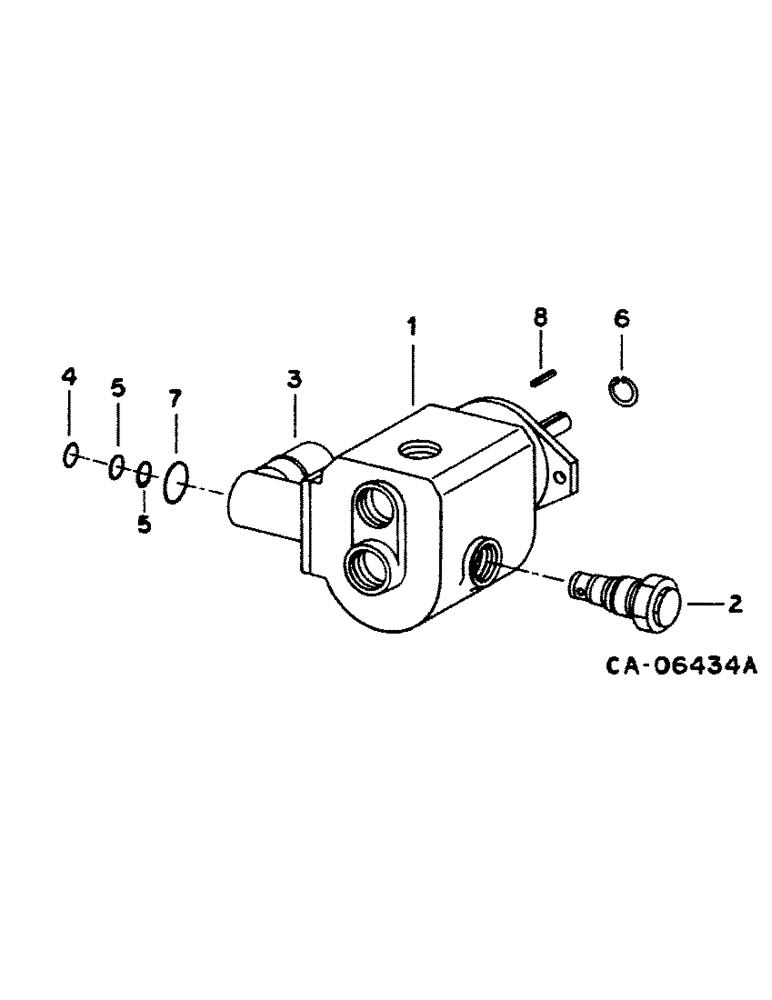

PUMP ASSY, reel drive, furnish reel pump service kit, 1315475C91
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
2
1301996C1
VALVE
ASSY, pump
1шт.
3
1301336C1
MOTOR, ELECTRIC
MOTOR ASSY, pump, includes Ref. nos. 4 and 5
1шт.
4
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6
1шт.
5
379366R1
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
5/16 x 7/16 class 6
2шт.
6
273026R1
SNAP RING,1.375", Int, #137
RING, 1.526 int ret
1шт.
7
379181R1
O-RING,0.614" ID x 0.07" Width
5/8 x 3/4 class 5
1шт.
8
474098R1
KEY,3/16" Sq x 1 1/4", Par
sq. parallel 3/16 x 1-1/4
1шт.
1301986C1
KIT
SEAL KIT, pump
1шт.
1315475C91
PACKAGE
KIT, real pump service, consists of
1шт.
198409C2
SUPPORT
pump
1шт.
1272633C91
HYDRAULIC PUMP,46.7 CC
PUMP
1шт.
1282383C1
FITTING,1-5/8" - 12 ORB x
CONNECTOR, 1-5/8-12 x 1 in., beaded
1шт.
307915R1
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1-1/4 OD tube
1шт.
633460R91
ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring
3/4 to 5/8 C-Z adj. flared
1шт.
368269R1
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
3/4 OD tube
1шт.
1315460C1
HOSE,12.7mm ID x 900mm L, SAE 100R7
pump to flow divider
1шт.
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
2шт.
1315461C1
BRACKET
reel speed valve
1шт.
1282369C91
VALVE
reel drive
1шт.
540858R1
BOLT,Hex Serr, 1/2" - 13 x 1 1/2"
1/2 x 1-1/2 hex-hd flange
2шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
1/2 flange lock
2шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 hex-hd flange lock
2шт.
113-133
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
NUT, 5/16 flange lock (Replaces 938017R1)
2шт.
180375
BOLT, 5/16 x 3-1/4
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
126156
SET SCREW,Sq Hd, 3/8"-16 x 7/8"
SCREW, 3/8 x 3/4 sq/hd c/pt set
2шт.
25932R1
JAM NUT,Jam, 3/8"-16, G5
3/8 jam
2шт.
INSTRUCTIONS (NSS)
1шт.
Выбрано товаров: 34
