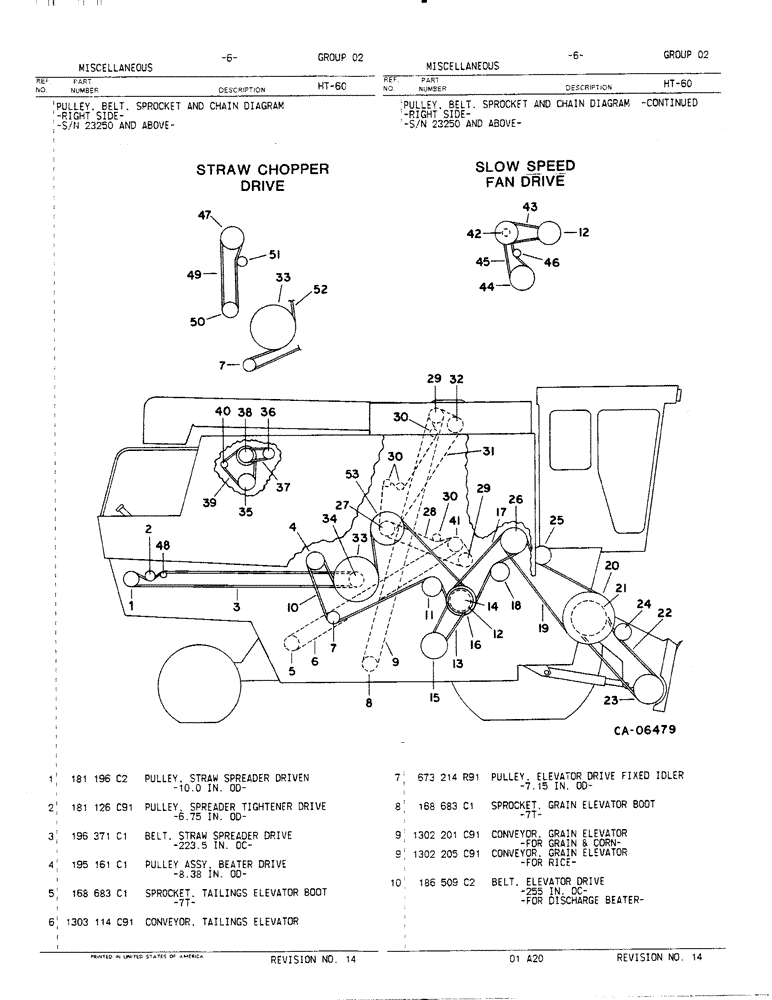

Запчасти Case IH 1460 (02-06) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE, S/N 23250 AND ABOVE Accessories & Attachments / Miscellaneous

1

181196C2

PULLEY

straw spreader driven, 10.0 in. OC

1шт.

2

181126C91

PULLEY

spreader tightener drive, 6.75 in. OD

1шт.

3

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive, OC 0.630" W x 222.59" L

1шт.

4

195161C1

PULLEY

ASSY, beater drive, 8.38 in. OD

1шт.

5

168683C1

SPROCKET

tailings elevator boot, 7T

1шт.

6

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR, tailings elevator

1шт.

7

673214R91

PULLEY

elevator drive fixed idler, 7.15 in. OD

1шт.

8

168683C1

SPROCKET

grain elevator boot, 7T

1шт.

9

1302201C91

ELEVATOR CHAIN,CA550, 150 Links x 41.4mm = 6210mm

CONVEYOR, grain elevator, for grain and corn

1шт.

9

1302205C91

CONVEYOR

grain elevator, for rice

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC, For discharge beater 0.879" W x 255.99" L

1шт.

11

673214R91

PULLEY

elevator drive

1шт.

12

PULLEY ASSY, fan driver, refer to group 24 under fan drive

1шт.

13

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

14

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, elevator jackshaft drive, 9.75 in. OD

1шт.

15

PULLEY ASSY, fan driven, refer to group 24 under fan drive

1шт.

16

183325C1

PULLEY

ASSY, cleaning unit drive, 13.0 in. OD

1шт.

17

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, OC 0.879" W x 112.19" L

1шт.

18

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive idler, 8.0 in. OD

1шт.

19

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

V-BELT , Feeder drive, OC 22.225 mm W x 3814.70 mm L, 3, Ribs

1шт.

20

1305297C1

PULLEY

feeder driven, 22.56 in. OD

1шт.

21

1305288C1

PULLEY

feeder jackshaft drive, 16.70 in. OD

1шт.

22

1313095C2

V-BELT,131.69" L

Feeder Jackshaft Drive, for 47 Inch Feeder 131.69" L

1шт.

22

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Feeder Jackshaft, for 54.5 Feeder 22.33 mm W x 3706.69 mm L

1шт.

23

176573C4

PULLEY

feeder jackshaft driven, 13.5 in. OD

1шт.

24

176579C1

IDLER

jackshaft drive tightener, 8.0 in. OD

1шт.

25

174757C1

PULLEY

feeder drive idler, 8.0 in. OD

1шт.

26

191603C2

PULLEY

feeder drive, 12.0 in. OD

1шт.

27

192139C2

SPROCKET

ASSY, grain & tailings elevator drive, 25T

2шт.

28

CHAIN ASSY, tailings elevator drive, use 153 links from a 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

29

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 7T

1шт.

29

188188C1

SPROCKET ASSY.

SPROCKET, grain and tailings elevator driven, 27T

2шт.

30

631905R91

SPROCKET

grain and tailings elevator drive idler, 17T

1шт.

31

CHAIN ASSY, grain elevator drive, for grain & corn, use 259 links from 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

31

CHAIN ASSY, grain elevator drive, for rice, used 289 links from 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

32

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator driven, 33T, for grain & corn, slow speed

1шт.

32

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator driven, for grain and corn, 27T, fast speed

1шт.

32

183177C1

DRIVE SPROCKET

SPROCKET, grain elevator driven, 42T, for rice

1шт.

32

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator driven, 24T, parts accessory, grain, corn and rice

1шт.

33

193682C1

PULLEY

ASSY, shaker shaft driven, 25.0 in. OD

1шт.

34

566516R91

PULLEY ASSY.

PULLEY ASSY, straw spreader drive, 9.75 in. OD

1шт.

35

DAMPER ASSY, vibration, refer to ENG - 5 engine catalog

1шт.

36

143406C1

PULLEY ASSY.

PULLEY ASSY, compressor

1шт.

37

874097C1

V-BELT,39.50" L

Compressor 39.50" L

1шт.

38

PULLEY, water pump and air conditioner drive, refer to ENG-5 engine catalog

1шт.

39

537072R91

SET OF BELTS

Matched, Engine fan

1шт.

40

PULLEY, alternator, generator, refer to group 8 under alternator generator and mountings

1шт.

41

168683C1

SPROCKET

tailings elevator head, 7T

1шт.

41

188188C1

SPROCKET ASSY.

SPROCKET, tailings elevator head, 27T

1шт.

42

181360C1

PULLEY ASSY.

PULLEY ASSY, slow speed fan jackshaft, 5 in. OD

1шт.

43

181359C1

BELT,1.25" W x 66.54" L

V-BELT , Fan jackshaft, OC 1.25" W x 66.54" L

1шт.

44

564569R11

PULLEY ASSY.

PULLEY ASSY, fan, hub, 12.68 in. OD

1шт.

45

610521R1

V-BELT

Slow speed fan jackshaft, 76 in. OC

1шт.

46

564745R91

PULLEY

idler, 5.5 in. OD

1шт.

47

181081C1

PULLEY

chopper drive, 12 in. OD

1шт.

48

181127C1

PULLEY

idler

1шт.

49

181012C1

BELT,0.630" W x 94.09" L, 2 Ribs

V-BELT , Straw chopper drive, OC 0.630" W x 94.09" L, 2 Ribs

1шт.

50

181080C1

PULLEY

chopper driven, 6 in. OD

1шт.

51

181133C91

PULLEY ASSY.

PULLEY ASSY, chopper drive idler

1шт.

52

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Cleaning unit drive, OC, For use w/straw chopper 0.879" W x 200.99" L

1шт.

53

183325C1

PULLEY

ASSY, jackshaft driven, 13.0 in. OD

1шт.
