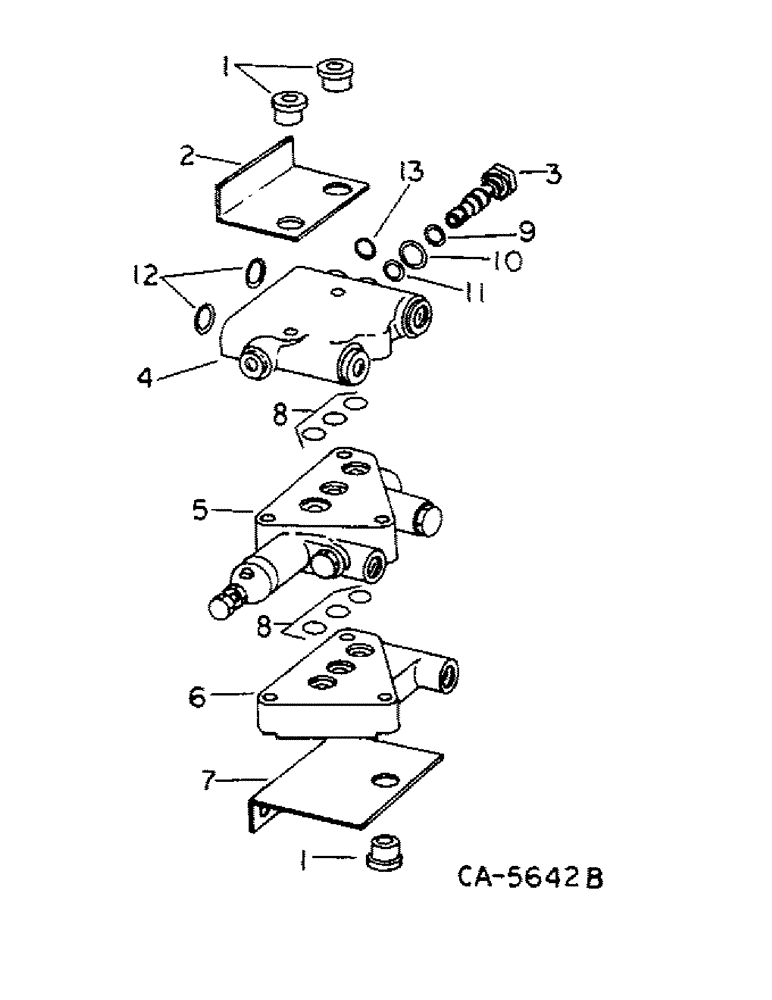

Запчасти Case IH 1460 (10-49) - HYDRAULICS, HEADER LIFT VALVE ASSY, S/N 22000 AND BELOW (07) - HYDRAULICS

1

196504C1

BUSHING

header lift valve

3шт.

2

193258C1

SUPPORT

header lift valve mounting upper

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

167447C91

VALVE

ASSY, relief, includes Ref. nos. 9 thru 11

1шт.

3

179666C2

SHUT-OFF VALVE

VALVE ASSY, 2250 psi, includes Ref. nos. 9 thru 11 for use when combine is equipped with 8 row corn head

1шт.

4

187892C94

VALVE, CHECK

VALVE ASSY, LH port plate, includes Ref. nos. 12 and 13

1шт.

5

VALVE ASSY, refer to this group under header lift valve

1шт.

6

166882C1

VALVE

RH end plate

1шт.

7

196571C1

ANGLE

header lift valve mounting lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4

6шт.

9

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4

1шт.

10

587585R1

WASHER

back-up

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3/32 x 11/16

2шт.

13

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/32 x 9/16

1шт.

166883C91

PACKAGE

KIT, seal, consists of

1шт.

KIT, port plate repair

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/32 x 9/16 ID

1шт.

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3/32 x 11/16 ID

2шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8 ID

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

1шт.

673644R1

WASHER

3/32 x 5/8 back-up

1шт.

KIT, between sections

2шт.

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4 OD

6шт.

159383C91

PACKAGE

KIT, seal repair

1шт.
