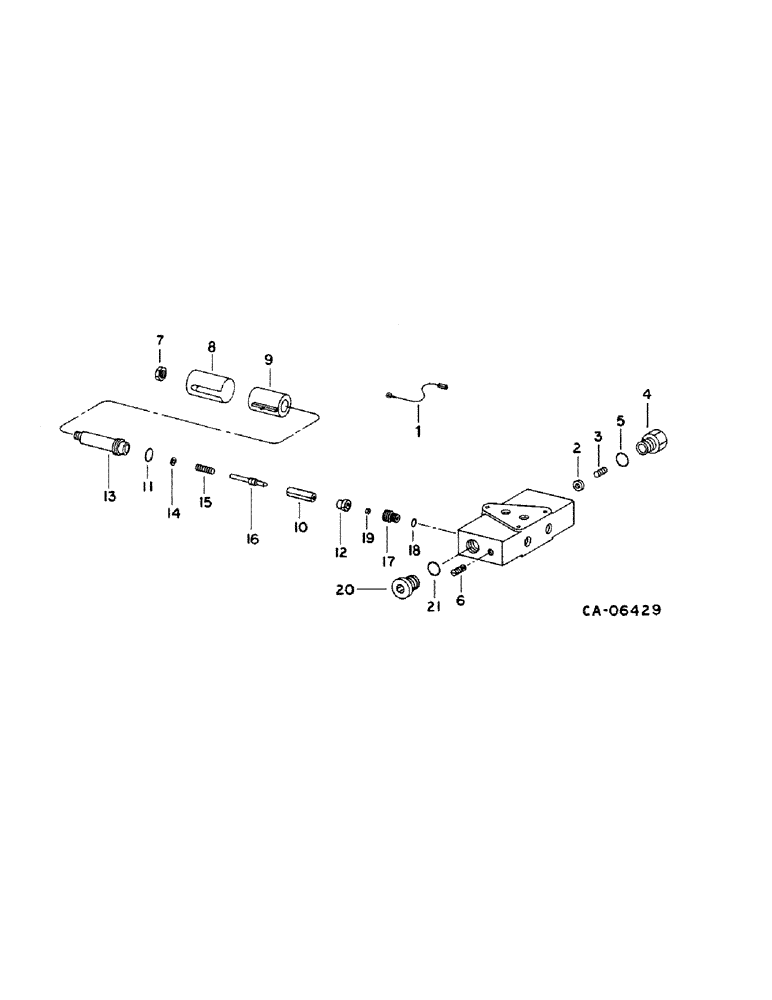

Запчасти Case IH 1460 (10-47) - HYDRAULICS, FEEDER AND SEPARATOR CLUTCH VALVE, CONTROL CONCEPTS (07) - HYDRAULICS

1301171C91

VALVE

ASSY, feeder and separator clutch, includes Ref. nos. 2 thru 21

2шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

1/4 x 2-1/4 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

1

187736C1

CABLE

ASSY, clutch valve

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

2

1301687C1

WASHER

WASHER, spring

1шт.

3

1301728C1

SPRING

1шт.

4

1301686C1

CAP

PLUG, end

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

6

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

STUD, seal

1шт.

7

107825

NUT,Stamped, 1/2"-20

1/2-NF cad stamped

1шт.

8

1301632C1

CAP

coil

1шт.

9

1301730C1

VALVE

SWITCH

1шт.

10

1301648C1

ARMATURE

BUSHING

1шт.

11

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 class 6

1шт.

12

1301624C1

BUSHING

1шт.

13

1301627C1

STUD

ASSY

1шт.

14

1301624C1

BUSHING

WASHER

1шт.

15

1301729C1

SPRING

1шт.

16

1301647C1

POPPET

PIN, bi-direct

1шт.

17

1301625C1

ORIFICE

PISTON

1шт.

18

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

1шт.

19

1301649C1

PLUG

PLUG, orifice

1шт.

20

1301688C1

PLUG

7/8-14

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

1шт.
