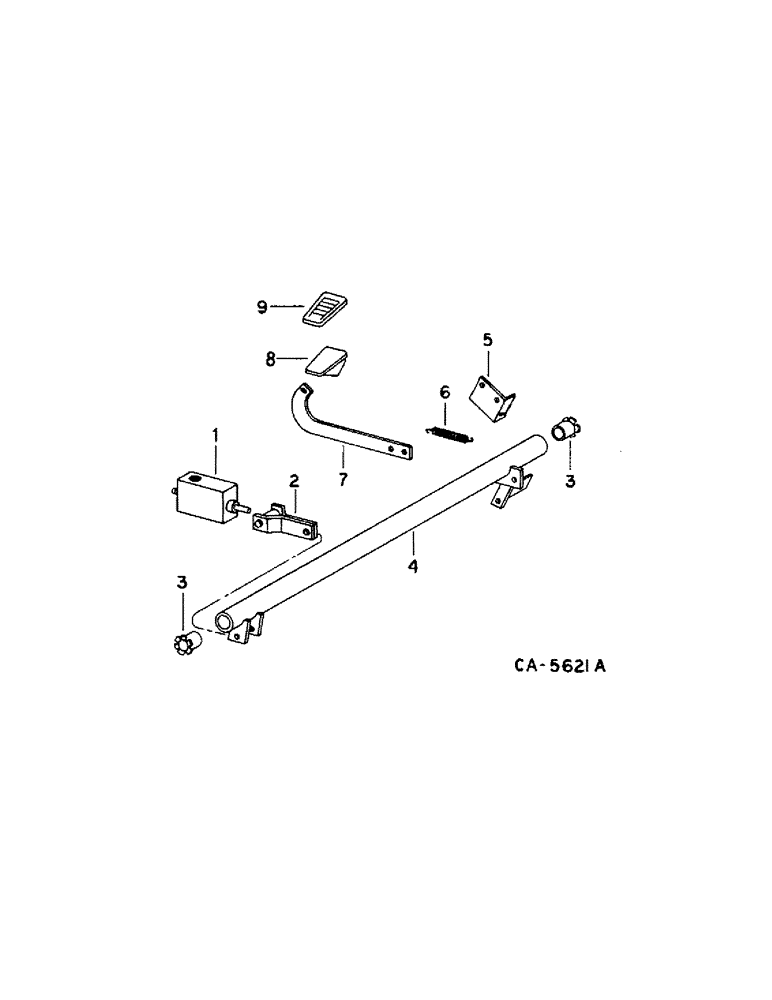

Запчасти Case IH 1460 (10-45) - HYDRAULICS, FOOT-N-INCH AND CONTROLS, S/N 23248 AND BELOW (07) - HYDRAULICS

1

VALVE ASSY, foot-n-inch, for details refer to this group under foot-n-inch valve

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znp flange lock

1шт.

2

165504C91

YOKE

ASSY, foot-n-inch valve

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x .940 phc clevis

1шт.

3

277523R1

BUSHING

pedal lever pivot tube

2шт.

591715R1

WASHER

1.03 x 1.50 x .054 znd

1шт.

4

195563C1

TUBE ASSY.

PIVOT ASSY, foot-n-inch pedal lever

1шт.

5

195582C1

BRACKET

safety starting switch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

6

635503R1

SPRING,148.8mm Free Length

foot-n-inch pedal return

1шт.

7

184166C2

SUPPORT ASSY.

SUPPORT, hydrostatic drive foot-n-inch pedal, replaces 192970C1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

8

163425C1

PEDAL

foot-n-inch

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

863426R1

PAD

foot-n-inch lever pedal

1шт.
