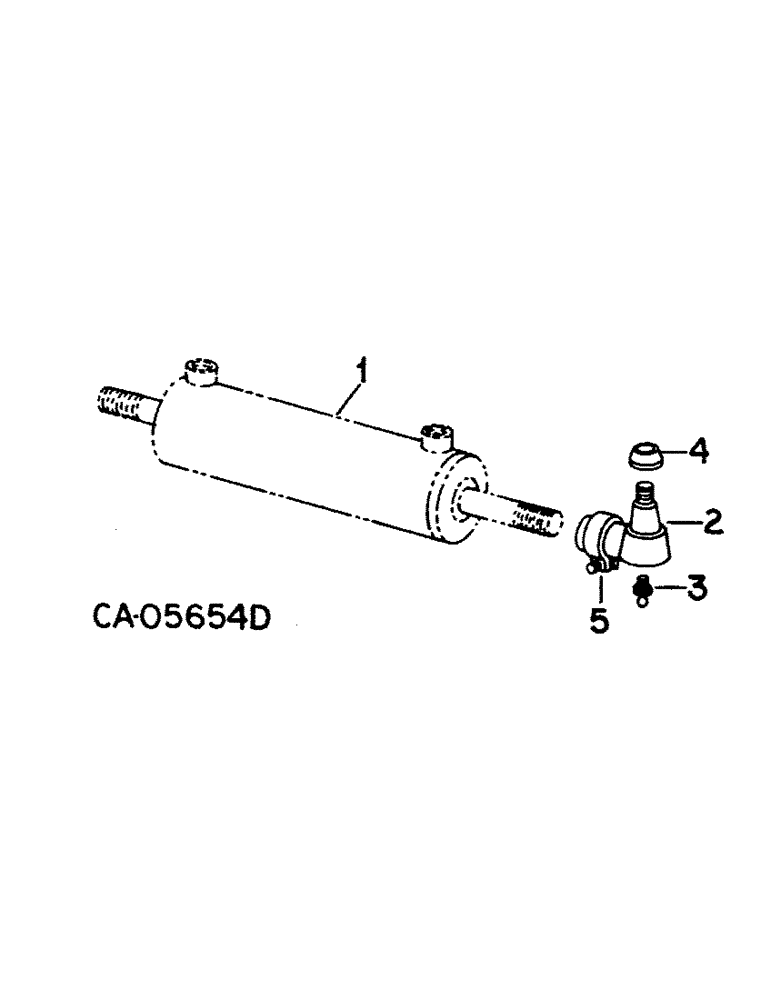

Запчасти Case IH 1460 (10-44) - HYDRAULICS, STEERING CYLINDER, WITH OUT POWER GUIDE WHEELS (07) - HYDRAULICS

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSY, steering for service parts refer to cyl-1 section B

1шт.

2

186796C1

BALL JOINT

SOCKET ASSY, steering cyl end, for grain & corn, includes Ref. no. 5

2шт.

NLS

NO LONGER SERVICED

5/8-18 znd slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21712R1

WASHER

.72 x 1.5 x .105

1шт.

2

181335C91

BALL JOINT

SOCKET ASSY, steering cyl end, for rice, Inc. 5

2шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub, used with 186796C1

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, used with 181335C91 1/8"-27 x .66 lg

1шт.

4

382562R1

SEAL

steering cylinder end socket, used with 186796C1

2шт.

4

110373R1

DUST CAP

SEAL, steering cylinder end socket, used with 181335C91

2шт.

5

384371R1

CLAMP

ASSY, socket assy, used with 186796C1

2шт.

5

446308C91

CLAMP

ASSY, socket end, used with 181335C91

2шт.

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

7/16 x 1-7/8 type 5

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 cad p/t lock type 5

1шт.

548357R91

SEAL KIT

cylinder service

1шт.
