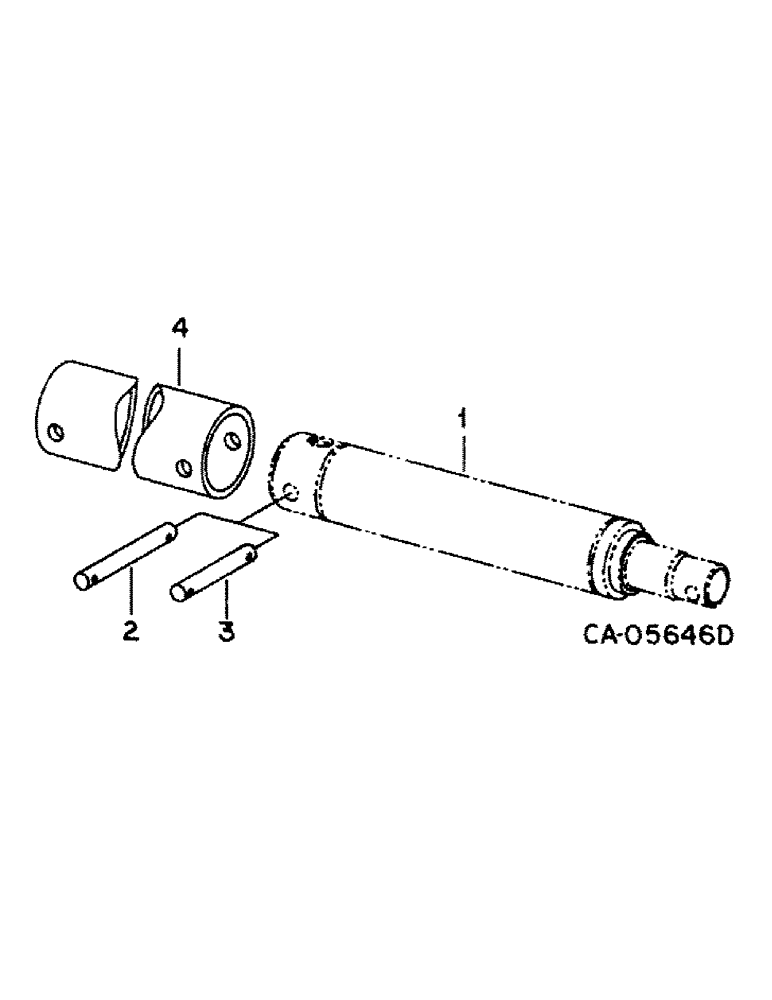

Запчасти Case IH 1460 (10-43) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, hydraulic, for service parts refer to cyl-1 section A

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1460 CASE IH AXIAL-FLOW COMBINE (NORTH AMERICA), Assy, hydraulic (1/77-12/84)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

header lift cylinder, used w/third cylinder

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder, 2 used w/third cylinder,. 4 used w/o third cylinder

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

4

1319896C1

SUPPORT ASSY.

EXTENSION, lift cylinder, 8.27 in. 210mm, replaces 1302617C1, 47 in. feeder

1шт.

4

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

EXTENSION, lift cylinder, 12.23 in., 310.75mm, replaces 1320145C1, 54.5 in. feeder

1шт.

See S5042

1шт.

P/N 1320845C1 10" OA, 8" Hole to Hole.

1шт.

1314137C1 Is Tube Ext. 14.25".

1шт.
