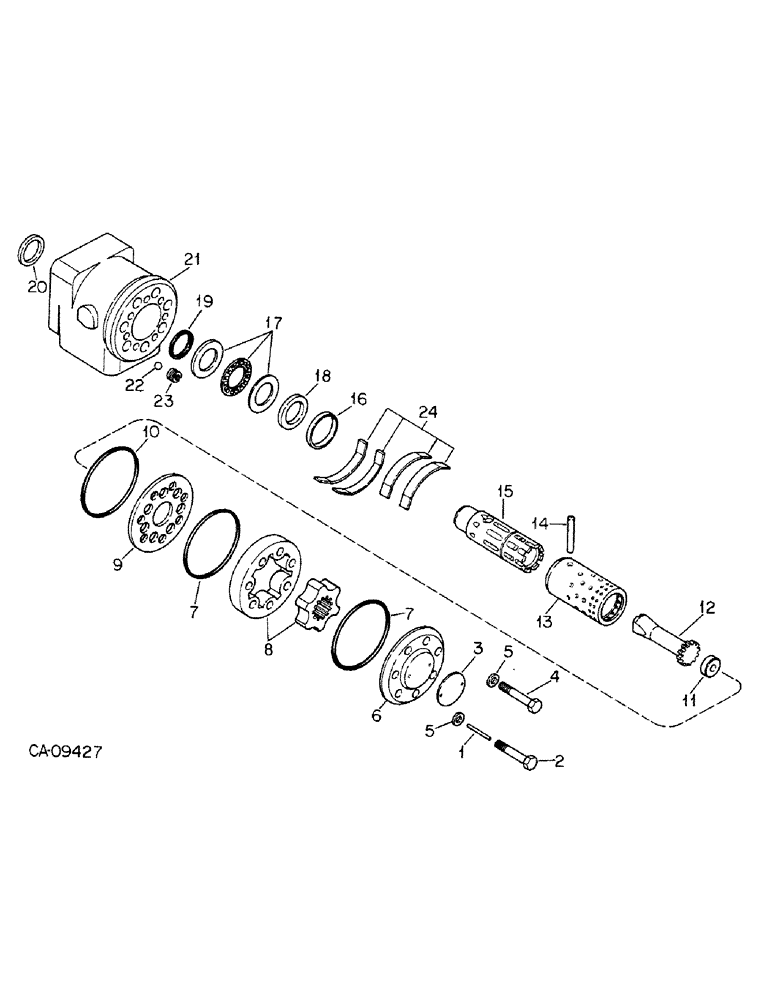

Запчасти Case IH 1460 (10-42) - HYDRAULICS, STEERING HAND PUMP, DANFOSS, S/N 52001 AND ABOVE (07) - HYDRAULICS

1272798C92

VALVE, CONTROL

PUMP ASSY, hand

1шт.

See SB08987 - DanFoss hand pump changes

1шт.

1

3112271R1

PIN, ROLL

PIN. 2mm x 32mm roll

1шт.

2

1272791C1

SCREW

1шт.

3

PLATE, rating with screws

1шт.

Not serviced separately, order pump 1272798C92.

1шт.

4

3216710R1

SCREW

BOLT, M8 x 40 hex-hd

6шт.

5

WASHER

7шт.

Order Seal Repair Kit, 1500443C91

1шт.

6

1272805C1

COVER

end

1шт.

7

O-RING, 76mm x 2mm, note B

2шт.

Order Seal Repair Kit, 1500443C91

1шт.

8

1272804C1

GEAR

SET, gear

1шт.

9

1272803C1

PLATE

1шт.

10

O-RING, 80mm x 1mm, note B

1шт.

Order Seal Repair Kit, 1500443C91

1шт.

11

1272802C1

SPACER

1шт.

12

1272797C1

SHAFT

1шт.

13

SLEEVE

1шт.

Not serviced separately, order pump 1272798C92.

1шт.

14

1272796C1

CROSS PIN

1шт.

15

SLEEVE

1шт.

Not serviced separately, order pump 1272798C92.

1шт.

16

RING

1шт.

Not serviced separately, order pump 1272798C92.

1шт.

17

1272808C1

NEEDLE BEARING

needle bearing

1шт.

18

RING, note B

1шт.

Order Seal Repair Kit, 1500443C91

1шт.

19

SEAL, note B, replaces o-ring

1шт.

Order Seal Repair Kit, 1500443C91

1шт.

20

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

seal

1шт.

21

HOUSING

1шт.

Not serviced separately, order pump 1272798C92.

1шт.

22

1272794C1

BALL

1шт.

23

1272793C1

BUSHING

1шт.

24

1272809C1

PACKAGE

KIT, spring

1шт.

1500443C91

SEAL KIT

KIT, o-ring and seal repair, replaces 3141548R91

1шт.

See SB 89.1 - 87. 314158R91 - Seal Kit

1шт.

Note B, order seal repair kit, 1500443C91

1шт.
