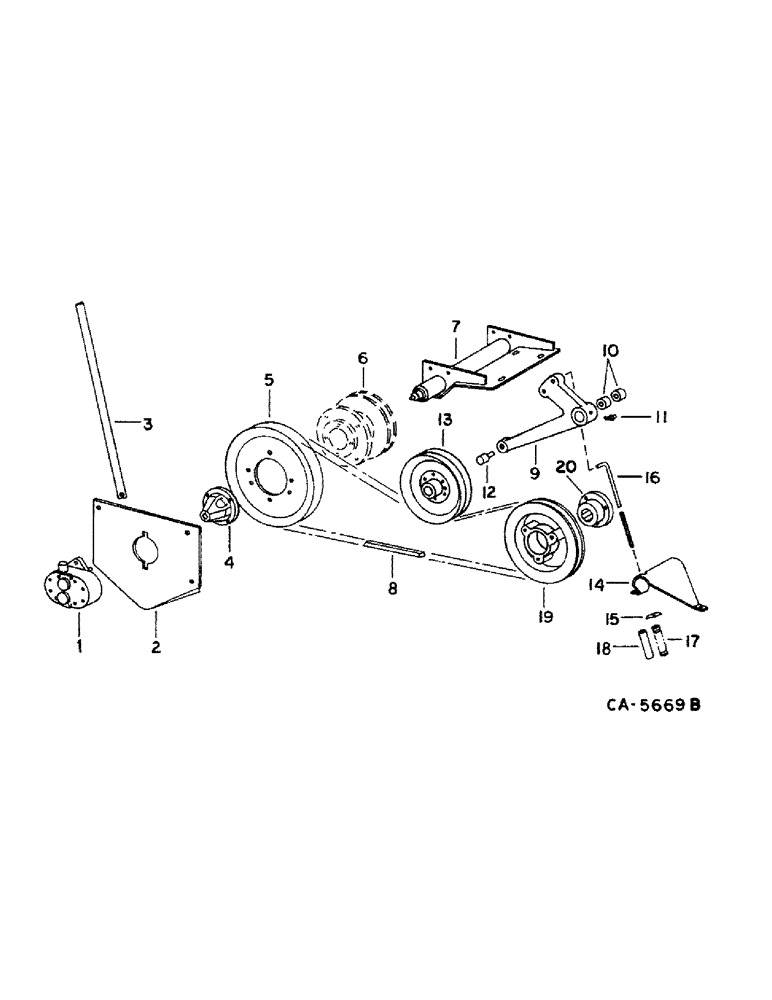

Запчасти Case IH 1460 (10-38) - HYDRAULICS, AUXILIARY HYDRAULIC PUMP, HEADER LIFT (07) - HYDRAULICS

1

1272257C91

PUMP, HYDRAULIC

PUMP ASSY, header lift, cessna, 12 gpm, replaces 195704C91 and 195706C91

1шт.

This pump Assy is not 3/8-16 LH thread.

1шт.

P/N ZA703292, keys go with Pump Assy.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

2

192958C2

BAR

hydraulic pump

1шт.

3

192957C1

ANGLE

hydraulic pump plate

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

4

191207C1

HUB

hydraulic pump

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

192943C1

PULLEY ASSY.

PULLEY ASSY, auxiliary shaft driven, 11.65 in. OD

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

47-410

RIVET,FH, 1/4" x 5/8"

1/4 x 5/8 flat-hd

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

PULLEY ASSY, auxiliary pump drive, refer to group 26 under grain tank unloader drive

1шт.

7

191203C1

SUPPORT

ASSY, auxiliary drive rear, not used with straw chopper, Serial Range: -23400

1шт.

Has 2 mounting holes on the end.

1шт.

7

181338C1

SUPPORT ASSY.

SUPPORT ASSY, auxiliary drive rear, all machines with straw chopper, Start Serial: 23401

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/3 x 1-1/4 znd sq-nk crg type

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad p/t lock type 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

21211R1

WASHER

.781 x 1.5 x .164 znd

1шт.

8

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Auxiliary pump drive, OC 0.879" W x 96.11" L

1шт.

9

192946C92

LEVER ASSY.

LEVER ASSY, auxiliary pump drive, includes Ref. no. 10

1шт.

10

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

auxiliary pump drive lever

2шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 45 deg self-tap lub

1шт.

12

274844R91

BEARING ASSY,30mm OD x 73.66mm L

flat idler pulley

1шт.

13

192865C1

PULLEY

ASSY, flat idler, 8 in. OD

1шт.

14

192092C1

SUPPORT

auxiliary pump drive pivot

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/3 znd flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

194652C1

PIVOT

BAR, auxiliary drive pivot

1шт.

16

182752C1

ROD

auxiliary drive jackshaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

17

SPRING, auxiliary drive rod, used with spacer 1-1/8 OD x 5, order package 1300023C1

1шт.

17

V368

SPRING

auxiliary drive rod, used with 181119C1

1шт.

18

SPACER, auxiliary drive rod, 1-1/8 OD x 5, order package 1300023C1

1шт.

18

181119C1

SPACER

auxiliary drive rod, 1-3/16 OD x 5.83

1шт.

19

186701C1

PULLEY

auxiliary pump drive, Serial Range: -9956

1шт.

19

196481C1

PULLEY

auxiliary pump drive, 9.25 in. OD, Start Serial: 9957

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1/2 x 2-1/2 type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

20

196482C2

HUB

pump drive pulley, Start Serial: 9957

1шт.

178385C2

SEAL KIT

seal repair, for use w/pump 195706C91, Webster pump

1шт.

168318C93

SEAL KIT

seal repair, for use w/pump 195704C91, Cessna pump

1шт.

1272638C2

SEAL KIT

KIT, seal repair, for use w/pump 1272257C91

1шт.

1300023C1

SPRING

PACKAGE, tightener spring and spacer, consists of, (1) spring V368, (1) spacer 181119C1

1шт.
