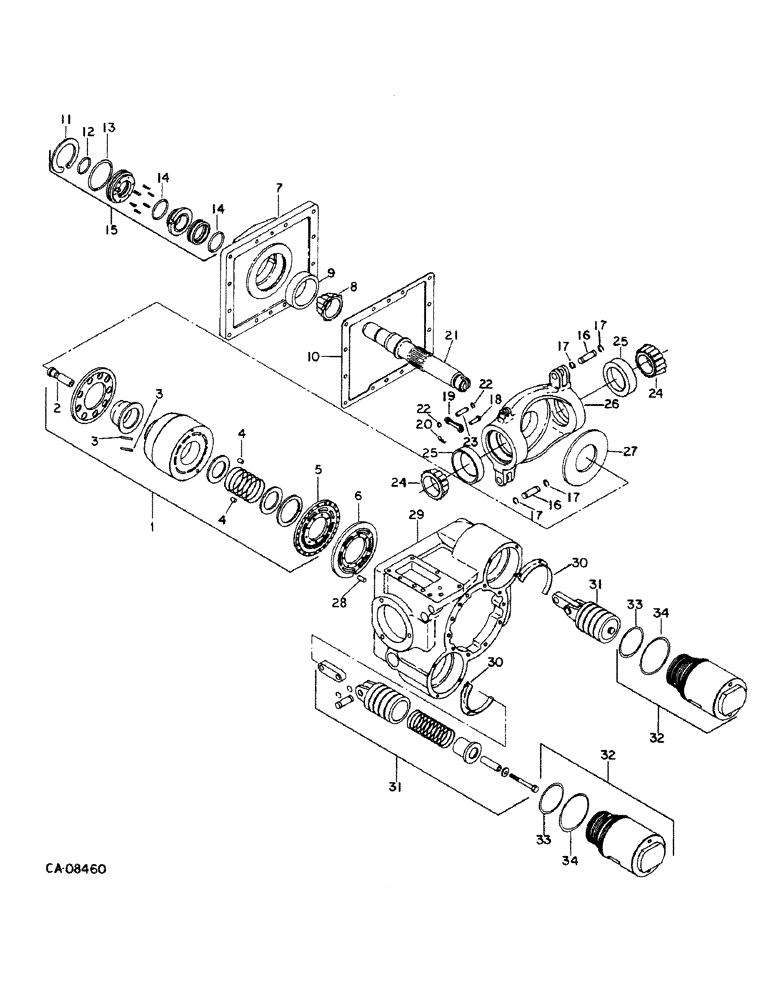

Запчасти Case IH 1460 (10-34) - HYDRAULICS, HYDROSTATIC MOTOR, 2 SPEED, EATON, CYLINDER BLOCK (07) - HYDRAULICS

1252342C93

MOTOR, HYDRAULIC

MOTOR ASSY, hydrostatic drive, renewed

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

166506C1

GASKET,0.81mm Thk

hydrostatic motor

1шт.

1

142392C92

KIT

rotating group

1шт.

2

142393C1

PISTON ASSY.

PISTON, cylinder block

9шт.

3

142394C1

PIN

pre-load dowl

6шт.

4

140754C1

PIN

bearing plate dowl

2шт.

5

142395C1

PLATE

bearing

1шт.

6

142396C2

PLATE

RH pump valve

1шт.

7

FLANGE, mounting, not serviced separately, order pump 1252342C93

1шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 phc type 8

1шт.

8

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING ASSY, input shaft cone

1шт.

9

ST987

BEARING CUP

BEARING INPUT SHAFT CUP

1шт.

10

142399C1

GASKET

mounting flange

1шт.

11

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

12

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

1-3/8 x 1-1/2 x 1/16 shaft seal

1шт.

13

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32 shaft seal

1шт.

14

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32 shaft seal

2шт.

15

142518C92

PACKAGE

KIT, shaft seal, consists of retainer (NSS), springs (NSS), seal (NSS), seal (NSS), ring, retaining 606937C1, o-ring 24472R1, o-ring 383017R1, o-ring 22278R1

1шт.

16

140766C1

PIN,14.22mm OD x 39.12mm L

servo linkage

2шт.

17

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

18

(Not used this application)

1шт.

19

(Not used this application)

1шт.

20

(Not used this application)

1шт.

21

142390C1

SHAFT

input

1шт.

22

(Not used this application)

1шт.

23

(Not used this application)

1шт.

24

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING ASSY, trunnion cone

2шт.

25

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING, trunnion cup

2шт.

26

142401C1

HOUSING

variable swashplate, used with thrust plate 142388C1, Serial Range: -42187

1шт.

26

80365C1

HOUSING

variable swash plate, used with thrust plate 80369C1, Start Serial: 42188

1шт.

27

142403C1

PLATE

thrust, thick, .230 x 4.92 in., Serial Range: -42187

1шт.

27

80369C1

PLATE

thrust, thin, .031 x 4.92 in., Start Serial: 42188

1шт.

28

140754C1

PIN

pump valve plate dowl

1шт.

29

HOUSING, variable, not serviced separately, order pump 1252342C92

1шт.

30

142408C1

RETAINER

servo

2шт.

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, #8 x 3/8 h/shd cap

1шт.

31

145308C1

PISTON

ASSY, servo, serviceable item is

2шт.

145309C1

PISTON

1шт.

32

142407C1

KIT

servo sleeve

2шт.

33

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8 class 5 servo piston

2шт.

34

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

3-3/8 x 3-5/8 x 1/8 class 5 servo sleeve

2шт.
