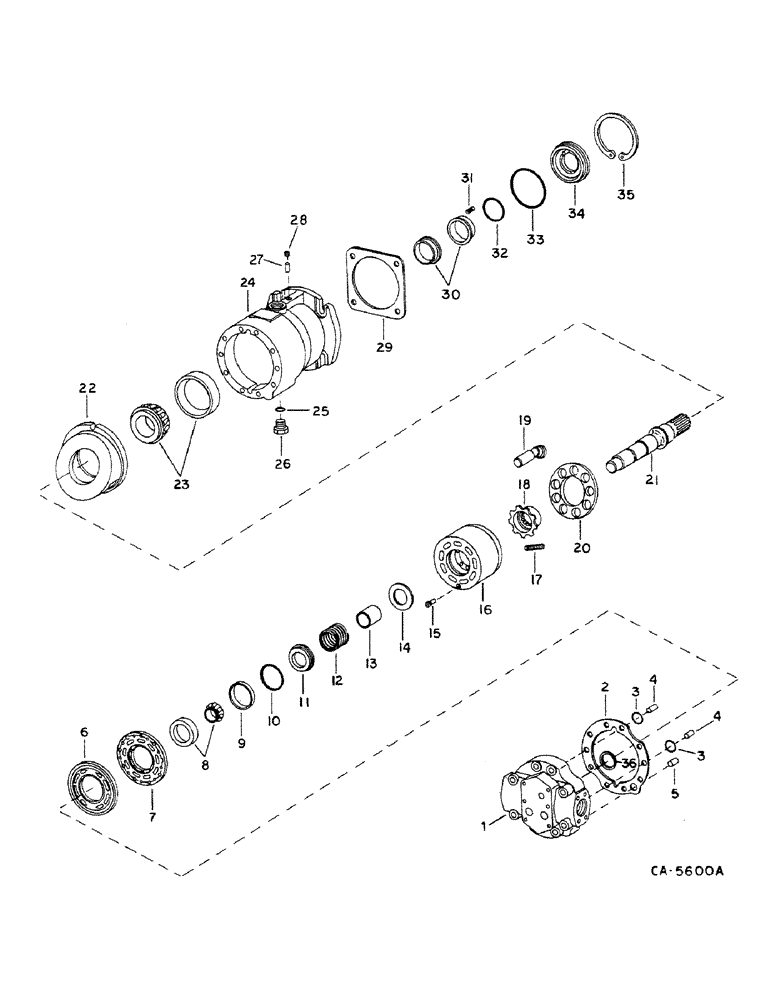

Запчасти Case IH 1460 (10-29) - HYDRAULICS, HYDROSTATIC MOTOR, SUNDSTRAND, MOTOR HOUSING (07) - HYDRAULICS

1252348C91

REMAN-HYD MOTOR

MOTOT ASSY, hydrostatic, renewed

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

1

530734R1

COVER

motor bearing rear end

1шт.

24852R1

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 8

7/16 x 2-1/4 phc type 8

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

7/16 x 3-1/4 pln type 5

1шт.

61252H

WASHER

.469 x .750 x .105 pln

1шт.

2

405147R1

GASKET

motor rear end

1шт.

3

393886R1

WASHER

WASHER, manifold valve

2шт.

4

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

2шт.

5

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel end cover to valve plate

1шт.

6

530773R1

PLATE

cyl block valve

1шт.

7

405141R1

PLATE

cyl block brg.

1шт.

8

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, drive shaft rear pilot

1шт.

9

405140R1

RING

cyl block brg plate pilot

1шт.

10

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, drive shaft rear spring

1шт.

11

405139R1

RETAINER

drive shaft rear spring

1шт.

12

71887C1

SPRING

cyl block

1шт.

13

405137R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

14

405136R1

SEAT

piston cyl block spring

1шт.

15

527636R1

PIN

cyl block brg plate

1шт.

16

BLOCK ASSY, piston cyl, not serviced separately order kit 133790C91

1шт.

17

67822C1

SPRING

slipper retainer

6шт.

18

405132R1

GUIDE

cyl block piston

1шт.

19

71605C1

PISTON ASSY.

PISTON ASSY, cylinder block

9шт.

20

405133R1

RETAINER

cyl block piston

1шт.

21

D63426

SHAFT

hyd motor drive

1шт.

22

405150R1

PLATE

SWASHPLATE, hyd. motor

1шт.

23

405186R91

BEARING ASSY,2" ID x 4" OD x 1.378"

ASSY, drive shaft front

1шт.

24

405148R1

HOUSING

hyd motor

1шт.

444688

PLUG

1/8 hex-soc-hd pipe

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

26

9410360

PLUG

7/8-14 C-Z str-thd

1шт.

27

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

1шт.

28

444688

PLUG

1/8 hex-soc-hd pipe

1шт.

29

166506C1

GASKET,0.81mm Thk

hydrostatic ground motor

1шт.

30

SEALS, not serviced separately order o-ring & seal package 405125R92

1шт.

31

393882R1

SPRING

drive shaft face

8шт.

32

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2 x 2-3/16 x 3/32

2шт.

33

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4 x 1/8

1шт.

34

405126R1

RETAINER

ASSY, drive shaft

1шт.

35

D63418

SNAP RING,3.875", Int, #387

Ring, Snap, , drive shaft face 3.875", Int, #387

1шт.

36

405128R1

SHIM

motor drive shaft, .010 in.

1шт.

D66240

KIT

PACKAGE, o-ring and seal, composed of, seal (NSS), seal (NSS), (2) o-ring 26079R1, o-ring 610411C1, (8) spring 393882R1

1шт.

133790C91

KIT

cyl block, consists of Ref. nos. 7 and 9 thru 20

1шт.
