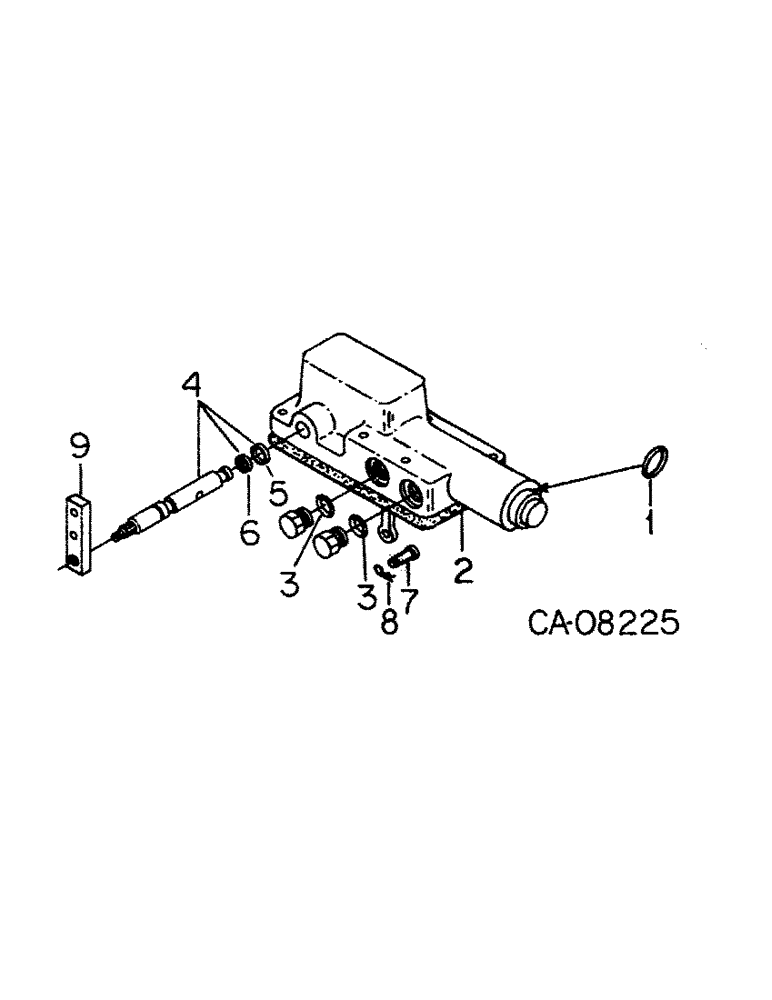

Запчасти Case IH 1460 (10-28) - HYDRAULICS, CONTROL VALVE ASSEMBLY, EATON, HYDROSTATIC PUMP (07) - HYDRAULICS

133755C93

VALVE

KIT, control valve, includes Ref. no. 2

1шт.

1272750C1

ORIFICE

VENT, control valve

1шт.

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 phc type 8

1шт.

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 phc type 8

1шт.

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

RETAINER, orifice o-ring

1шт.

1

80269C1

O-RING KIT

PACKAGE, o-ring and instructions

1шт.

2

133756C1

GASKET

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

4

1255148C1

SHAFT ASSY.

SHAFT ASSY

1шт.

5

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

shaft seal

1шт.

6

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

7

133757C1

PIN

linkage clevis, Serial Range: -42187

1шт.

8

133758C1

SPRING

PIN, hitch, Serial Range: -42187

1шт.

9

404782R1

HANDLE

shaft (Replaces F23131)

1шт.

NLS

NO LONGER SERVICED

1/4 ext tooth lock

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

See S/B NHE SB 003 92 for info about seal kit.

1шт.
