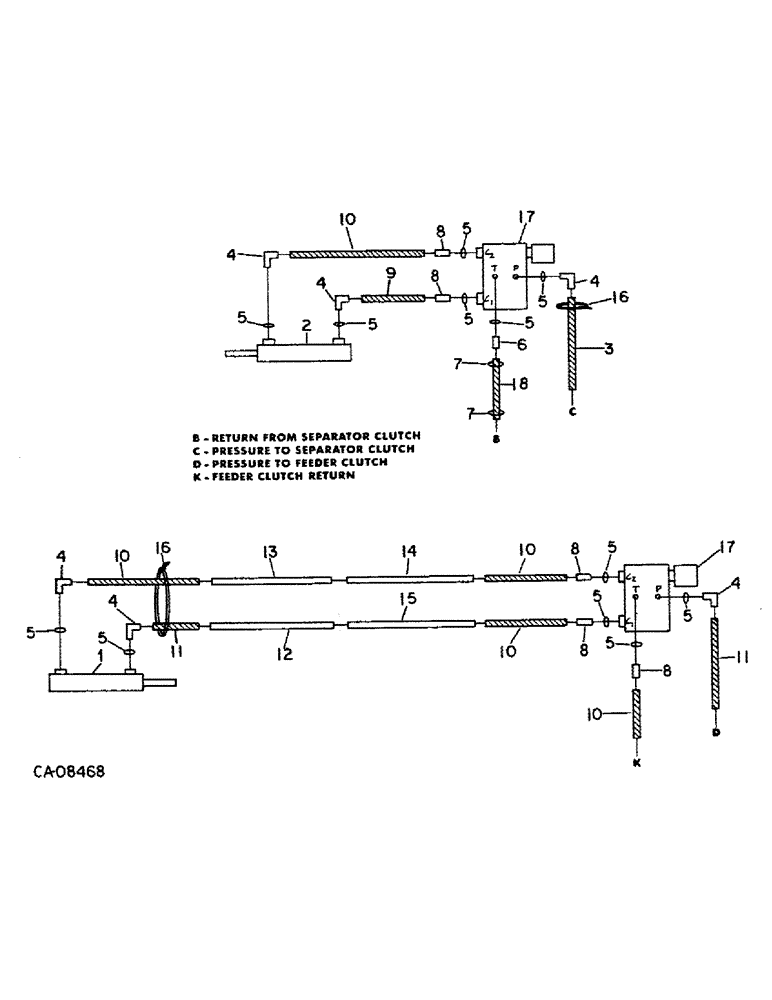

Запчасти Case IH 1460 (10-16) - HYDRAULICS, FEEDER & SEPARATOR CLUTCH CYLINDER DIAGRAM, CONTROLS CONCEPT (07) - HYDRAULICS

1

133405C92

CYLINDER

ASSY, feeder clutch, for service parts refer to cyl-1 section B

1шт.

1

87337239R

REMAN-HYD CYLINDER

1460 CASE IH AXIAL-FLOW COMBINE (NORTH AMERICA), Assy, Feeder Clutch (1/77-12/84), Reman for New PN 133405C92

1шт.

1

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

63884C92

SEAL KIT

KIT, cylinder service

1шт.

2

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSY, separator clutch, for service parts refer to cyl-1 section B

1шт.

63884C92

SEAL KIT

KIT, cylinder service

1шт.

3

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

- Separator Clutch 7.9 mm ID x 1270.00 mm, SAE 100R1

1шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8-C-Z hyd fld adj 90D

6шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

12шт.

6

178036C1

CONNECTOR, ELEC

CONNECTOR, 9/16-18 x 3/8 beaded tube

1шт.

7

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, clutch return hose

2шт.

8

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short

5шт.

9

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE ASSY, separator clutch, 17 in., 431.8 mm

1шт.

10

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder and Separator Clutch 0.31" ID x 20.00", SAE 100R1

5шт.

11

632455R91

HOSE

ASSY, feeder clutch pressure, 14 in., 355.6 mm

2шт.

12

196823C2

HYD TUBE

TUBE ASSY, feeder clutch lower foreward

1шт.

13

196793C1

HYD TUBE

TUBE ASSY, feeder clutch lower rearward

1шт.

14

196748C1

HYD TUBE

TUBE ASSY, feeder clutch upper rearward

1шт.

15

196792C1

HYD TUBE

TUBE ASSY, feeder clutch upper forward

1шт.

16

702093C1

CABLE TIE

STRAP, tie

2шт.

17

1301171C91

VALVE

ASSY, feeder and separator clutch, for detail refer to this group under feeder and separator clutch valve, control concepts

2шт.

18

HOSE, separator clutch return, use 22 in. of 3/8 in. ID hose from 50 ft. roll marked S118400

1шт.
