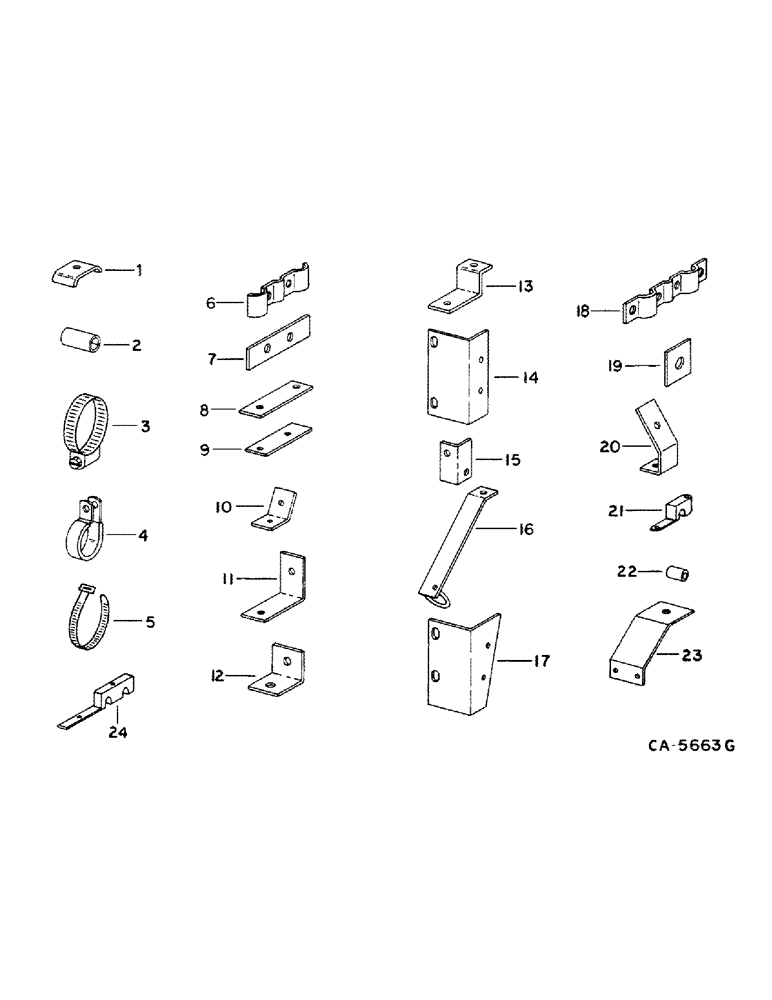

Запчасти Case IH 1460 (10-01) - HYDRAULICS, HYDRAULIC CLAMP, STRIPS AND SUPPORTS (07) - HYDRAULICS

1

165601C1

CLAMP

.406 dia. hole, for use with (AR) automatic header control lower pressure, (AR) header lift, (AR) pump to cooler reel drive, (AR) reservoir to cooler, reservoir drain, reel drive

1шт.

1

165602C1

CLAMP

.344 dia. hole, for use with (AR) feeder clutch and steering tubes, (AR) rear lift, steering rearward unloader swing

1шт.

2

163489C1

STRIP

for 1/4 in. OD tube, for use with, foot-n-inch unloader swing

1шт.

2

163490C1

RUBBER INSULATOR

STRIP, 3/8 in. OD tube, for use with, (AR) feeder clutch and steering, (AR) reel lift, (AR) steering

1шт.

2

163491C1

RUBBER INSULATOR

STRIP, for 1/2 in. OD tube, for use with, automatic header control reel drive

1шт.

2

163492C1

RUBBER INSULATOR

STRIP, for 5/8 in. OD tube, for use with (AR) automatic header control lower pressure, (AR) header lift, (AR) pump to cooler reel drive, reservoir to cooler, reservoir drain, reel drive

1шт.

2

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

for 3/4 in. OD tube, for use with (AR) header lift, (AR) header lift, pump to cooler, (AR) reservoir to cooler, (AR) hydrostatic bleed

1шт.

2

187935C1

STRIP

hydrostatic pressure tube

1шт.

2

183827C1

STRIP

5/8 hydrostatic tubes

1шт.

3

995218R1

CLAMP

no. 12, for use with (AR) cooler to reservoir, (AR) header lift return, (AR) pump to cooler, (AR) reel drive return, (AR) reservoir drain

1шт.

3

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, no. 24 header lift suction

1шт.

3

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, no. 6, for use with, clutch return, (AR) feeder clutch return, (AR) steering return, (AR) swing valve return

1шт.

3

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, no. 32 unloader swing cylinder

1шт.

3

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, no. 16 charge suction

1шт.

3

995219R1

CLIP

CLAMP, no. 24 reel drive suction

1шт.

4

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

steering, insulated

1шт.

4

515-2863

CLAMP,1/4", 3/8" Bolt

CLIP, foot-n-inch, uninsulated

1шт.

4

299399C1

CLIP

CLAMP, used for, charge pressure tubes

3шт.

Insulated

1шт.

4

299566C1

CLAMP

used for, charge pressure tubes

1шт.

Insulated

1шт.

5

702093C1

CABLE TIE

STRAP (NSS)

1шт.

5

306132C1

CABLE TIE,14.5" L

STRAP (NSS)

1шт.

5

289862C1

CABLE TIE,3/16" x 7"

STRAP (NSS)

1шт.

6

178984C1

CLAMP

hydrostatic drive lower tube

1шт.

7

150779C1

TUBE

STRAP, 1/4 in. hydrostatic drive lower tube

1шт.

7

150780C1

STRAP

1/8 in. hydrostatic drive lower tube

1шт.

7

187840C1

STRAP

hyd tube clamp

1шт.

8

187509C1

BAR

header lift

1шт.

8

187510C2

BAR

header lift tubes

1шт.

9

196868C1

BAR

SUPPORT, reservoir to cooler, reel drive return and foot-n-inch tube

1шт.

10

178960C1

BRACKET

ANGLE, steering rearward

1шт.

11

178950C1

ANGLE

header lift support

1шт.

11

183899C1

ANGLE

steering hand pump hose

1шт.

12

176394C1

ANGLE

header lift tube

1шт.

13

196517C1

SUPPORT TUBE

SUPPORT, for use with, (AR) feeder clutch and steering tubes, (AR) hydrostatic pump to cooler foot-n-inch

1шт.

14

187936C2

BRACKET

ANGLE, hydrostatic support rear

1шт.

15

196872C1

ANGLE

steering support

1шт.

16

173143C1

SUPPORT ASSY.

SUPPORT ASSY, header lift hose

1шт.

17

187937C2

BRACKET

ANGLE, hydrostatic support front

1шт.

18

187934C1

CLAMP

hydrostatic tube

1шт.

19

156715C1

BAR

tube clamp

1шт.

19

573186R1

PLATE

BAR, tube clamp, for use with, automatic header control

1шт.

20

183829C1

BRACKET

hyd tube, reservoir to cooler tube

1шт.

21

183820C1

CLAMP

hyd tube, for 1/4 OD tube, foot-n-inch

1шт.

21

183821C1

CLAMP

hyd tube, for 3/8 OD tube, reel lift

1шт.

21

183822C1

CLAMP

hyd tube, for 5/8 OD tube, reel drive

1шт.

21

183823C1

CLAMP

hyd tube, for 3/4 OD tube, oil, Serial Range: cooler-reservoir

1шт.

22

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

.407 x .625 x 1.00

1шт.

23

(Not used in this application)

1шт.

24

183824C1

CLAMP

1/4 x 1/4

1шт.

24

183825C1

CLAMP

3/8 x 3/8

1шт.

24

1301178C1

CLAMP

1/2 x 1/2

1шт.

24

183826C1

CLAMP

3/4 x 3/4

1шт.

24

121714C1

CLAMP

3/4 x 5/8

1шт.
