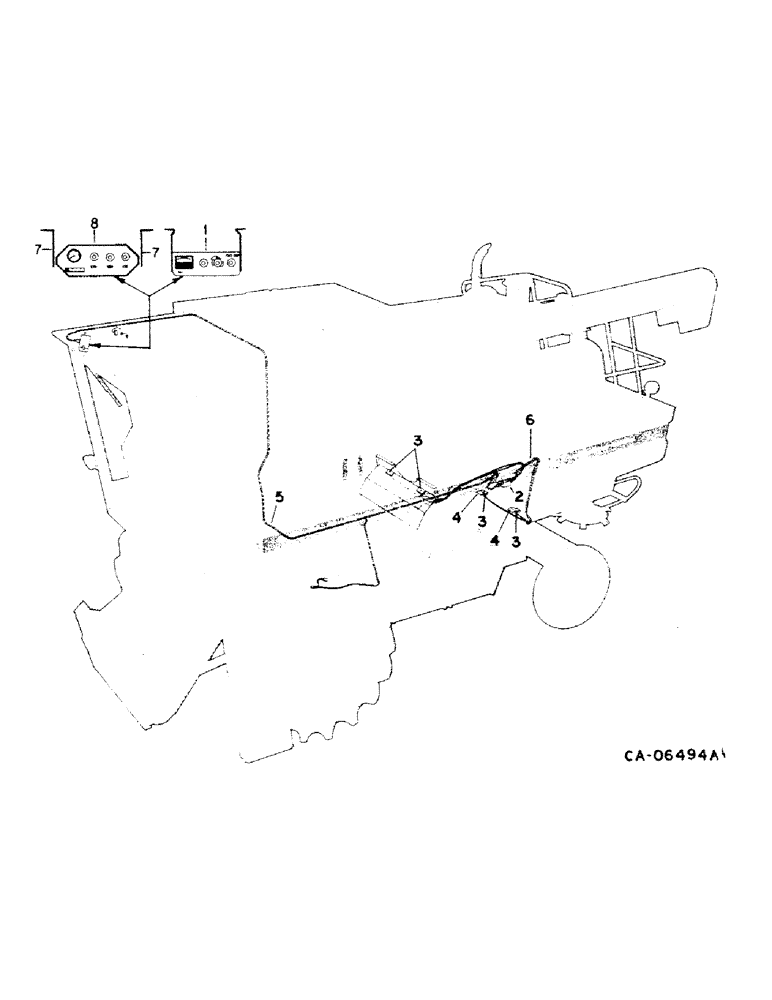

Запчасти Case IH 1460 (08-31) - ELECTRICAL, GRAIN LOSS MONITOR (06) - ELECTRICAL

1

1310676C2

CONTROL

grain loss monitor, sed

1шт.

2

245736C1

BLOCK

monitor control junction, replaces 1310677C1 and 245069C2, sed

1шт.

2

245306C1

HARNESS

ASSY, y-connector, Dickey John

1шт.

Ref. 2a should be changed to Ref. 9. This is a short Y-Patch connector harness used with the Dickey-John system. It is located off the end of the distance harness and connects to the transmission distance sensor.

1шт.

3

1301700C1

TRANSMITTER

SENSOR, monitor control, sed

4шт.

Sensor is the part that senses the ground speed for the grain loss monitor and not the digital data center.

1шт.

3

245283C1

SENSOR

AND BRACKET, sieve, Dickey John

2шт.

245283c1 - is the shoe sensor.

1шт.

3

245285C1

SENSOR

AND BRACKET, rotor, Dickey John

2шт.

4

1310680C1

SUPPORT

sensor mounting, sed

2шт.

5

245067C1

HARNESS

ASSY, main, replaces 1310678C1, sed

1шт.

5

245304C1

HARNESS

ASSY, main, Dickey John

1шт.

Is the main harness for Dickey-John system. It goes the full length of the machine. It does not send a lead to the Transmission Distance Sensor. It goes directly to the sensors without going through a monitor control junction block like SED uses.

1шт.

6

245737C1

HARNESS

ASSY, distance cable, replaces 1310679C1 and 245068C1, sed

1шт.

Is the rear sensor harness for SED, not the Distance Harness .

1шт.

6

245305C1

HARNESS

ASSY, distance cable, Dickey John

1шт.

Ref. 6a should be changed to Ref. 10. This is the Distance Cable for the Dickey-John system. It hooks to the Y_Patch Cable at the transmission sensor and parallels all the way back to the monitor in the cab roof.

1шт.

7

1319499C1

SUPPORT

BRACKET, monitor control mounting, Dickey John

2шт.

8

245757C1

INSTRUMENT CLUSTER

CONTROL, grain loss monitor, replaces 245250C1, Dickey John

1шт.

145510

FUSE,1 Amp, Type 3AG

1 amp

1шт.

245328C1

EXTENSION

battery cable, not illustrated, use with Dickey John monitor 245250C1 only, connects monitor to 12 volt power supply

1шт.
