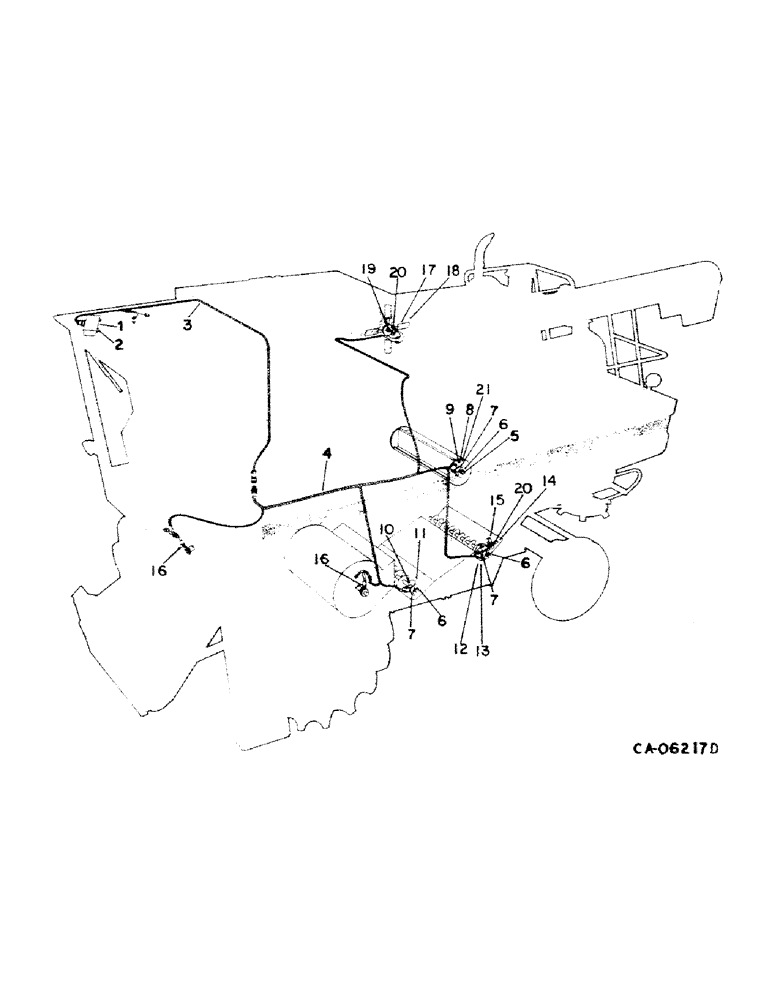

Запчасти Case IH 1460 (08-29) - ELECTRICAL, SHAFT SPEED MONITOR CONTROL, S/N 1501 AND ABOVE (06) - ELECTRICAL

1

245257C1

REMAN-INSTR CLUSTER

PANEL ASSY, shaft speed monitor, replaces R196981C2, renewed 6 channel, Serial Range: 1501-12000

1шт.

1

1265667C1

INDICATOR

PANEL ASSY, shaft speed monitor, replaces 1301266C2, renewed 7 channel, Start Serial: 12001

1шт.

2

178876C1

SUPPRESSOR

audible alarm

1шт.

3

196982C2

CABLE

HARNESS ASSY, cab section, w/air conditioner, Serial Range: 1501-12000

1шт.

3

183644C1

HARNESS

ASSY, cab section, w/out air conditioner, Serial Range: 1501-12000

1шт.

3

1301064C2

HARNESS

ASSY, cab section, Start Serial: 12001

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

26667R1

SCREW

no. 10 x 3/4 phc p/hdcr mach

1шт.

4

183504C1

HARNESS

ASSY, machine section, Serial Range: 1500-12000

1шт.

4

1301065C1

HARNESS

ASSY, machine section, Start Serial: 12001

1шт.

5

178802C1

COLLAR CLAMP

COLLAR, beater, Serial Range: 1501-12000

1шт.

5

BUSHING, beater, refer to group 21 under discharge beater, Start Serial: 12001

1шт.

6

178800C1

CLAMP

ASSY, sensor, machines without straw chopper

3шт.

6

178800C1

CLAMP

ASSY, sensor, machines with straw chopper

2шт.

6

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, sensor, used on machines with straw chopper

1шт.

7

196984C1

SWITCH

ASSY, shaft speed monitor, machines without straw chopper

3шт.

7

196984C1

SWITCH

ASSY, shaft speed monitor, machines with straw chopper

2шт.

8

187629C1

SUPPORT

beater shaft sensor

1шт.

9

187630C1

SUPPORT

beater shaft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

10

178794C1

BRACKET

clean grain sensor

1шт.

11

187642C2

COVER

ASSY, clear grain auger sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

12

187615C2

BRACKET

tailings sensor

1шт.

13

187616C1

SUPPORT

tailings sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

14

187998C1

SUPPORT

shoe sensor

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

15

187996C1

MAGNET

ASSY, shoe

1шт.

16

GAGE, reluctance pick-up, refer to group 24 under cleaning fan and shields

1шт.

17

1301561C1

SUPPORT

fan switch mounting, replaces 187501C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

179454C1

RUBBER WASHER

rubber

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

18

1301560C1

SUPPORT

ANGLE, rotary fan switch adjustment, replaces 187502C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

19

196987C1

MAGNET

ASSY, rotary screen

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

1шт.

20

187997C1

SWITCH

ASSY, rotary screen and shoe

2шт.

21

1301577C1

SWITCH

ASSY, monitor chopper shaft

1шт.
