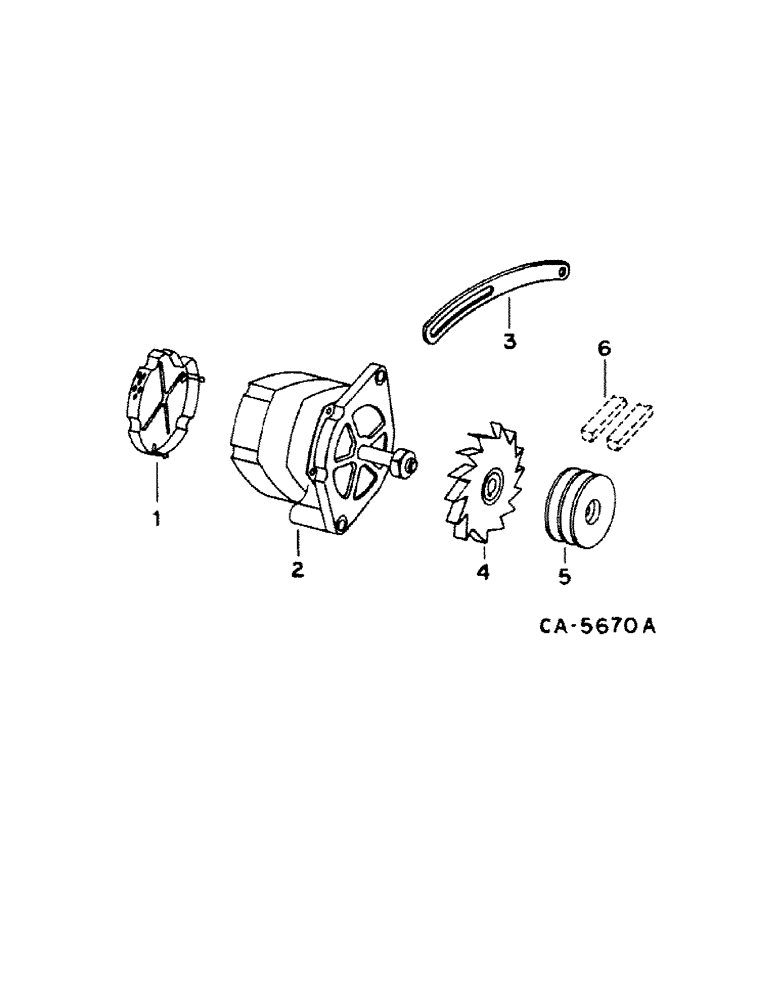

Запчасти Case IH 1460 (08-20) - ELECTRICAL, ALTERNATOR GENERATOR AND MOUNTINGS, ALL EXCEPT 90 AMP MOTOROLA, ALT-GEN (06) - ELECTRICAL

1

1851153

SHIELD

cover, for alternators 1102992 & 1103160 & 1103184

1шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

M8 x 20 phc class 10.9

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

2

ALTERNATOR-GENERATOR, refer to this group under alternator- generator

1шт.

3

532418R1

BRACE

adjusting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

1014921C1

BOLT

BOLT, M8 x 30 pln class 8.8

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

4

221425R1

FAN

alternator-generator

1шт.

5

537070R1

PULLEY

alternator-generator, 4.35 in. dia., for alternators 1102922, 1103160, 1103184, and 1105178, for alternator, 1105574, Serial Range: -52537

1шт.

5

107686C1

PULLEY

alternator, 4.35 in. dia., for alternator 146466C91, Serial Range: -52537

1шт.

5

131042C1

PULLEY

alternator-generator, for alternators 1105574 and 146466C91, Start Serial: 52538

1шт.

6

BELT, matched set, refer to group 12 under engine belt diagram

1шт.

77907C93

SPARE PART

PARTS ACCESSORY, heavy duty alternator generator, consists of

1шт.

245713C92

ALTERNATOR

ALT-GEN with fan and pulley

1шт.

245165C1

SHIELD

1шт.

245163C1

STRAP

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
