Запчасти Case IH 1460 (08-20[A]) - ELECTRICAL, ALTERNATOR GENERATOR MOUNTING, MOTOROLA 90 AMP ALTERNATOR (06) - ELECTRICAL

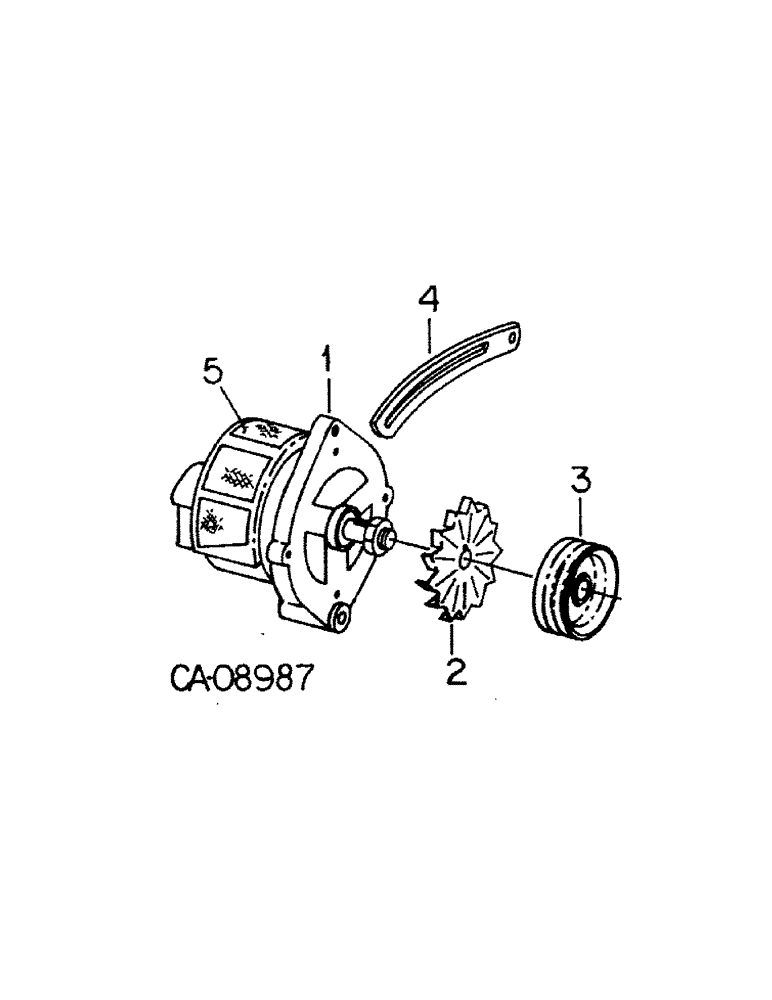

Схема запчастей Case IH 1460 - (08-20[A]) - ELECTRICAL, ALTERNATOR GENERATOR MOUNTING, MOTOROLA 90 AMP ALTERNATOR (06) - ELECTRICAL
5
3
1
4
2

Артикул

Название

Примечание

Количество

1

245713C92

ALTERNATOR

ALTERNATOR-GENERATOR, replaces 107639C91 and 146466C91

1шт.

1

87297294

REMAN-ALTERNATOR

Reman for New PN 245713C92

1шт.

1

87297295

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 Volt, 61 Amp Alternator

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 Volt, 100 Amp Alternator

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 Ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

30033R1

BOLT,Hex, M10 x 90mm, Cl 10.9

BOLT, M10 x 90 phc class 10.9

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30208R1

NUT,M6, Cl 10

NUT, M6 phc class 10

1шт.

933833R1

LOCK WASHER,M6

LOCK WASHER, M6

1шт.

2

221425R1

FAN

FAN, alternator-generator

1шт.

3

131042C1

PULLEY

PULLEY, alternator-generator

1шт.

4

532418R1

BRACE

BRACE, adjusting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

1014921C1

BOLT

BOLT, M8 x 30 pln class 8.8

1шт.

21496R1

WASHER

WASHER, .344 x .750 x .105

1шт.

5

245165C1

SHIELD

SHIELD, alternator-generator cover

1шт.

245163C1

STRAP

STRAP, cover shield retaining

1шт.

Выбрано товаров: 27
