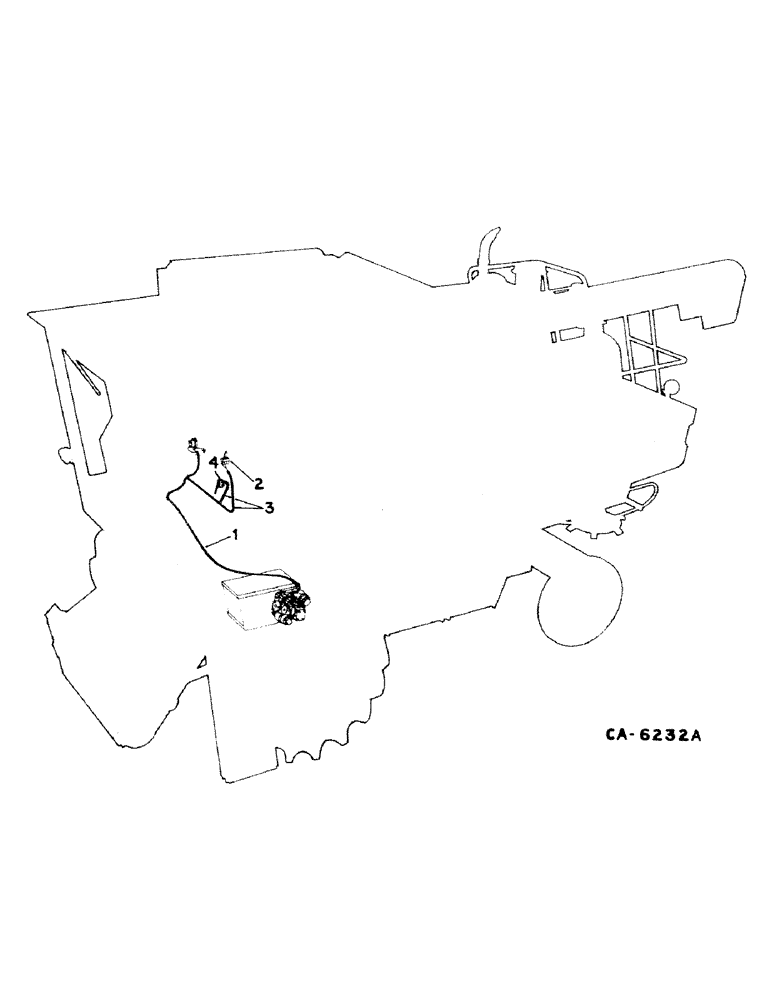

Запчасти Case IH 1460 (08-14) - ELECTRICAL, WIRING DIAGRAM, HYDROSTATIC MOTOR, 2 SPEED (06) - ELECTRICAL

1

183971C1

HARNESS

ASSY, 2 speed hydrostatic motor, rice combines only

1шт.

2

1301522C1

SWITCH

ASSY, 2 speed hydrostatic motor, replaces 187561C1

1шт.

3

245837C2

HARNESS

ASSY, 2 speed hydrostatic motor with 3rd gear lock out, grain and corn combines only

1шт.

4

1310827C1

SWITCH

ASSY, 3rd gear lock out, grain and corn combines only

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

138526

LOCK WASHER

no. 6 int tooth lock

1шт.

103337

WASHER,#6

1шт.
