Запчасти Case IH 1460 (08-12) - ELECTRICAL,WIRING DIAGRAM,RIGHT TURN SIGNAL,HEAD LIGHT,DIG. READOUT & SLIP CLUTCH, S/N 22000 & BELOW (06) - ELECTRICAL

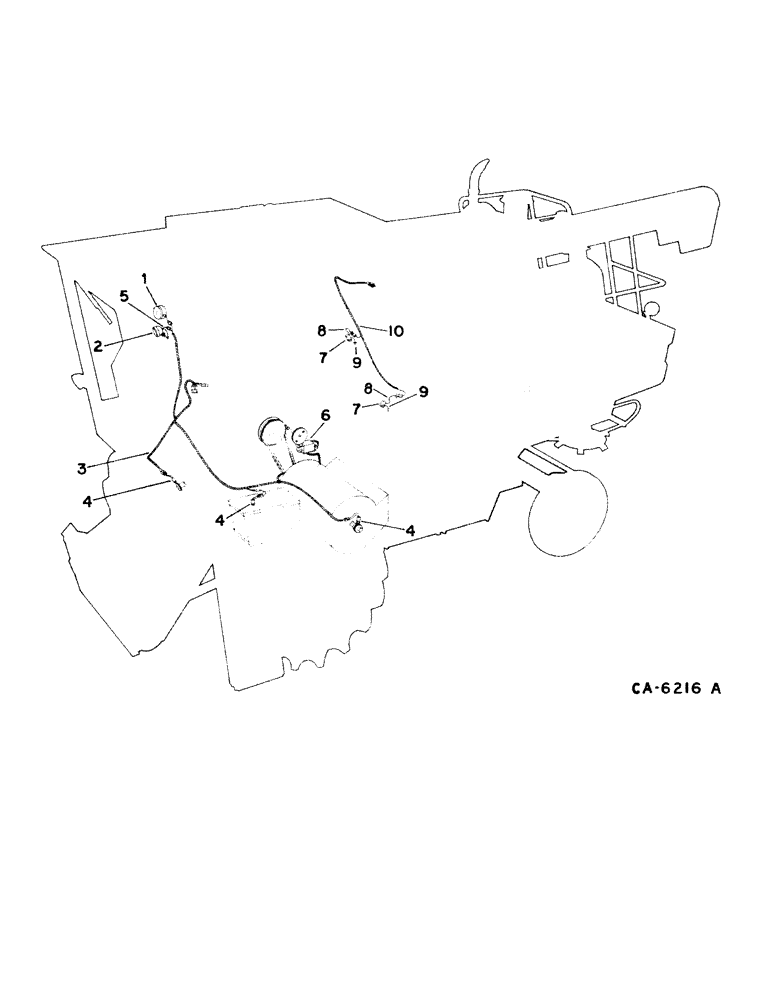

Схема запчастей Case IH 1460 - (08-12) - ELECTRICAL,WIRING DIAGRAM,RIGHT TURN SIGNAL,HEAD LIGHT,DIG. READOUT & SLIP CLUTCH, S/N 22000 & BELOW (06) - ELECTRICAL
7
10
8
1
9
4
9
8
5
6
3
4
2
4
7

Артикул

Название

Примечание

Количество

1

LAMP ASSY, flasher RH, refer to this group under lights and mountings

1шт.

2

LAMP ASSY, RH head light, refer to this group under lights and mountings

1шт.

3

198013C1

HARNESS

ASSY, tachometer and front lights, Serial Range: -1500

1шт.

3

187796C3

HARNESS

ASSY, tachometer and front lights, Start Serial: 1501

1шт.

4

GAGE, reluctance pickup, refer to group 7 under transmission, refer to group 21 under rotor, refer to group 24 under cleaning fan and shields

3шт.

5

178890C1

CABLE

ASSY, headlight ground

1шт.

6

MOTOR, fan speed control, refer to group 24 under fan drive

1шт.

7

SWITCH ASSY, elevator and shaker shaft alarm, refer to group 23 under shaker shaft and auger drive, refer to group 25 under grain and tailings elevator drive

2шт.

8

187736C1

CABLE

ASSY, slip clutch

2шт.

9

175008C1

CABLE ASSY.

CABLE ASSY, warning switch ground

2шт.

10

183586C1

HARNESS

ASSY, slip clutch

1шт.

Выбрано товаров: 11
