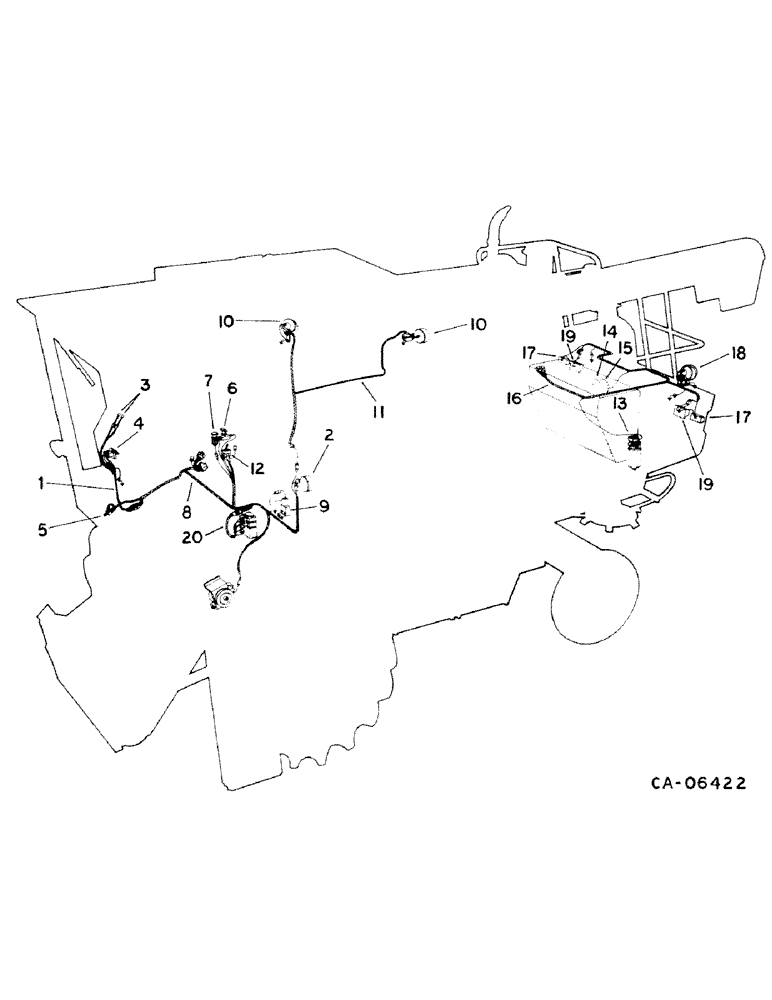

Запчасти Case IH 1460 (08-10) - ELECTRICAL, WIRING DIAGRAM, LEFT TURN, GRAIN TANK UNLOADER,REAR LIGHTS & FUEL PUMP,S/N 22001 & ABOVE (06) - ELECTRICAL

1

1301532C1

HARNESS

ASSY, steering column

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

2

LAMP ASSY, flasher front LH, refer to this group under lights and mounting

1шт.

3

121684C91

LIGHT ASSY.

INDICATOR LIGHT

2шт.

71892C1

LENS

2шт.

200557H1

BULB,C2V, #1815, 14V

no. 1815

2шт.

4

131066C91

SWITCH

ASSY, turn signal

1шт.

5

196825C1

IGNITION SWITCH

SWITCH ASSY, safety start

1шт.

124934

HOSE

1/2-NF jam type 5

1шт.

6

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

68107H

LOCK NUT

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

166817C1

WASHER

1шт.

7

195778C91

LIGHTER, CIGARETTE

LIGHTER ASSY, cigarette

1шт.

8

1301531C1

HARNESS

ASSY, main front left

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

SOLENOID, feeder clutch valve, refer to group 10 under feeder and separator clutch valve

1шт.

10

LAMP ASSY, grain tank & unloader, refer to this group under lights and mountings

1шт.

11

187792C2

HARNESS

ASSY, grain tank & unloader lights

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

1301359C1

SWITCH

ASSY, unloader swing

1шт.

13

PUMP ASSY, fuel, refer to group 12 under fuel lines

1шт.

14

196262C2

CABLE ASSY.

CABLE ASSY, fuel gage ground

1шт.

15

GAGE ASSY, fuel tank, refer to group 12 under fuel tank

1шт.

16

1301535C2

HARNESS

ASSY, main rear

1шт.

17

LAMP ASSY, rear warning, refer to this group under lights and mountings

2шт.

18

LAMP ASSY, RH night light, refer to this group under lights and mountings

1шт.

19

LAMP ASSY, tail, refer to this group under lights and mountings

2шт.

20

1301077C1

HARNESS

ASSY, hyd valve cluster

1шт.

112432

NUT,#10-32, Brass

Machine screw #10-32, Brass

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle and hardware

1шт.
