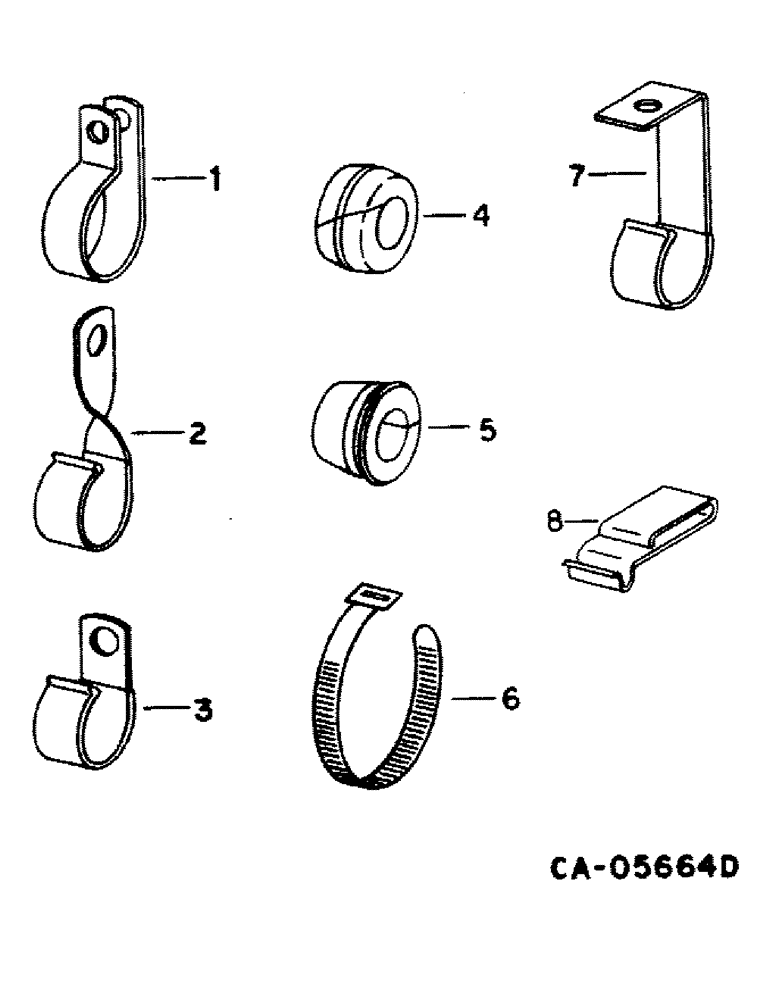

Запчасти Case IH 1460 (08-01) - ELECTRICAL, CLIPS, GROMMETS AND STRIPS (06) - ELECTRICAL

1

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP, center harness

1шт.

Uninsulated

1шт.

1

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

CLIP, console harness

1шт.

Insulated

1шт.

1

573099R2

CLIP

battery cable

1шт.

Insulated

1шт.

1

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP, center harness

1шт.

Uninsulated

1шт.

1

245738C2

CLAMP

CLIP PACKAGE, grain loss monitor, consists of (6) clamps (NSS), (6) nuts (NSS)

1шт.

2

363660R1

CLIP

front harness, front harness, (2) alternator cable, (2) cranking motor

1шт.

Insulated

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, (AR) tachometer and RH light harness, (AR) shaft speed, limit switch, front harness, (AR) fan motor lower harness, throttle bracket, rotor harness support

1шт.

Insulated

1шт.

3

362126R1

CLIP

center harness long

1шт.

Insulated

1шт.

3

366460R1

CABLE CLIP

CLIP, shaft speed monitor control

1шт.

Insulated

1шт.

3

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, engine, center harness

1шт.

Insulated

1шт.

(AR) console harness, (AR) front harness, (AR) rear harness, (AR) tachometer and RH light harness, steering column harness, (AR) shaft speed, fuel filter, (AR) automatic header control, (AR) operators platform harness, (AR) feeder harness

1шт.

3

366460R1

CABLE CLIP

CLIP, (AR) center harness, (AR) front work light harness

1шт.

Insulated

1шт.

3

362123R1

CLIP

crankcase and water pump

1шт.

Insulated

1шт.

3

362667R1

CLIP

either start bracket, A/C field coil wire

1шт.

Insulated

1шт.

3

362666R1

CLIP

monitor control

1шт.

Insulated

1шт.

4

117959

GROMMET,5/16" ID x .719" x .062"

5/16 x 23/32 x 5/16 n/c rub, center harness, tachometer and RH light harness, rotary screen sensor

1шт.

4

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

5/16 x 1-3/8 rear harness

1шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 x 1 tachometer

1шт.

4

128449C1

GROMMET

feeder transducer

1шт.

4

117960

GROMMET,5/16" ID x .719" x .188"

5/16 x 23/32 x 7/16 n/c rub, center harness

1шт.

4

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

5/16 x 1, RH light harness

1шт.

5

198820C1

GROMMET

w/o air conditioner, w/o automatic header control auto reel drive and feeder cut, off, w/o auto load control, w/o grain loss monitor, w/o heater, w/o power guide wheel, w/o shaft speed monitor, unloader cable

1шт.

5

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 3/8 in. ID, parking brake, throttle, transmission shift

1шт.

5

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 1/2 in. ID, shaft speed wiring harness, RH light harness

1шт.

5

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 5/8 in. ID, operators platform, automatic header control, hydrostatic drive, LH light harnes, RH deck harness

1шт.

5

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

front harness

1шт.

5

195806C1

GROMMET

1.12 x .750, used for, operators platform harness

1шт.

6

702093C1

CABLE TIE

STRAP, tie

1шт.

(AR) monitor harness, (AR) console harness, (AR) feeder harness, (1) condensate hose, RH, (AR) engine harness, (AR) center harness, (AR) front harness, (1) fuel tank ground cable, (1) indicator lights ground cable, (AR) tachometer and RH light harness, (AR) shaft speed monitor control, (AR) rear harness, (AR) steering column harness, (AR) fan motor lower harness, (AR) RH console, (AR) automatic header control

1шт.

6

306132C1

CABLE TIE,14.5" L

STRAP, tie, tachometer harness, fan motor lower harness

1шт.

6

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie, headlight ground cable

1шт.

7

(Not used this application)

1шт.

8

(Not used this application)

1шт.
