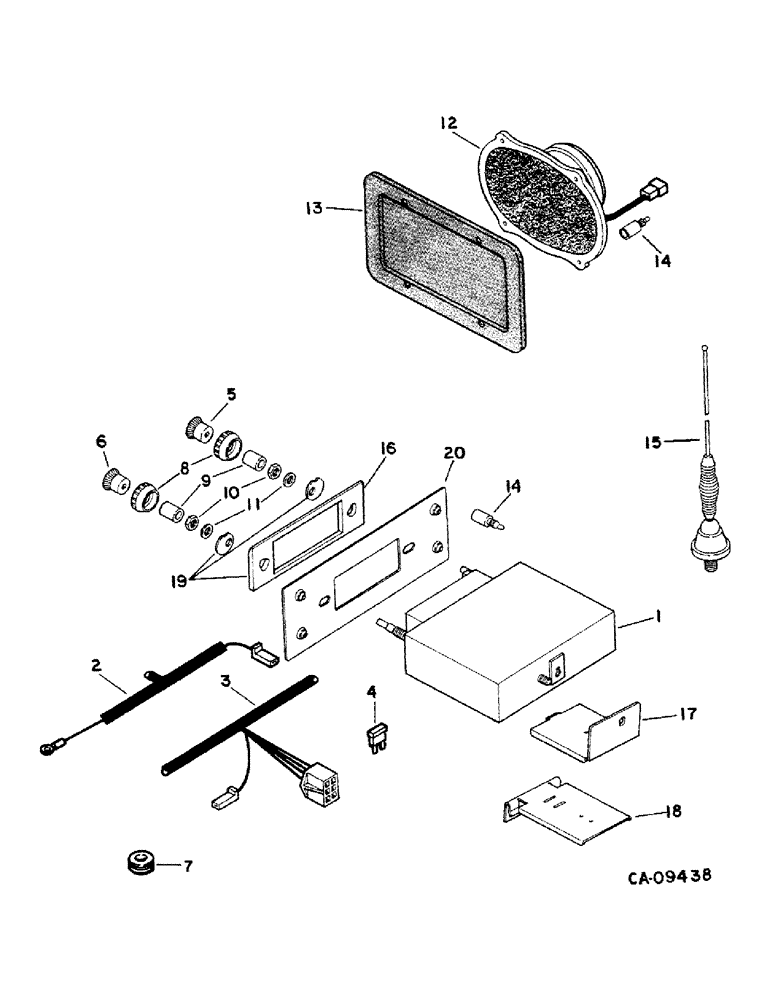

Запчасти Case IH 1460 (13-35) - SUPERSTRUCTURE, RADIO, 15 WATT, CHANNEL (05) - SUPERSTRUCTURE

1

245344C91

RADIO

15w/channel AM, Audiovox

1шт.

1

245160C91

RADIO

15w/channel AM-FM stereo, Audiovox

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

92051C1

HARNESS

power

1шт.

3

91729C1

HARNESS

radio and speaker, includes ref no. 4

1шт.

4

A149789

HARNESS

FUSE, auto type ATL 5, tan

1шт.

5

111381C1

KNOB

volume control

1шт.

6

111382C1

KNOB

tuning control

1шт.

7

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

antenna cable

1шт.

8

385532C1

KNOB

inner control, chrome

2шт.

9

84240C1

SPACER

3/8 x 5/8 x 19mm

2шт.

10

142921C1

NUT

shaft

2шт.

11

142920C1

WASHER

shaft

2шт.

12

84099C1

SPEAKER

4 x 8 4 ohm

2шт.

13

118258C1

PANEL

GRILLE, speaker

2шт.

14

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 polyseal, used to attach 118258C1

8шт.

15

111237C1

ANTENNA

ASSY, complete

1шт.

16

187625C2

PLATE

radio dial cover

1шт.

17

84048C1

BRACKET

rear support slide

1шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"

1шт.

18

84049C1

BRACKET

rear support

1шт.

19

117995C1

PACKAGE

spacer toggle, consists of (NSS) fastener, toggle (5)

3шт.

20

84103C1

PANEL

radio trim highlight

1шт.

91667C1

PACKAGE

PARTS ACCESSORY, radio installation, consists of ref nos 2 thru 19 and (NSS) instructions

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack, consists of (NSS) cable, (NSS) harness

1шт.

118106C1

WASHER

cup trim (NSS) instructions

1шт.
