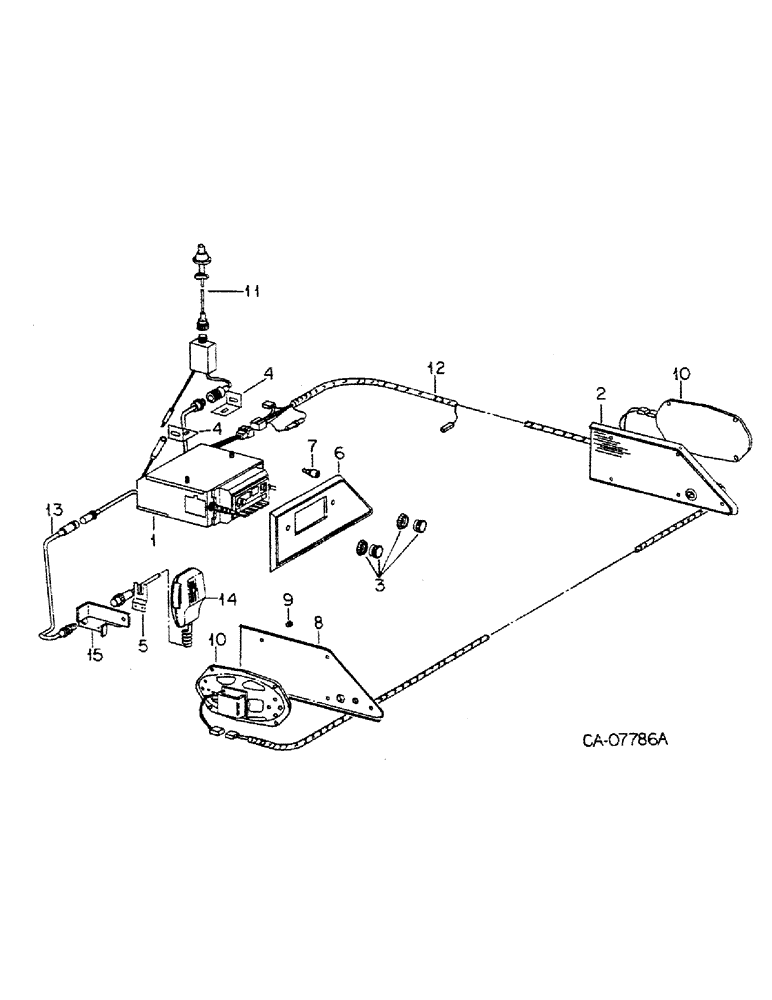

Запчасти Case IH 1460 (13-34) - SUPERSTRUCTURE, RADIO, AM,FM,CB MULTIPLEX (05) - SUPERSTRUCTURE

142947C93

RADIO

PARTS ACCESSORY, AM/FM/CB MPX

1шт.

1

143328C1

RADIO

AM/FM/CB MPX

1шт.

142920C1

WASHER

shaft

2шт.

142974C1

NUT

M9 x .75 small shaft

2шт.

142945C1

STUD, adapter

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 int-ext tooth lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

111403C1

PANEL

speaker trim, RH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC o/hdcr tap

1шт.

3

117993C1

PACKAGE

KIT, radio control knobs, consists of, (NSS) (2) knob, chrome, (NSS) knob, volume, (NSS) knob, tuning

2шт.

4

117818C1

ANGLE

radio mounting

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

5

118598C1

CLIP

microphone mounting

1шт.

142937C1

SCREW,Phil Pan Hd, #8 - 18 x 1/2"

8-18 x 1/2 cr tap

1шт.

6

1252433C1

PANEL, radio trim

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC o/hdcr tap

1шт.

7

117995C1

PACKAGE

KIT, trim panel fastener, consists of 5 fasteners

3шт.

8

111402C2

PANEL

speaker trim, LH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC o/hdcr tap

1шт.

9

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

9

353-406

PLUG,Dome, .625" hole, Nylon

plastic

1шт.

10

142956C1

SPEAKER

4 x 8 4 ohm

2шт.

11

118439C91

ANTENNA

ASSY, combination AM/FM/CB, consists of the following serviceable parts

1шт.

80919C1

COUPLING

COUPLER ASSY

1шт.

80921C1

BASE

ASSY

1шт.

80922C1

ANTENNA

/A, replaces the following parts

1шт.

80919C1

COUPLING

COUPLER ASSY

1шт.

80921C1

BASE

ASSY

1шт.

142982C1

VALVE SPRING

SPRING, screw

1шт.

30585R1

PLATE

screw, antenna, nut, screw

1шт.

Also furnish 2 in. of 1-3/4 in. duct or plastic tape for use with antenna 118439C91

1шт.

12

143177C1

HARNESS

ASSY, radio and speaker

1шт.

126049

FUSE,5 Amp, Type 1AG

1AG5 - 5 amp

1шт.

13

142995C1

CABLE

ASSY, microphone extension

1шт.

14

1252436C91

TRANSMITTER

MICROPHONE ASSY

1шт.

15

118595C1

BRACKET

ASSY, microphone mounting

1шт.

444272

SCREW, #8 x 1/4 znp p/hdcr l/w mach

1шт.

27328R1

SCREW

no. 8 x 1/2 PHC p/hdcr mach

1шт.

445106

SPARE PART

NUT, 8-32 PHC style I

1шт.
