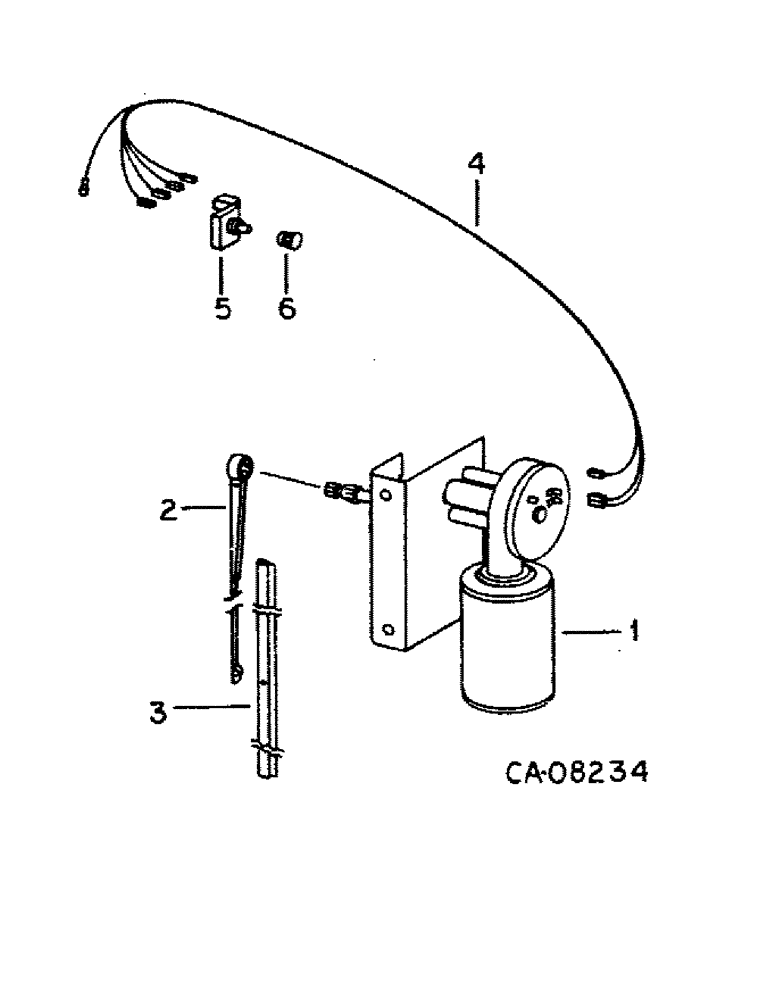

Запчасти Case IH 1460 (13-30) - SUPERSTRUCTURE, WINDSHIELD WIPER (05) - SUPERSTRUCTURE

1

1267548C91

WIPER MOTOR

MOTOR ASSY, wiper, replaces motor assy, 1301413C91 motor, 143417C1 and mounting bracket, 923480C1

1шт.

191879

SCREW,Cross Pan Hd, 1/4" - 28 x 1/2"

1/4-NF x 1/2 znp p/hdcr mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

739487C1

CLIP

spring

1шт.

148074R1

WASHER

1шт.

1267556C1

BUTTON

NUT, knurled drive

1шт.

2

1267389C1

ARM

wiper, replaces 1267347C1

1шт.

3

1267399C1

BLADE

wiper, replaces 204642C1 and 428113R92

1шт.

4

1301414C1

CABLE

ASSY

1шт.

5

109222C1

SWITCH

ASSY

1шт.

162214R1

NUT

HOSE, switch insulator, furnish 20mm from bulk hose marked 990016C1

1шт.

6

111282C1

KNOB

switch

1шт.

1267542C91

PACKAGE

LINKAGE KIT, service, consists of

1шт.

739487C1

CLIP

spring

1шт.

1267556C1

BUTTON

NUT, knurled drive

1шт.

148074R1

WASHER

(NSS) instructions

1шт.

F96765 Motor & Gear Unit.

1шт.
