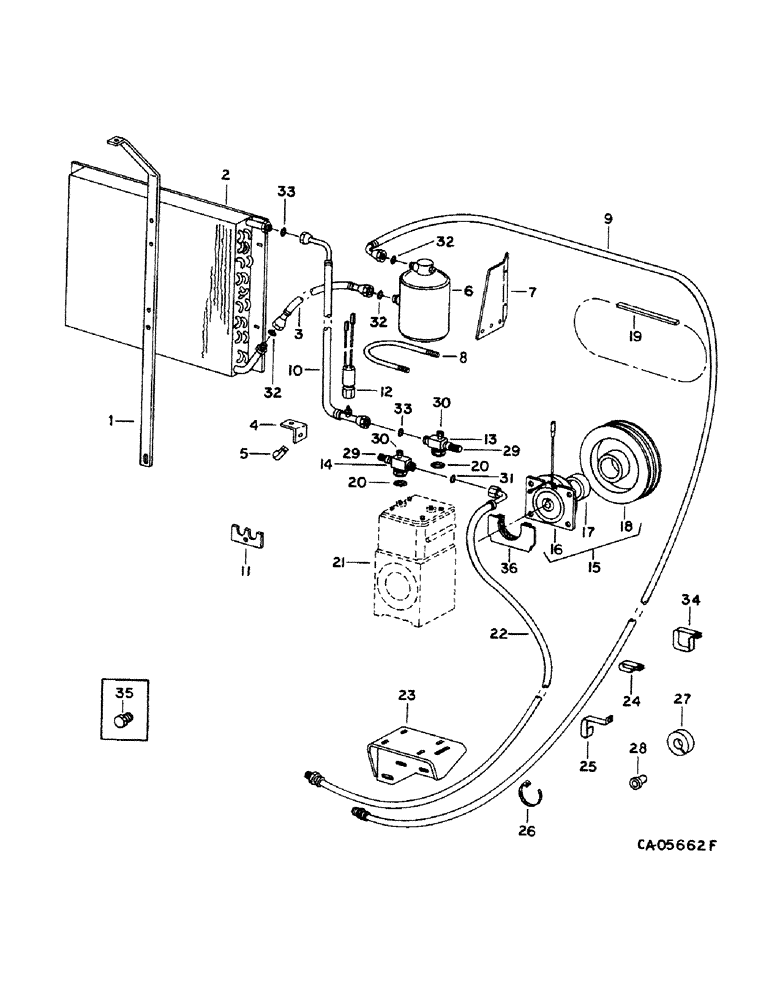

Запчасти Case IH 1460 (13-24) - SUPERSTRUCTURE, AIR CONDITIONER AND CONDENSER (05) - SUPERSTRUCTURE

1

194250C2

SUPPORT

SUPPORT, condenser

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

2

165130C91

COIL

COIL ASSY, air conditioner condenser, Serial Range: -12000

1шт.

2

183901C2

CONDENSER

COIL ASSY, air conditioner condenser, Start Serial: 12001

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

SCREW, 1/4-20 x 1/2 slt-truss-hd

1шт.

3

587574R91

HOSE,7.94mm ID x 889mm L

Dryer to Condenser, Serial Range: -12000

1шт.

3

183909C2

HOSE ASSY.

HOSE ASSY, dryer to condenser, 30 in., includes ref. no. 32, Start Serial: 12001

1шт.

4

187703C1

ANGLE

ANGLE, condenser tube bracket, Serial Range: -12000

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

SCREW, 1/4 x 3/4 slt-truss-hd

1шт.

5

589980R2

CLIP

CLAMP, condenser tube, Serial Range: -12000

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

SCREW, 1/4 x 3/4 slt-truss-hd

1шт.

6

111218C1

RESERVOIR

FILTER, receiver, Serial Range: -12000

1шт.

6

111218C1GV

RECEIVER-DRYER

FILTER, receiver, Serial Range: -12000

1шт.

6

118304C1

RESERVOIR

FILTER, receiver, Start Serial: 12001

1шт.

7

195912C2

SUPPORT

SUPPORT ASSY, filter dryer

1шт.

8

195915C1

BOLT,1/4" - 20 x 5.2", Class 5

BOLT, receiver filter

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

20893R1

WASHER

WASHER, .344 x 1.000 x .105

1шт.

9

187838C1

HOSE

HOSE ASSY, dryer to cab, 220 in., Serial Range: -12000

1шт.

9

183906C1

HOSE,7.92mm ID x 5410.2mm L

HOSE ASSY, dryer to cab, 220 in., includes ref. no. 32, Start Serial: 12001

1шт.

10

193265C1

HOSE

HOSE ASSY, condenser to compressor, 48 in., Serial Range: -12000

1шт.

10

183910C1

A/C HOSE

HOSE ASSY, condenser to compressor, 48 in., includes ref. no. 32, Start Serial: 12001

1шт.

11

159940C1

BAR

BAR, air chute tube opening cover

2шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

SCREW, 1/4-14 x 1/2 p/hds tap

1шт.

12

111266C1

SWITCH, A/C HIGH PRE

SWITCH, high pressure

1шт.

13

399419R1

VALVE

VALVE ASSY, service, Serial Range: -12000

1шт.

Ref.13 Is discharge 1/2".

1шт.

13

183903C91

VALVE

VALVE ASSY, service, includes ref. nos. 29 & 30, Start Serial: 12001

1шт.

14

175086C1

LOCK VALVE

VALVE ASSY, service, Serial Range: -12000

1шт.

Ref.14 Is Suction 5/8".

1шт.

14

183902C91

VALVE

VALVE ASSY, service, includes ref. nos. 29 & 30, Start Serial: 12001

1шт.

15

143405C91

PULLEY

CLUTCH ASSY, compressor, includes ref. nos. 16, 17 and 18, replaces 111631C91

1шт.

1283257C1

WASHER

WASHER, clutch

1шт.

16

143407C1

COIL ASSY.

COIL ASSY, field, replaces 117822C1

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

BOLT, 1/4 x 1/2 flange lock

1шт.

17

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING, double row ball

1шт.

18

143406C1

PULLEY ASSY.

PULLEY ASSY W/BEARING, includes ref. no. 17, replaces 117820C1

1шт.

28598R1

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 znd p/t type 5

1шт.

19

874097C1

V-BELT,39.50" L

Compressor drive

1шт.

20

118469C1

GASKET

GASKET, service valve

2шт.

21

COMPRESSOR, air conditioner, for components refer to this group under compressor air conditioner

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT, 3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21403R1

WASHER

WASHER, .406 x 1.000 x .120

1шт.

22

196845C1

HOSE

HOSE ASSY, compressor to cab, 188 in., Serial Range: -12000

1шт.

22

183908C1

HOSE,12.5mm ID x 4775.2mm L

HOSE ASSY, compressor to cab, 188 in., includes ref. no. 31, Start Serial: 12001

1шт.

23

175754C2

BRACKET

BRACKET ASSY, compressor mount

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

BOLT, 3/8 x 3-1/4 type 5

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

NUT, 3/8 PHC jam type 8

1шт.

26257R1

SET SCREW

SCREW, 3/8 x 3 znd sq-hd cone pt set

1шт.

21403R1

WASHER

WASHER, .406 x 1.000 x .120

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

24

154695C2

CLAMP

CLAMP, hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

25

394271R1

CLIP

CLIP, hose support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

26

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE, hose support

1шт.

26

702093C1

CABLE TIE

CABLE STRAP TIE, hose support

1шт.

27

167955C2

SEAL

SEAL, hose

1шт.

28

112745

GROMMET,7/8" ID x 1 1/4" Groove Dia

GROMMET, air conditioner hose

1шт.

28

81986R1

GROMMET

GROMMET, hose, 1 in.

1шт.

28

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

GROMMET, air cond hose, 3/4 ID

1шт.

28

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

GROMMET, wair cond hose, 1.0 ID

1шт.

29

118185C1

CAP ASSY.

CAP ASSY, valve stem

1шт.

30

118188C1

CAP

CAP, seal

1шт.

31

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, hose, Start Serial: 12001

1шт.

32

359158R1

O-RING,0.301" ID x 0.07" Width

O-RING, -011, 70 Duro, .031" ID x .070" Thk, Hose, Start Serial: 12001

3шт.

33

375271R1

O-RING,0.426" ID x 0.07" Width

O-RING, hose, Start Serial: 12001

2шт.

34

1301387C2

CLIP

CLIP, heater & A/C hoses

8шт.

35

20990R1

PLUG

PLUG, 3/8-18 pln h/hd pipe, used for plugging holes in engine when combine is not equipped with heater

2шт.

36

245983C1

AIR CONDITIONER

WICK ASSY, compressor

1шт.
