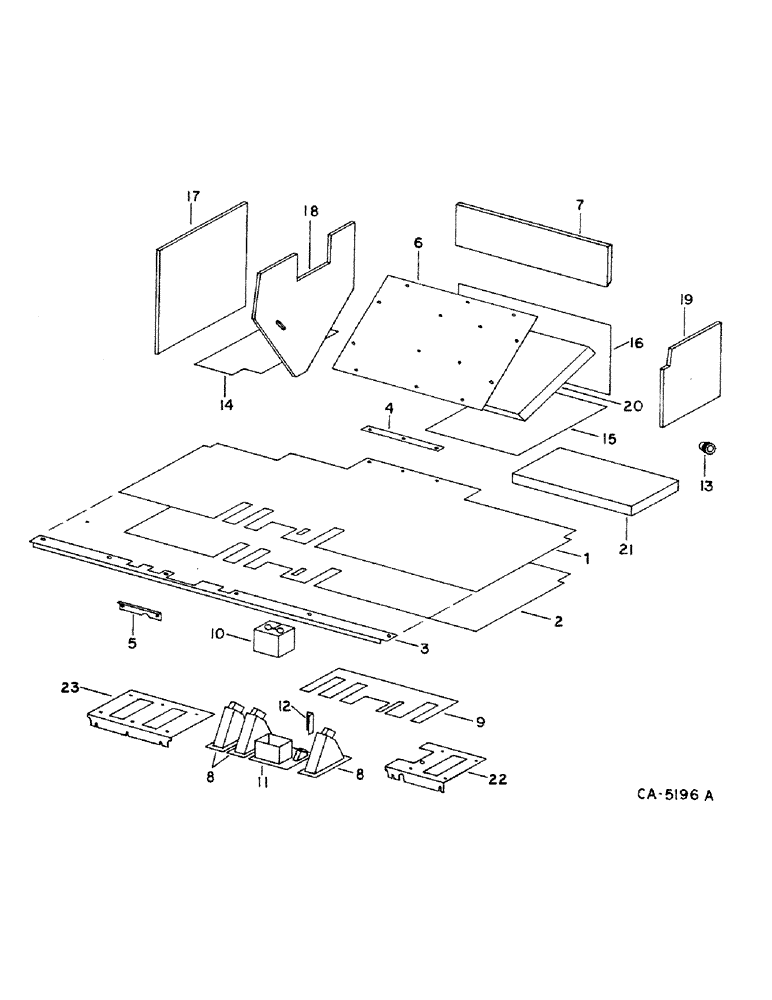

Запчасти Case IH 1460 (13-14) - SUPERSTRUCTURE, SOUND PACKAGE, OPERATORS CAB (05) - SUPERSTRUCTURE

1

195541C1

INSULATOR

floor mat sound

1шт.

2

195540C2

MAT

floor

1шт.

3

195538C2

SUPPORT

floor mat front

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

4

198990C1

BAR

floor mat rear hold down

1шт.

27294R1

SELF-TAP SCREW,Hex Washer, 1/4" - 14 x 3/4"

SCREW, 1/4-14 x 3/4 PHC h/whd tap

1шт.

5

193063C1

ANGLE

steering column seal, Serial Range: -1500

1шт.

6

195542C1

MAT

cover center support

1шт.

7

195543C1

INSULATOR

center rear support

1шт.

8

198074C1

ISOLATOR

INSULATOR, foot pedal

3шт.

9

195545C1

SUPPORT

boot retainer, Serial Range: -1500

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

10

196585C1

STRIP

steering pedestal, Serial Range: -22000

1шт.

10

1324844C1

SEAL

steering pedestal, replaces 1301263C2, Start Serial: 22001

1шт.

11

198075C1

INSULATOR

steering pedestal

1шт.

12

187581C1

ANGLE

steering pedestal boot

1шт.

13

198820C1

GROMMET

plug, note

1шт.

13

198821C1

GROMMET,3.18mm ID x 41.1mm OD x 26.9mm Thk

unloader cable, 1/8 ID

1шт.

Refer to group 8 under clips, grommets and strips for applications

1шт.

13

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 1/4 ID

2шт.

Refer to group 8 under clips, grommets and strips for applications

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 3/8 ID

6шт.

Refer to group 8 under clips, grommets and strips for applications

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 1/2 ID

1шт.

Refer to group 8 under clips, grommets and strips for applications

1шт.

13

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 5/8 ID

3шт.

Refer to group 8 under clips, grommets and strips for applications

1шт.

13

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

cable seal, 1.0 ID

1шт.

Refer to group 8 under clips, grommets and strips for applications

1шт.

14

196587C7

INSULATOR

SHEET, floor sound RH

1шт.

15

196586C1

SHEET

floor sound center

1шт.

16

196599C1

LINING

SHEET, sound center filler

1шт.

17

196596C1

SHEET

RH console sound outer, Serial Range: -22000

1шт.

17

1301219C2

SHEET

RH console sound outer, Start Serial: 22001

1шт.

18

196597C1

SHEET

RH console sound inner, Serial Range: -22000

1шт.

18

1301220C2

SHEET

RH console sound inner, Start Serial: 22001

1шт.

19

196598C2

SHEET

LH console sound outer

1шт.

20

196602C1

SHEET

center sound

1шт.

21

196604C1

SHEET

manual box sound

1шт.

22

187882C1

PLATE

SUPPORT, foot pedal boot hold down, LH, Start Serial: 1501

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

187883C2

SUPPORT

foot pedal boot hold down, RH, Start Serial: 1501

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

929460C1

FLUID

ADHESIVE, center mat and rear insulation

1шт.
